Product Description
Product name: Wall mounted static var generator power quality improvement module reactive compensation
The principle of the SVG is very similar to that of Active Power Filter, as demonstrated in the picture below. When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. SFR-SVG is also capable of correcting load imbalance.
Product Paramenters
Function
Technical
parameters
Wall mounted
SFR-SVG-(30~50)/B
Rack mounted
SFR-SVG-(30~200)/M

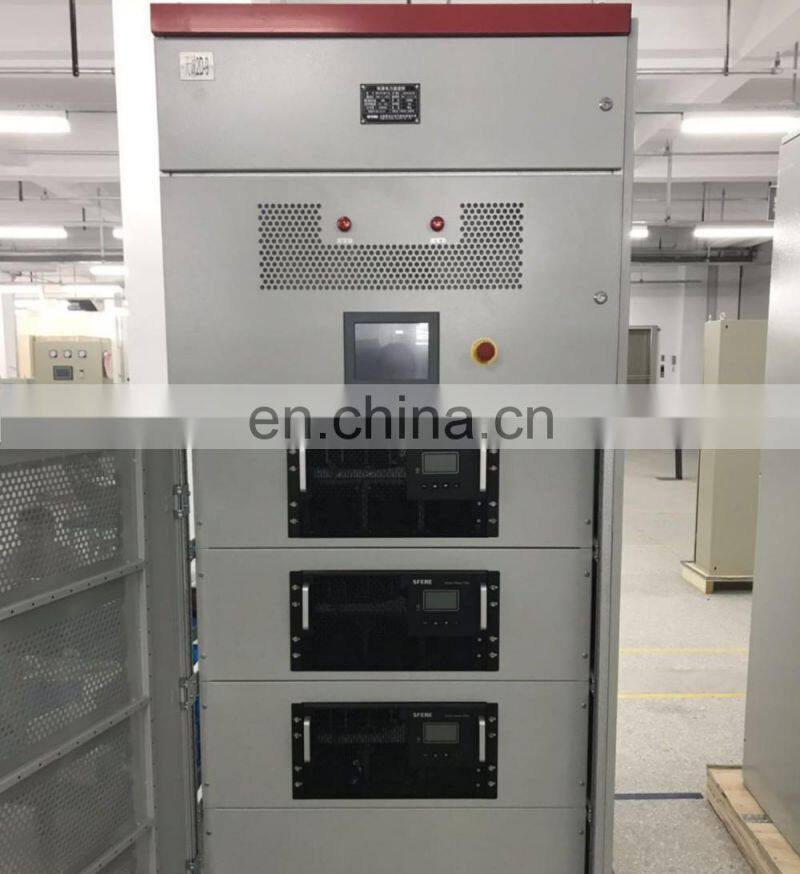

Cabinet type
SFR-SVG-(100~500)/G






Electrical
characteristics
Rated voltage(V)
AC380V±15%, AC690V±15%
Working frequency(Hz)
50Hz±5%
Rated compensation capacity(KVA)
30
50
30                    50
75                    100
150                  200
100~500
Scope of reactive adjustment
Continuously adjustable from rated induced to rated capacitive
Response time
5ms
Loss of active power
<3% rated module power
Over-load capability
120%
Multi-set running mode
Parallel running
Mean time between failures
≥100,000hours





Local protection
Switching frequency
Average 10kHz
Control algorithm
compensation algorithm of screening vector of frequency domain possessing self-adaptation capability
Controller
Digital signal processor(DSP)
Communication
capability
Adopting Modbus remote communication protocol,communication interface RS485/232 and CAN bus
Control connection
Optical fiber or electrical connection



Structural characteristics
W x H x D(mm)
510 x 218 x 694
340 x 629 x 709
Refer to capacity of cabinet
Protection grade
IP21 orcustomized according to the user' s demand
Color
RAL7035(light gray),
Cooling mode
Forced air cooling
Overall structure
Floor type
Installation mode
Indoor installation; optional fixing modes and optional cable incoming modes



Environmental conditions
Environmental temperature
-10~40℃
Storage temperature
-40~65℃
Relative humidity
5%-95%, no condensation
Altitude
≤1000m,1000-4000;according to national standard GB/T3859.2, for every increased 100m, the power is reduced by 1%
Electromagnetic
compatibility
Conforming to GB/T7250-2005
Model Selection
Transformer Capacity(kVA)
Three-phase Four-wire
Three-phase Three-wire
200
SFR-SVG4-100/0.4 X 1
SFR-SVG3-100/0.4 X 1
250/315
SFR-SVG4-100/0.4 X 1
SFR-SVG3-100/0.4 X 1
400
SFR-SVG4-150/0.4 X 1
SFR-SVG3-200/0.4 X 1
500/630
SFR-SVG4-200/0.4 X 1
SFR-SVG3-300/0.4 X 1
800
SFR-SVG4-250/0.4 X 1
SFR-SVG3-400/0.4 X 1
1000
SFR-SVG4-300/0.4 X 1
SFR-SVG3-500/0.4 X 1
1250
SFR-SVG4-400/0.4 X 1
SFR-SVG3-300/0.4 X 2
1600
SFR-SVG4-250/0.4 X 2
SFR-SVG3-400/0.4 X 2
2000
SFR-SVG4-300/0.4 X 2
SFR-SVG3-500/0.4 X 2
2500
SFR-SVG4-400/0.4
SFR-SVG3-400/0.4 X 3
