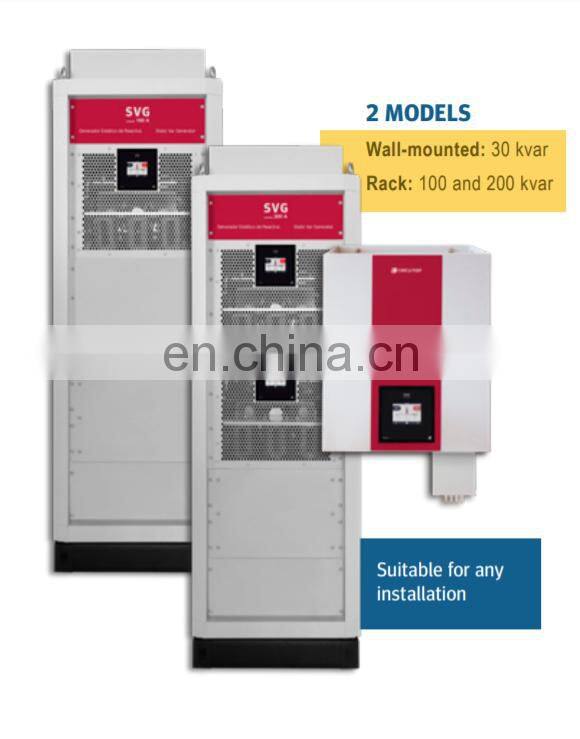

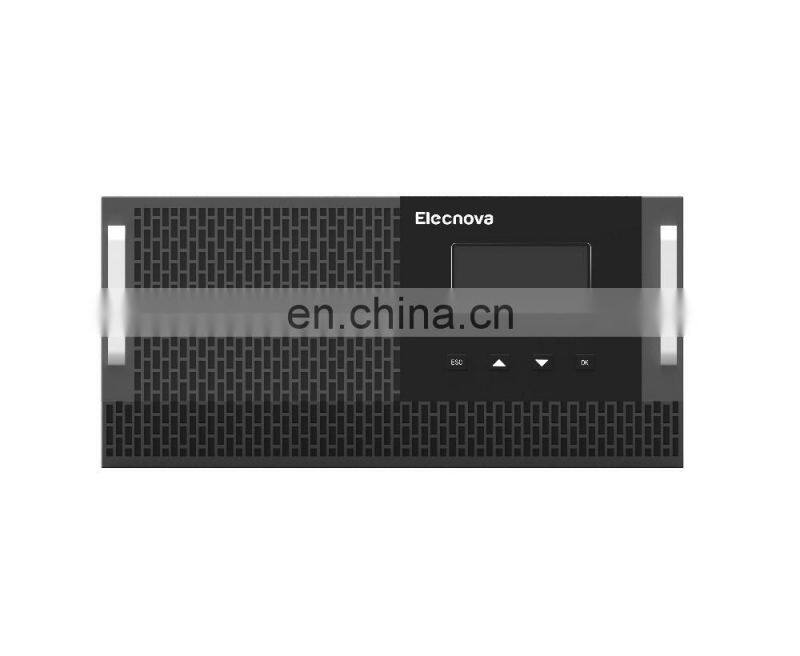

Product name：SFR-SVG reactive power compensation module 100 kvar super capacitor bank

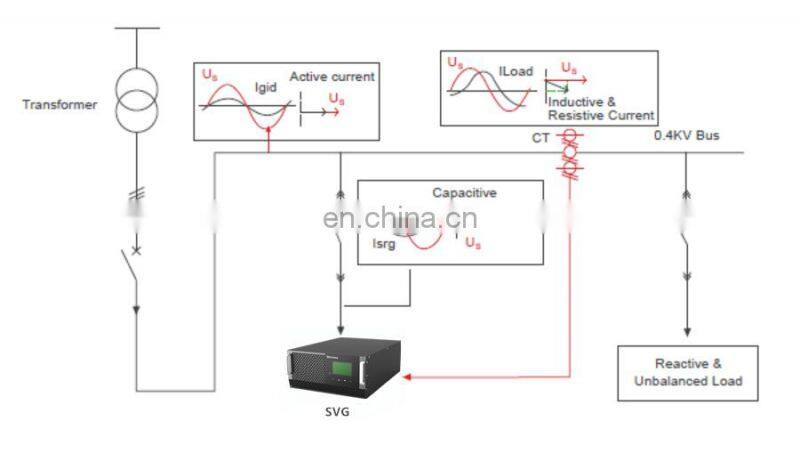

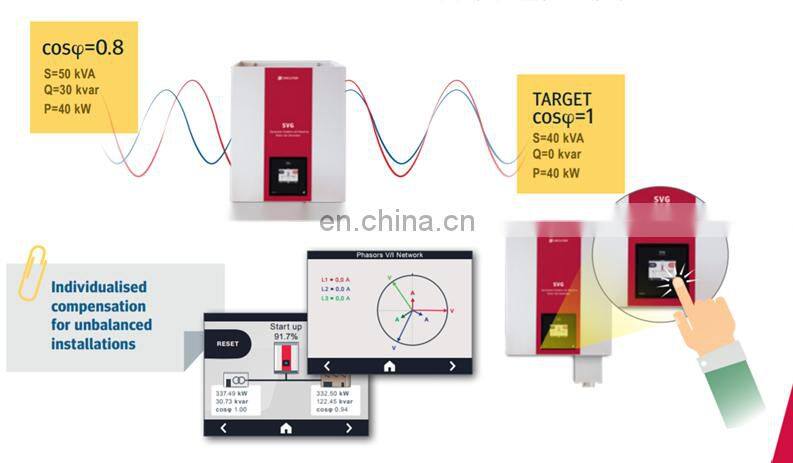

The principle of the SVG is very similar to that of Active Power Filter, as demonstrated in the picture below. When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. SFR-SVG is also capable of correcting load imbalance.
Application
Data centers
UPS systems
Renewable power generation
(e.g. photovoltaics and wind turbines)
Industrial production machines
Electrical welding systems
Plastic industry machinery
(e.g. extruders, injection molders)
UPS systems
Renewable power generation
(e.g. photovoltaics and wind turbines)
Industrial production machines
Electrical welding systems
Plastic industry machinery
(e.g. extruders, injection molders)
Product Paramenters
Function | Technical parameters | Wall mounted SFR-SVG-(30~50)/B | Rack mounted SFR-SVG-(30~200)/M | Cabinet type SFR-SVG-(100~500)/G | |||
Electricalcharacteristics | Rated voltage(V) | AC380V±15%, AC690V±15% | |||||
Working frequency(Hz) | 50Hz±5% | ||||||
Rated compensation capacity(KVA) | 30 50 | 30 50 75 100 150 200 | 100~500 | ||||
Scope of reactive adjustment | Continuously adjustable from rated induced to rated capacitive | ||||||
Response time | 5ms | ||||||
Loss of active power | <3% rated module power | ||||||
Over-load capability | 120% | ||||||
Multi-set running mode | Parallel running | ||||||
Mean time between failures | ≥100,000hours | ||||||
Local protection | Switching frequency | Average 10kHz | |||||
Control algorithm | compensation algorithm of screening vector of frequency domain possessing self-adaptation capability | ||||||
Controller | Digital signal processor(DSP) | ||||||
Communicationcapability | Adopting Modbus remote communication protocol,communication interface RS485/232 and CAN bus | ||||||
Control connection | Optical fiber or electrical connection | ||||||
Structural characteristics | W x H x D(mm) | 510 x 218 x 694 | 340 x 629 x 709 | Refer to capacity of cabinet | |||
Protection grade | IP21 orcustomized according to the user' s demand | ||||||
Color | RAL7035(light gray), | ||||||
Cooling mode | Forced air cooling | ||||||
Overall structure | Floor type | ||||||
Installation mode | Indoor installation; optional fixing modes and optional cable incoming modes | ||||||
Environmental conditions | Environmental temperature | -10~40℃ | |||||
Storage temperature | -40~65℃ | ||||||
Relative humidity | 5%-95%, no condensation | ||||||
Altitude | ≤1000m,1000-4000;according to national standard GB/T3859.2, for every increased 100m, the power is reduced by 1% | ||||||
Electromagneticcompatibility | Conforming to GB/T7250-2005 | ||||||
