Product Description
Product Name: Sfere720 energy measuring and power quality analyzer PQA
Sfere720 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system integration with different smart electricity distribution system and energy management system, and sharing monitoring data andenergy data.
FEATURES
8MB memory, 32,000pcs record
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: TFT
Modular design: 12 optional modulars available
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: TFT
Modular design: 12 optional modulars available

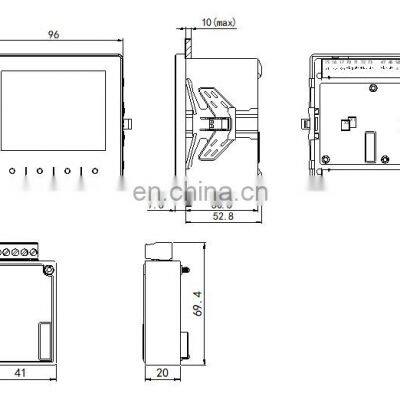

2) Take off the supporting clips of the meter;
3) Insert the meter into the cutout;
4) Insert and push the supporting clips to fix the meter.
Technical parameters
Display Mode | Sfere 720: LCD, Sfere720:TFT | |
V/A | 0.2% | |
P/Q/S/PF | 0.2% | |
F | ±0.01Hz | |
±kWh | Class 0.2S | |
±kvar | Class 2 | |
Rated value | AC 100V/ 380V | |
Overload | Continuous: 1.2Vn Instantaneous: 2Vn/1010s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Rated value | AC 1A/5A | |
Overload | Continuous: 1.2In Instantaneous: 2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20mΩ | |
Auxiliary Supply | Working range | AC 80~270V 50/60Hz, DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485, Modbus-RTU, 2-wire, up to 38.4kbps | |
Energy Pulse Output | 1 photocoupler output, pulse width(80±20%)ms | |
Digital Input | 2 AC wet contact inputs, Isolation: 5kVAC | |
Relay Output | 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC | |
Operating temperature | -25℃~70℃ | |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kVAC | |
IP Degree | Front IP64, Rear IP20 |
Application
■ Data Acquisition
■Energy Management
■Remote Power Monitoring
■Smart building
■Panel Meter
Production Process
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
