Sfere720 Powerline Display PQA Energy Analyzer Power Quality Monitoring Device

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

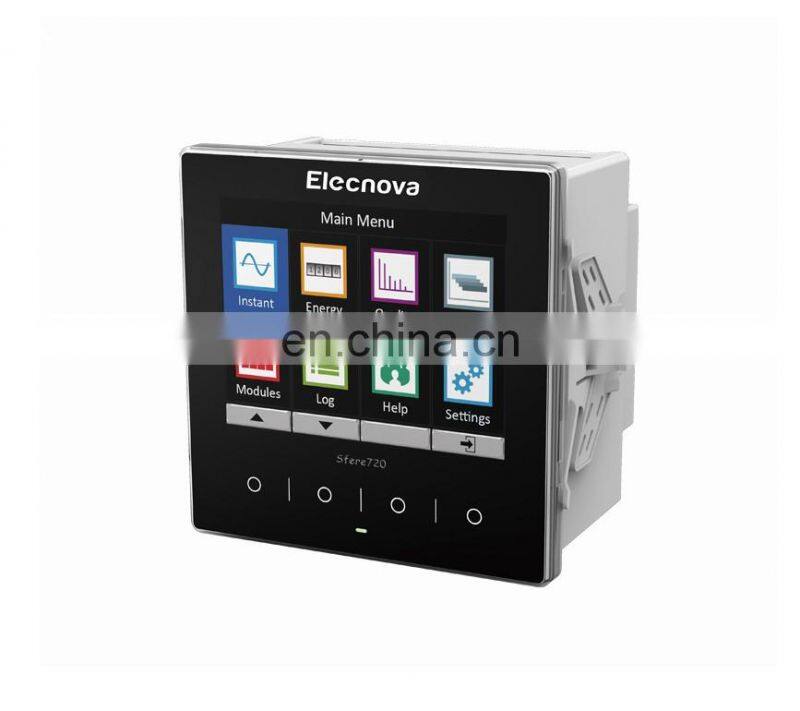

Product Name: Sfere720 powerline display PQA energy analyzer power quality monitoring device

Sfere720 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system integration with different smart electricity distribution system and energy management system, and sharing monitoring data andenergy data.

FEATURES

■ Energy metering：Bi-directional energy
■ Accuracy: 0.2S
■ Communication:Modbus-RTU/TCP, Profibus-DP
■ Harmonics: up to 63rd
■ Display: LCD
■ Modular design: 15 optional modulars available

Specification

Display Mode		Sfere 720: LCD, Sfere720:TFT
Accuracy	V/A	0.2%
		P/Q/S/PF	0.2%
		F	±0.01Hz
		±kWh	Class 0.2S
		±kvar	Class 2
Voltage Input	Rated value	AC 100V/ 380V
		Overload	Continuous: 1.2Vn Instantaneous: 2Vn/1010s
		Burden	≤0.1VA(per phase)
		Impedance	≥1.7MΩ
		Frequency	45Hz~65Hz
Current Input	Rated value	AC 1A/5A
		Overload	Continuous: 1.2In Instantaneous: 2In/5s
		Burden	≤0.2VA(per phase)
		Impedance	≤20mΩ
Auxiliary Supply	Working range	AC 80~270V 50/60Hz, DC 100~350V
Auxiliary Supply		Consumption	≤5VA
Communication Port		RS485, Modbus-RTU, 2-wire, up to 38.4kbps
Energy Pulse Output		1 photocoupler output, pulse width(80±20%)ms
Digital Input		2 AC wet contact inputs, Isolation: 5kVAC
Relay Output		2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC
Environment	Operating temperature	-25℃~70℃
		Storage temperature	-30℃~80℃
		Relative humidity	≤93%
		Altitude	≤2500m
Insulation		≥2kVAC
IP Degree		Front IP64, Rear IP20

Recommend Products

Application

■ Data Acquisition

■Energy Management

■Remote Power Monitoring

■Smart building

■Panel Meter

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or
by negotiated for the both parties.
