Home > Products > Sensor > KS-C2 series NPN color sensor switch KS-C2G KS-C2W KS-C2R KS-C2B KS-C2RG KS-C2WG KS-C2GB, 10-30VDC NPN PNP Color mark sensor
KS-C2 series NPN color sensor switch KS-C2G KS-C2W KS-C2R KS-C2B KS-C2RG KS-C2WG KS-C2GB, 10-30VDC NPN PNP Color mark sensor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
4 Digital Red Green Blue LED Industrial Tachometer RPM Speed Panel Meter With Proximity Switch Sensor 12V Measure range 10-9999
-
Inductive Proximity Sensor SN04-N SN04-P NPN 3WIRE NO Detection distance 4MM DC 6-36V Proximity Switch sensor switch
-
AS-10 10A Photoswitch Sensor Switch Auto On Off Photocell Street Light Controller AC/DC 12V 24V 220V
-
E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor 5VDC 6-36VDC Proximity Switch 3-80cm Detection Range Adjustable
-
Fotek Proximity Sensor Switches PL-05N/P PS-05N/P NPN out DC10-30V NO,3 wire sensing distance 5mm
-
Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable
Product Description
Product Description
1.) parameter
KS-C2 series color sensor
finglaiOperating form and model number
| Current type | Operating form | Contact form | Model number | Remark | Related product |
| DC | NPN | NO+NC | KS-C2W | White light | |
| DC | NPN | NO+NC | KS-C2G | Green light | |
| DC | NPN | NO+NC | KS-C2R | Red light | |
| DC | NPN | NO+NC | KS-C2B | Blue light | |
| DC | NPN | NO+NC | KS-C2RG | Red, green light | |
| DC | NPN | NO+NC | KS-C2WG | White, green light | |
| DC | NPN | NO+NC | KS-C2WB | White, blue light | |
| DC | NPN | NO+NC | KS-C2GB | Green, blue light |
finglaiGeneral
| Model number | KS-C2 series |
| External dimensions | 26x63x60 |
| Sensing method | Coaxial reflex |
| Light source chromatogram | Red, green, blue, white |
| Light spot (color) | Φ0.5-Φ1.5 |
| Load current | <200mA |
| Detection distance | 10mm±2mm |
| Sensitivity adjustment | Adjustable |
| Supply voltage | 10-30Vdc±10% |
| Sensing object | Opaque object |
| Response frequency | 0.1-1ms |
| Light source | Infrared LED (660 nm) |
| Leakage current | N.P Type: 20mA max; A Type: 1.7mA max |
| Protection circuit | Reverse polarity protection, Surge suppressor, Short-circuit protection |
| Insulation resistance | 50 MΩ min. at 500 V DC between energized parts and case |
| Dielectric strength | 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case |
| Temperature influence | ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C |
| Voltage influence | ±10% max. of sensing distance in rated voltage range ±15% |
| IP Rating | IP67 |
| Material | Case: Aluminum die-cast (ABS); Sensing surface (lens): PMMA |
| Operating temperature | -30 to 65 °C (with no icing or condensation) |
| Operating humidity | Storage: 35% to 95% (without condensation) |

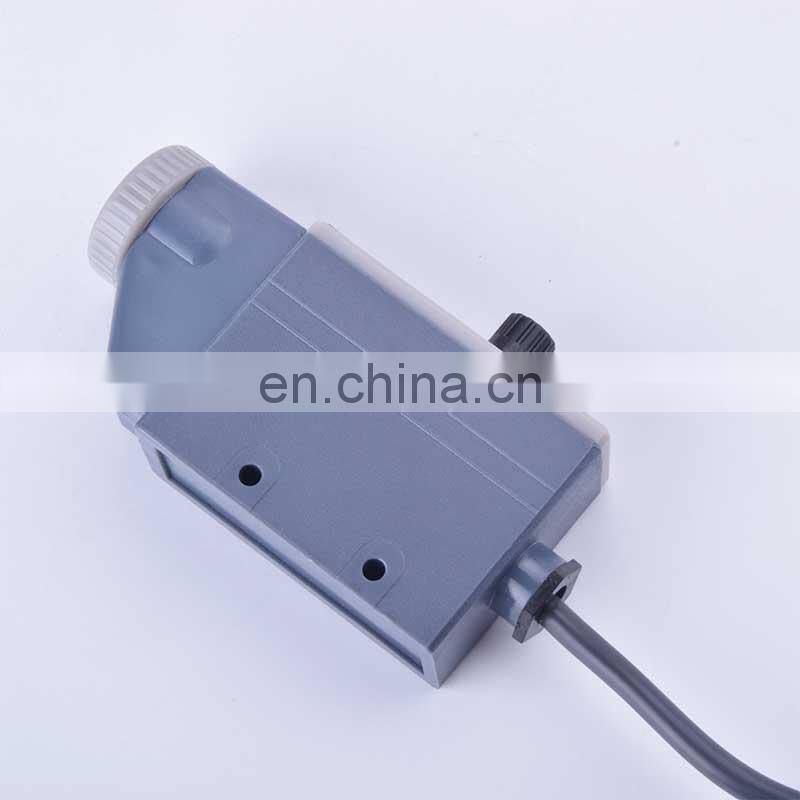

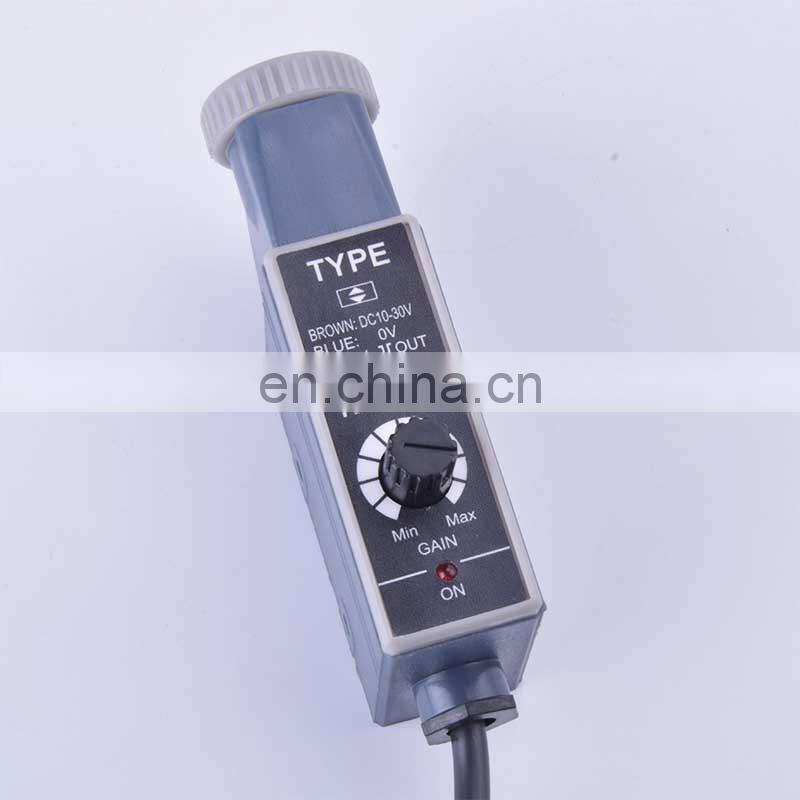

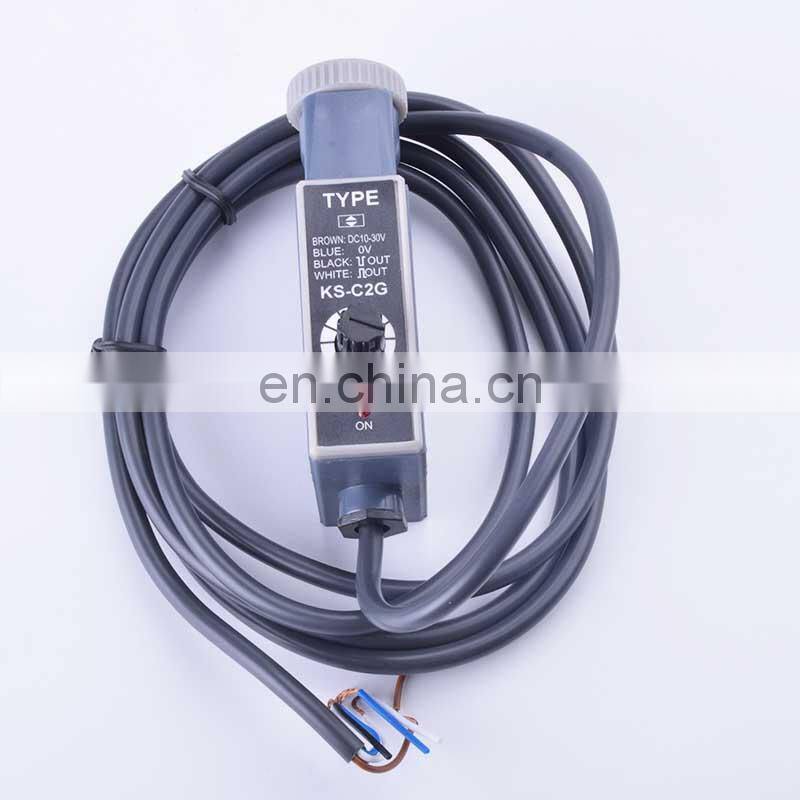

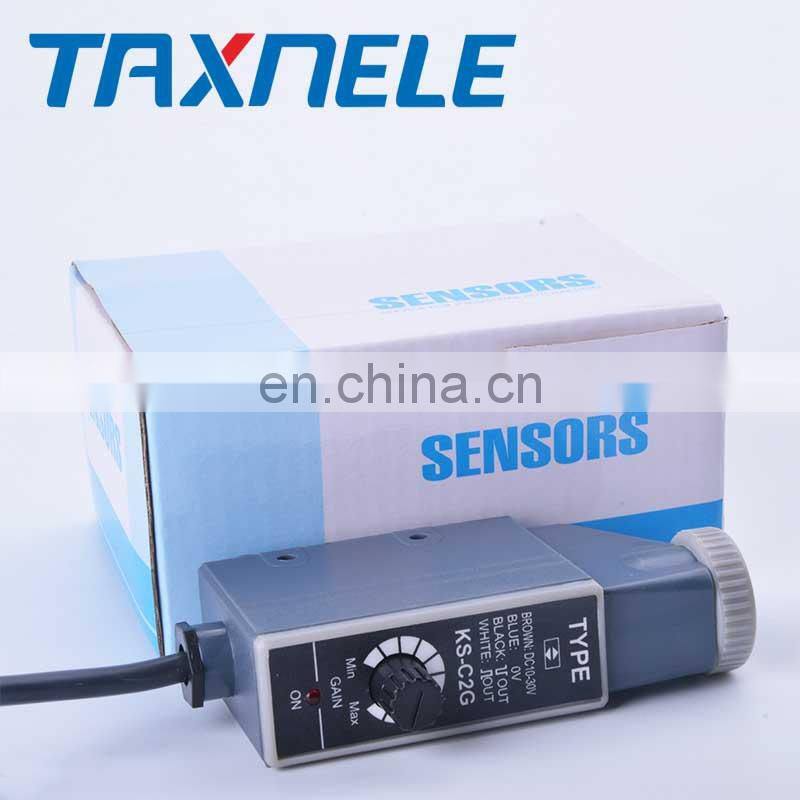

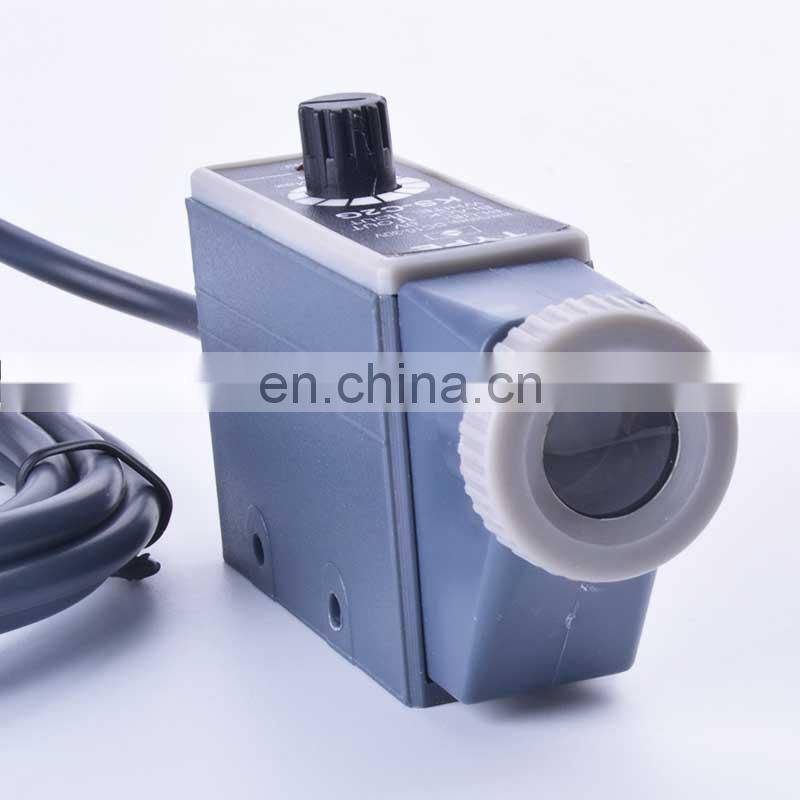

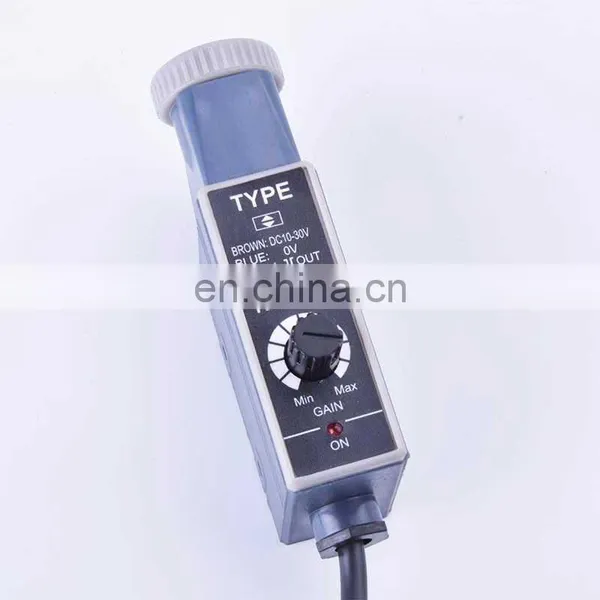

2.)product display
