HC-SR04 world Ultrasonic Wave Detector Ranging Module for Distance Sensor
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
TL-W5MC1 3 Wire Inductive Proximity Sensor Sensing Distance 5mm Detection Switch NPN DC 6-36V
-
YF-S201 1-30L/min 3Y Water Flow Sensor Flowmeter Hall Flow Sensor Water Control 1/2\" 2.0MPa
-
CCM5D 6V 12V 24V 5A PWM DC Motor Speed Controller Digital Display LED Motor Controller Speed Regulator
-
Adjustable 30A PWM 6-60V DC Motor Speed Controller Module DC LED Digital Display Speed Regulator Power Control Governor Switch
-
Automatic On Off Photo switch Auto Photocell street Light Switch DC AC 12V 24V 220V 50-60Hz 10A Photo Control Sensor Switch
-
AC 220V 4000W SCR Digital Control SCR Electronic Voltage Regulator Speed Control Dimmer Thermostat, Electric Motor Speed Control
Product Description
Parameters
This module has stable performance and accurate measurement distance. Module high-precision, blind (2cm) ultra-close, stable range is the success of this product to the market a strong basis! This module fully humility GH-311 anti-theft module.
(1) using IO trigger ranging,to at least 10us of high-level signal;
(2) the module automatically sends eight 40khz square wave, automatically detect whether there is signal return;
(3) there is a signal return, through the IO output of a high, high duration is the time from the launch to the return of ultrasound.
Test distance = (high time * sound speed (340M / S)) / 2;
This product is simple to use, a control mouth made a 10US above the high level, you can wait for the reception of high-level output. An output can be opened timer, when the mouth becomes low when you can read The value of the timer, this time for the distance of time, can be calculated from the distance. Such a continuous cycle of measurement, you can move the measured value
The module features:
| Working voltage | DC5V |
| Quiescent current | less than 2mA |
| Level output | High 5V |
| Level output | Bottom 0V |
| Sensing angle | not more than 15 degrees |
| Detection range | 2cm-450cm |
| High precision | up to 0.3cm |

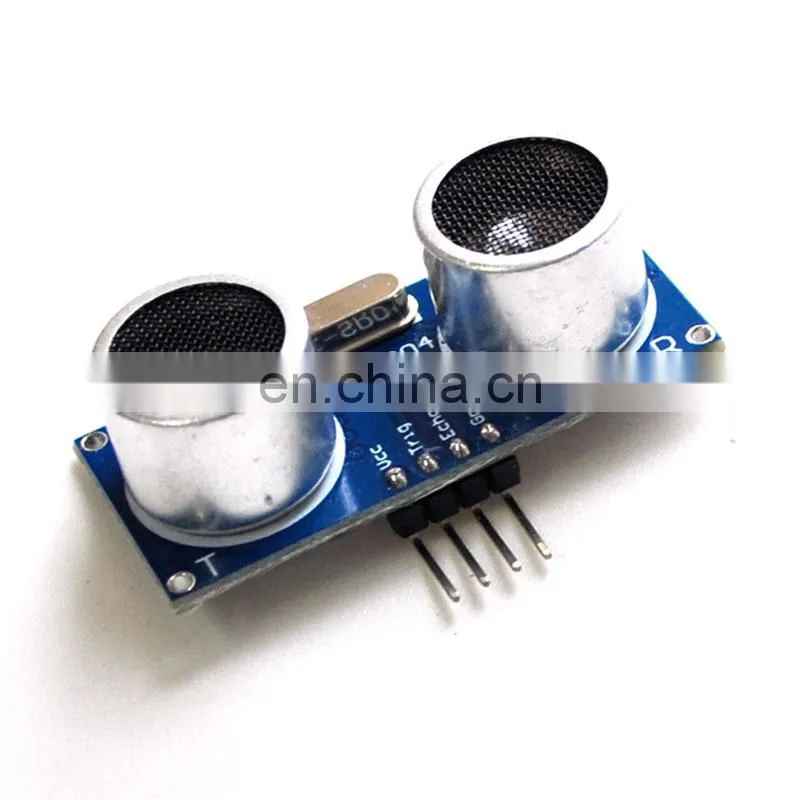

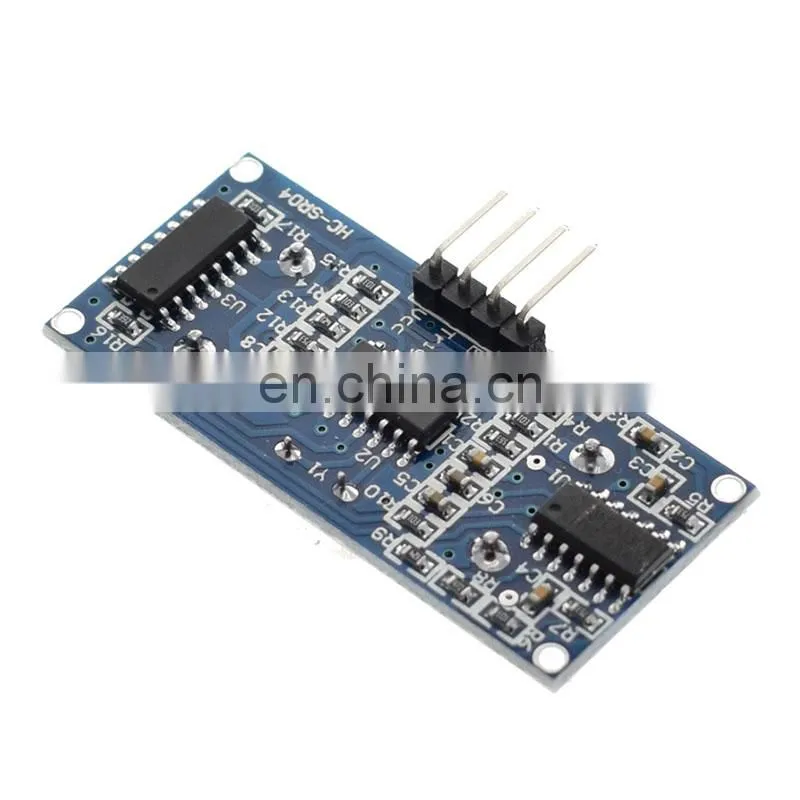

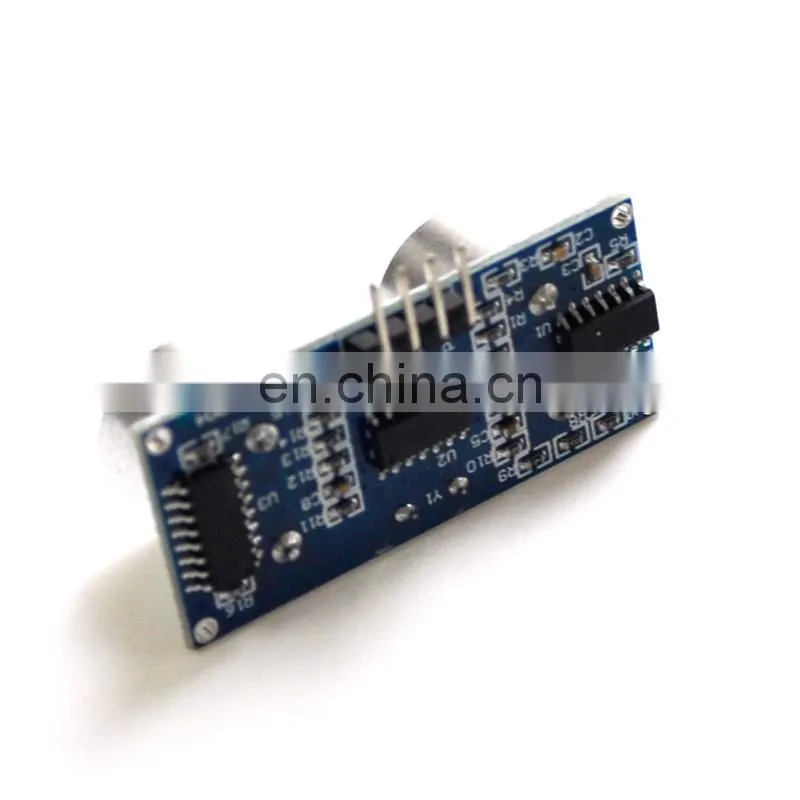

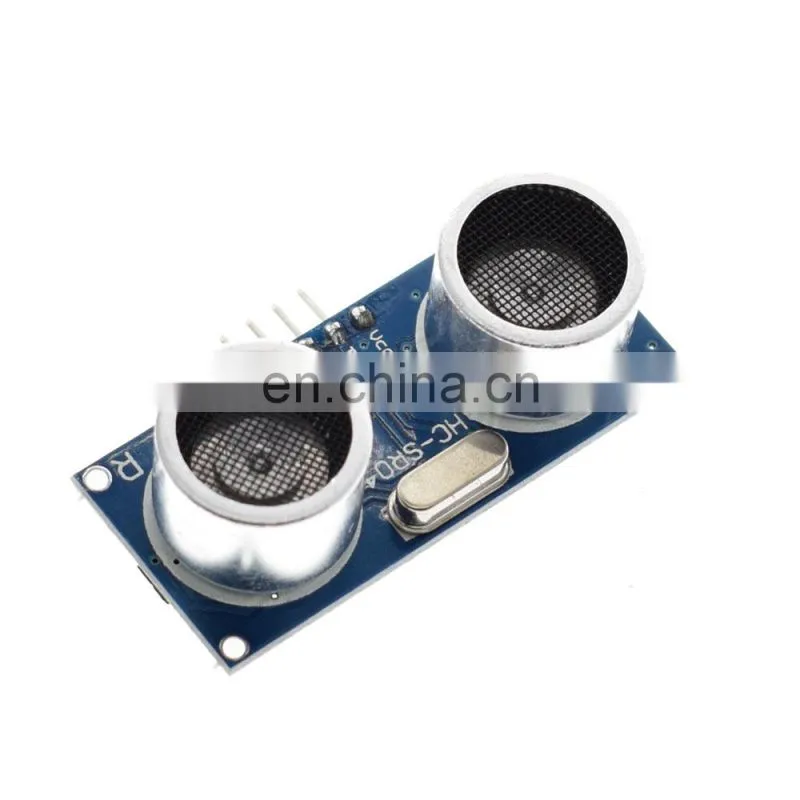

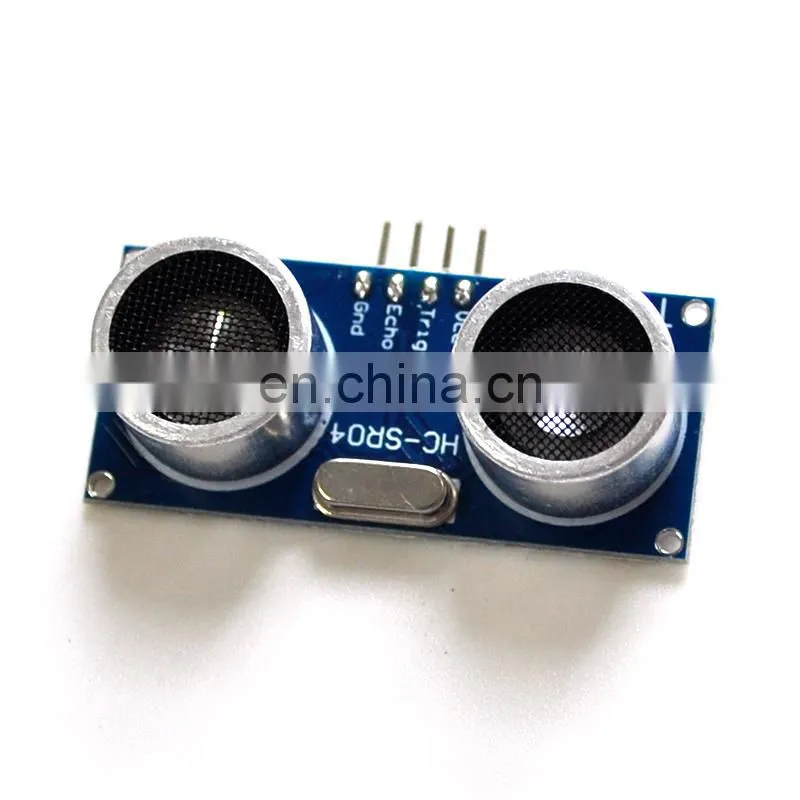

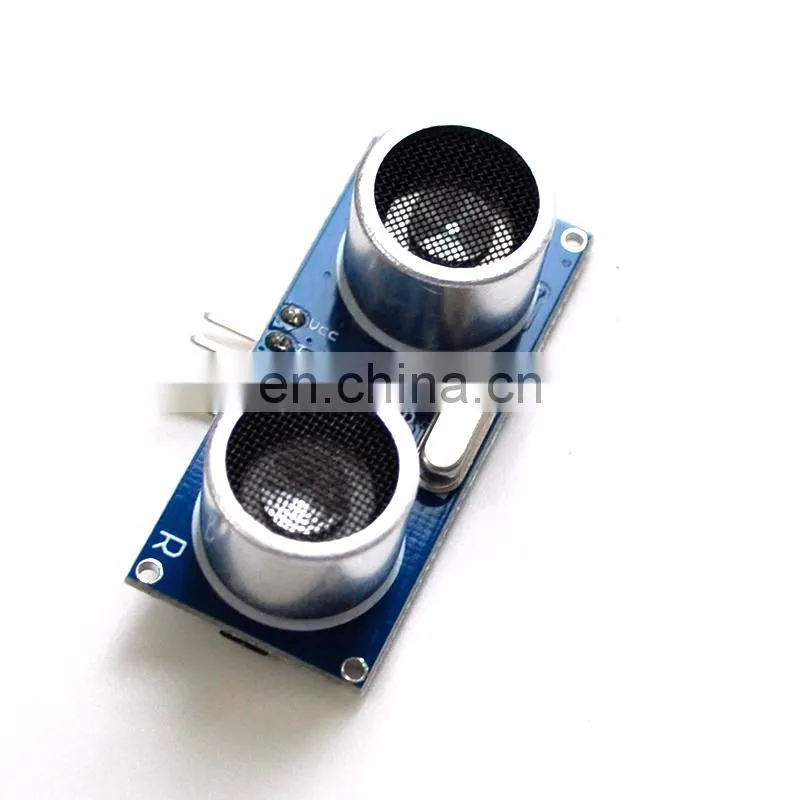

Product display
