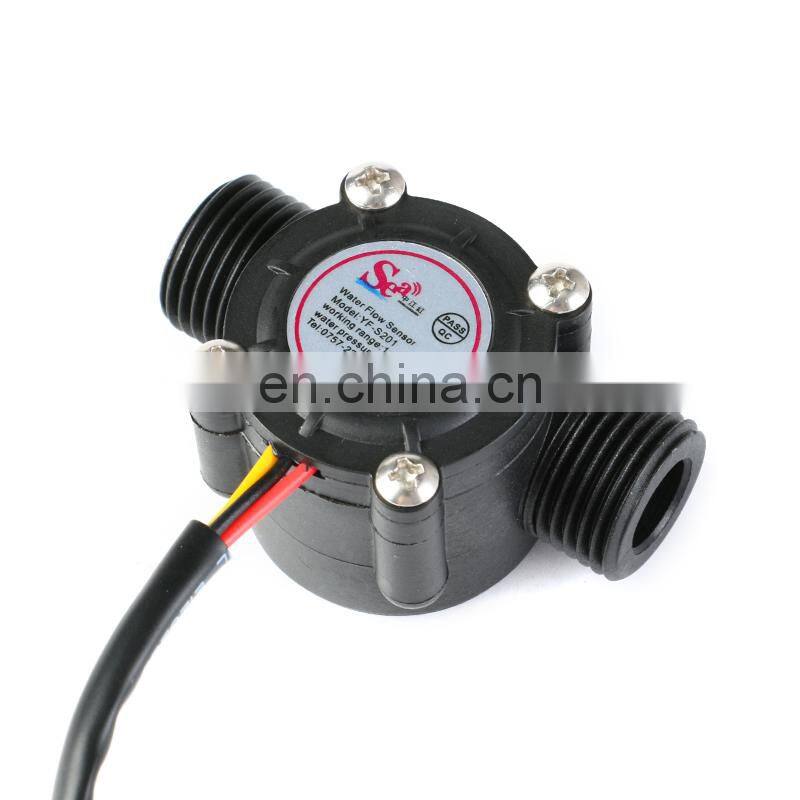

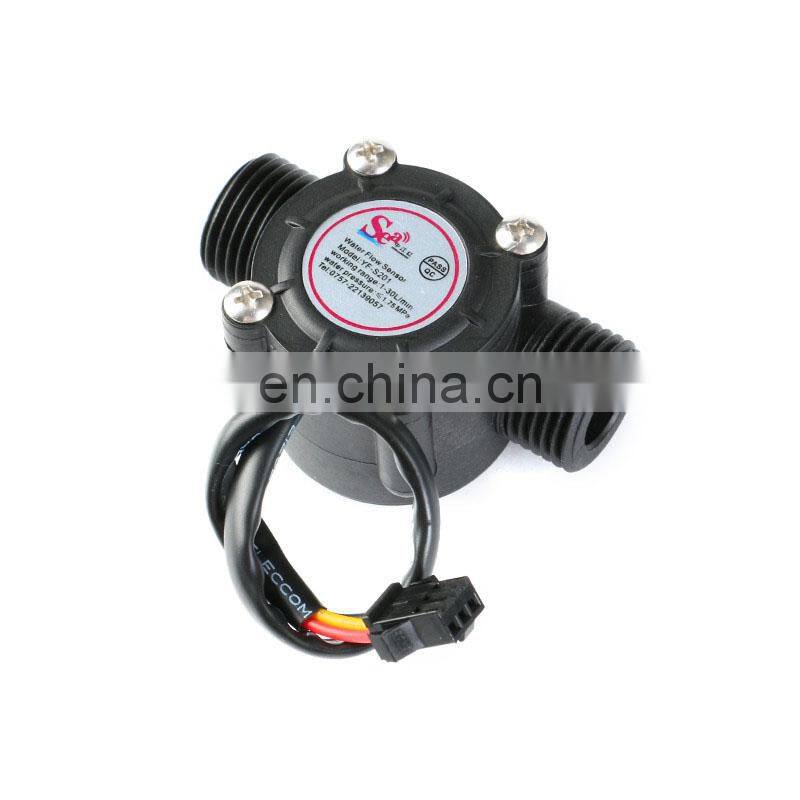

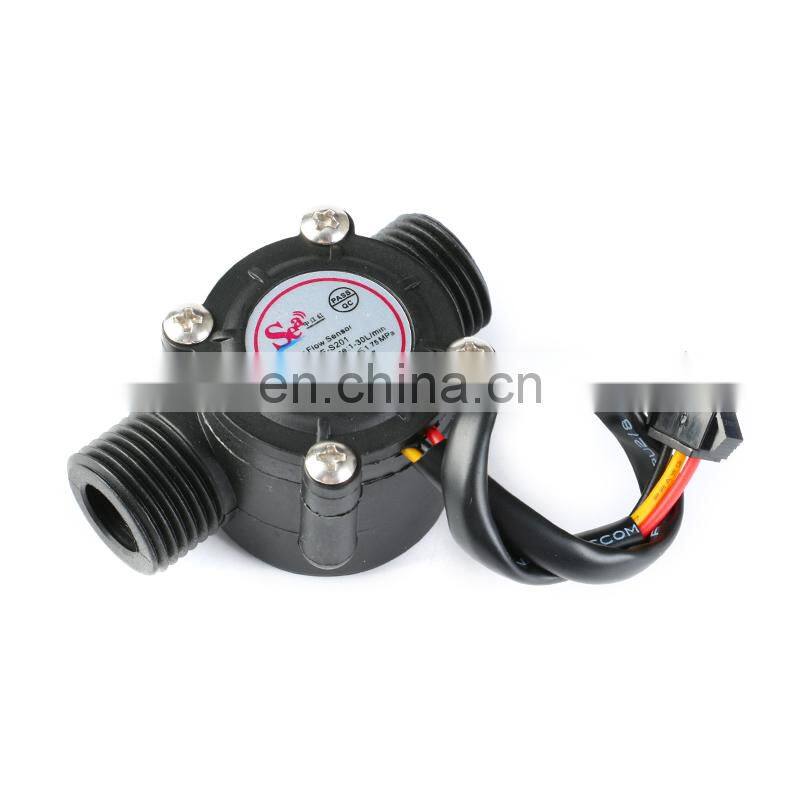

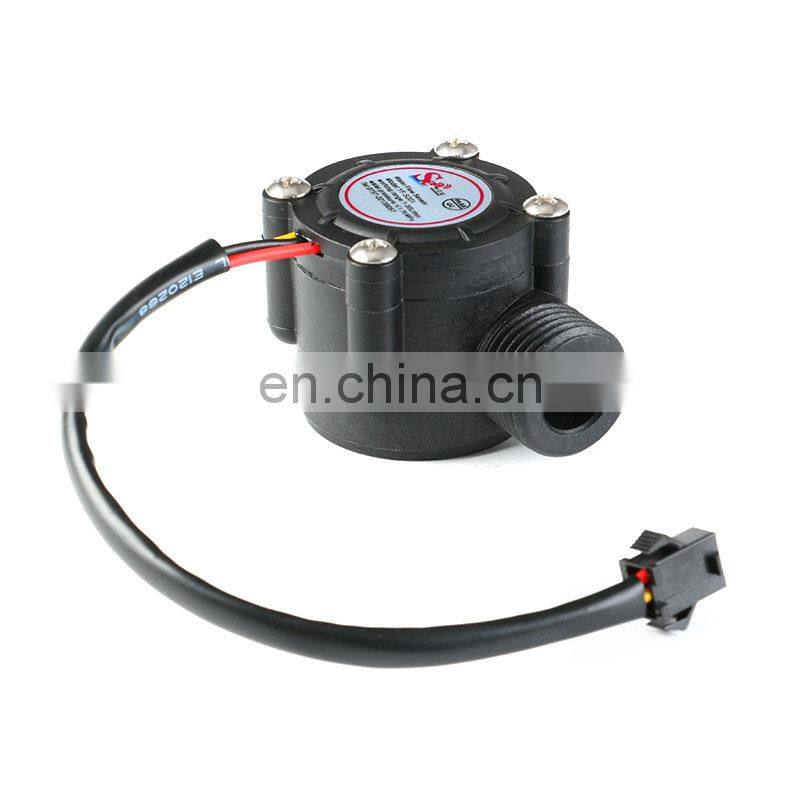

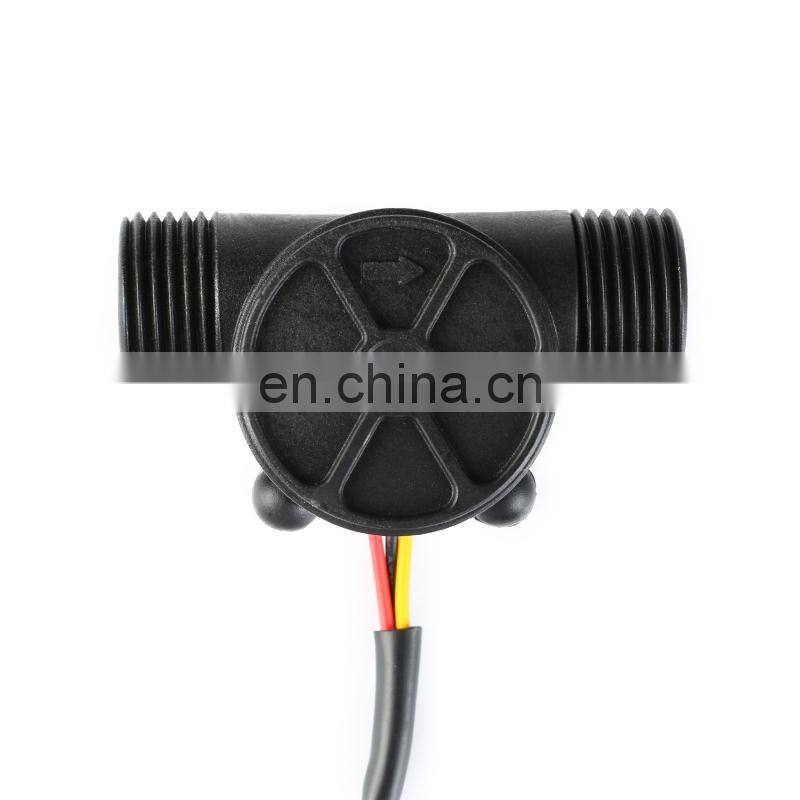

YF-S201 1-30L/min 3Y Water Flow Sensor Flowmeter Hall Flow Sensor Water Control 1/2" 2.0MPa
- 1000 per Month
- T/T Credit Card
-
CCM5D 6V 12V 24V 5A PWM DC Motor Speed Controller Digital Display LED Motor Controller Speed Regulator
-
Adjustable 30A PWM 6-60V DC Motor Speed Controller Module DC LED Digital Display Speed Regulator Power Control Governor Switch
-
Automatic On Off Photo switch Auto Photocell street Light Switch DC AC 12V 24V 220V 50-60Hz 10A Photo Control Sensor Switch
-
AC 220V 4000W SCR Digital Control SCR Electronic Voltage Regulator Speed Control Dimmer Thermostat, Electric Motor Speed Control
-
600 Pulse Incremental Photoelectric elevator Rotary Encoder 5-24V Coupling Optional NPN,AB Two Phase 600ppr LPD3806-600BM-G5-24C
-
400 Pulses Incremental Optical elevator Rotary Encoder AB Two-phase 5-24V Optical Rotary Encoder LPD3806-400BM-G5-24C
Product Description
Features:
Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
The impeller is inlaid with stainless steel beads for wear resistance.
The structure of the seal ring adopts force from top to bottom to prevent water leakage
The Hall element is imported, the line is filled with a waterproof seal rubber ring, and the inlet waterproof silicone strengthens the waterproof
All raw materials meet ROHS standards
High amplitude: ≥ 4.6V
Low amplitude: ≤ 0.5V
Electric strength: 1250V/min
Insulation resistance: ≥ 100MΩ
Hydrostatic pressure testing: ≤ 2.0Mpa
Specification:
The lowest rated working voltage | DC4.5 5V-24V |
Maximum operating current | 15mA (DC 5V) |
Working voltage range | DC 5~18V |
Load capacity | ≤ 10mA (DC 5V) |
Use temperature | ≤ 80°C |
Operating humidity range | 35%~90%RH (no frost) |
Allowing pressure | pressure 2.0Mpa |
Temperature | -25 ~ +80 °C |
External threads | 1/2" |
Outer diameter | 20mm |
Intake diameter | 9mm |
Outlet diameter | 12mm |
Package included: 1pc x Water Flow Sensor
