Home > Products > Sensor > E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor 5VDC 6-36VDC Proximity Switch 3-80cm Detection Range Adjustable
E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor 5VDC 6-36VDC Proximity Switch 3-80cm Detection Range Adjustable
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Fotek Proximity Sensor Switches PL-05N/P PS-05N/P NPN out DC10-30V NO,3 wire sensing distance 5mm
-
Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable
-
Gas Sensor Detector 02-A2 O2-A2 Oxygen Sensor
-
E3F-DS30C4 proximity switch DC 9-36V 3 Wire NPN IR Photoelectric Sensor diffuse photoelectric switch 30cm, photo sensor
-
Sensitive Auto Photo Switch On Off Photocell Street Light Switch DC AC 220V 10A Electronic Photoswitch Sensor Switch
-
E3JK-R4M1 AC90-250V square lens reflex photoelectric switch five lines Light Barrier Photoelectric Sensor, Photo Sensor
Product Description
Parameters
Description:
E18-D80NK is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to requirements. The sensor has many advantages such as long distance detection, low visible light interference, cheap price, easy assembly, and easy to use. It can be widely used in robot obstacle avoidance, pipeline line piece and many other automation products.
Application:
1. Automatic production line of goods counting equipment
2. Multi-function reminder
3. Take the maze robot
Technical Parameters:
1. Output Current DC / SCR / Relay Output: 100mA / 5V power supply
2. Current consumption DC <25mA
3. Response time <2ms
4. Pointing angle: < 15 , the effective distance 3-80 CM adjustable
5. Detection of objects: transparent or opaque body
6. Working temperature: -25 C ~ +55 C
7. Standard detection object: the following incandescent 3000LX below 10000LX sunlight
8. Housing material: plastic
Electrical Characteristics:
| Sensing range | 3-80cm |
| Sensing object | Translucency, opaque |
| Supply voltage | 5VDC/6-36VDC |
| Output operation | Normally open (O) |
| Output | DC three-wire system (NPN) |

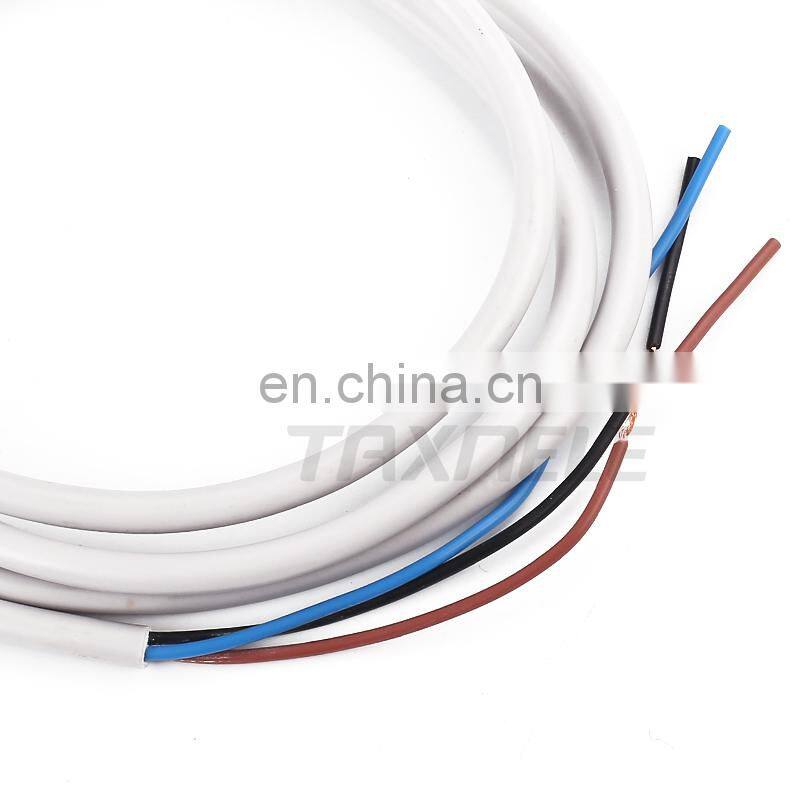

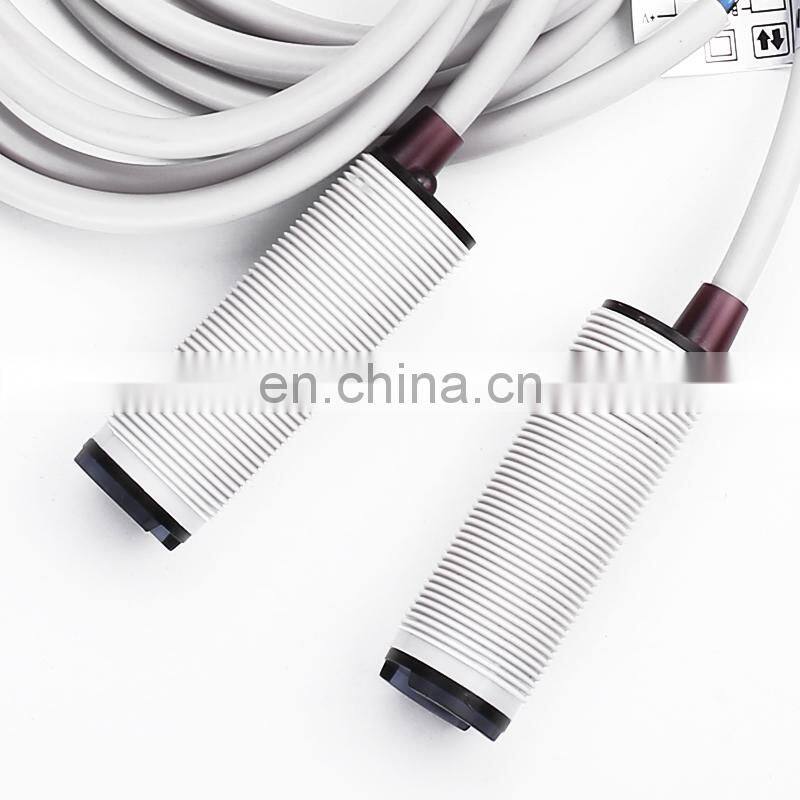

Product display
