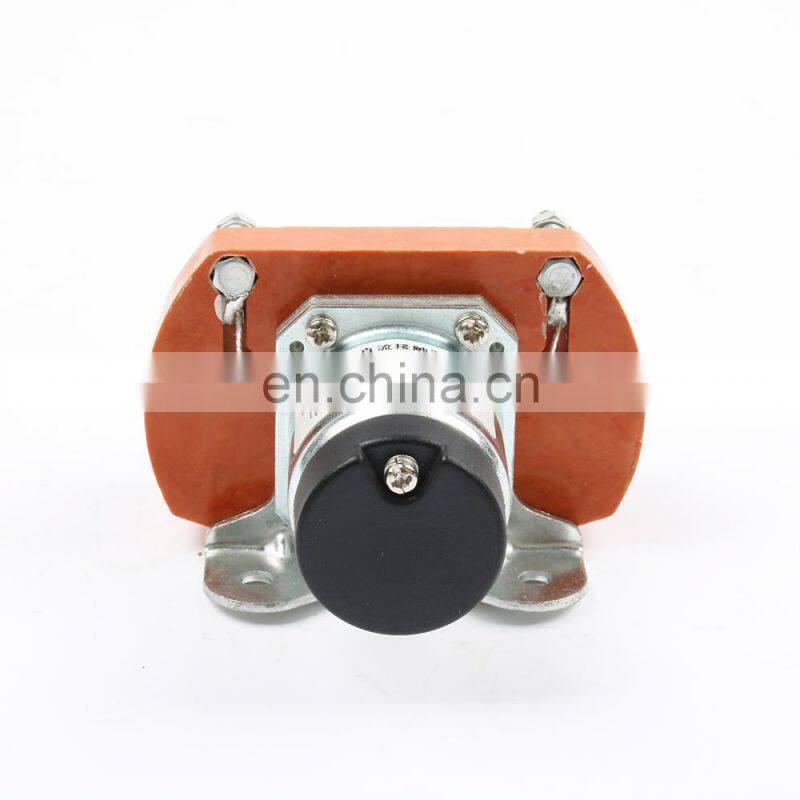

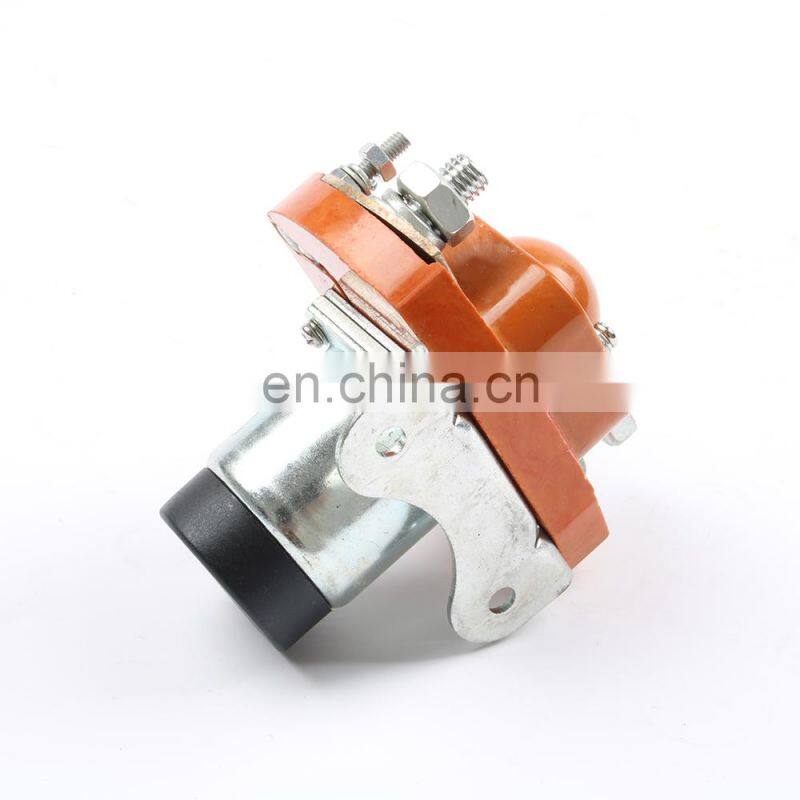

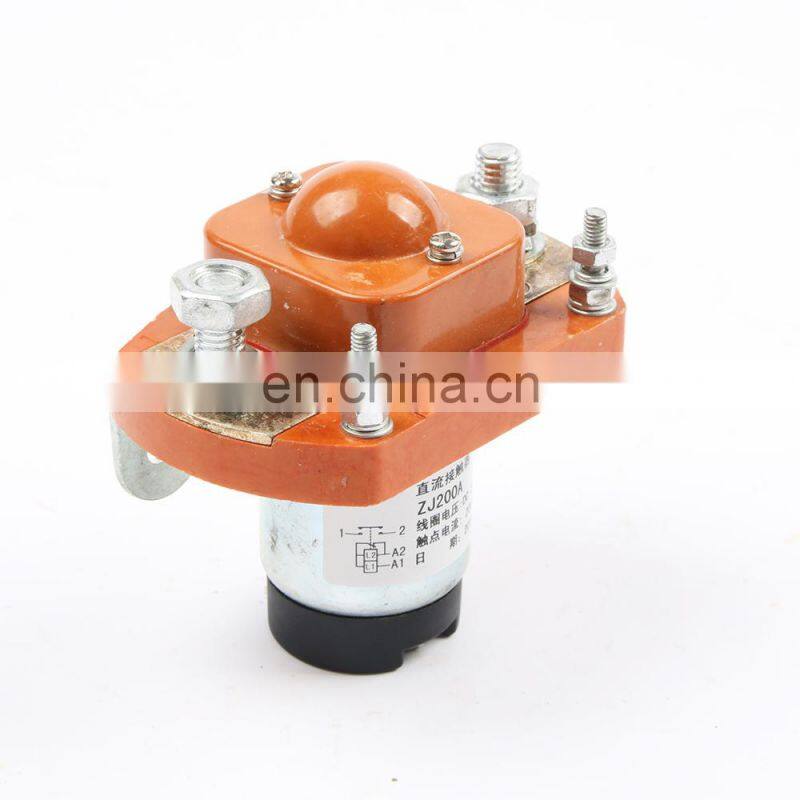

ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A

Yueqing Taixin Electric Co., Ltd.
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A thumbnail-1
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A thumbnail-2
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A thumbnail-3
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A thumbnail-4
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A thumbnail-5

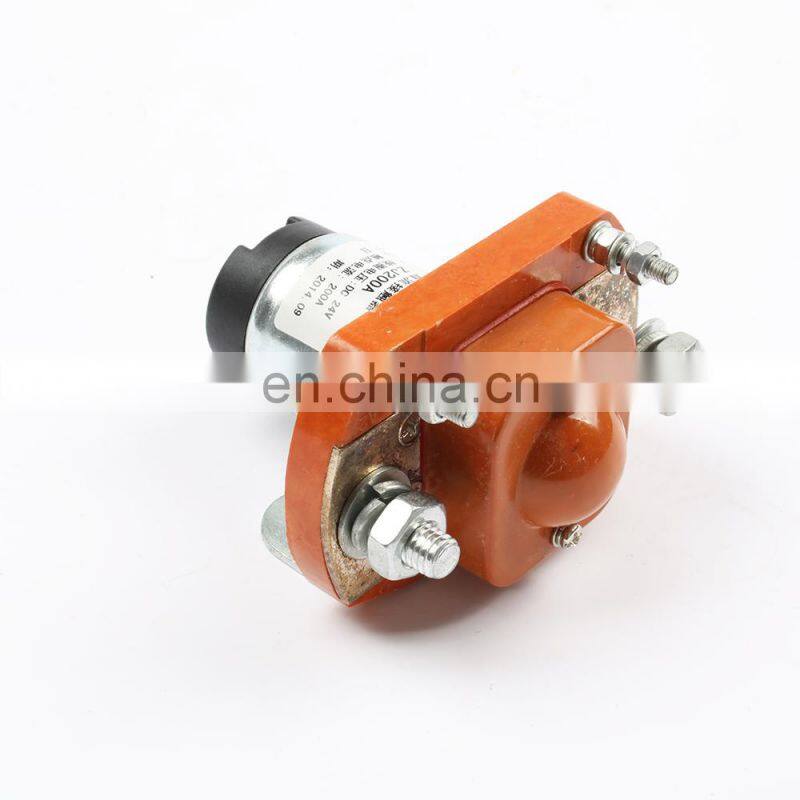

ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A photo-1

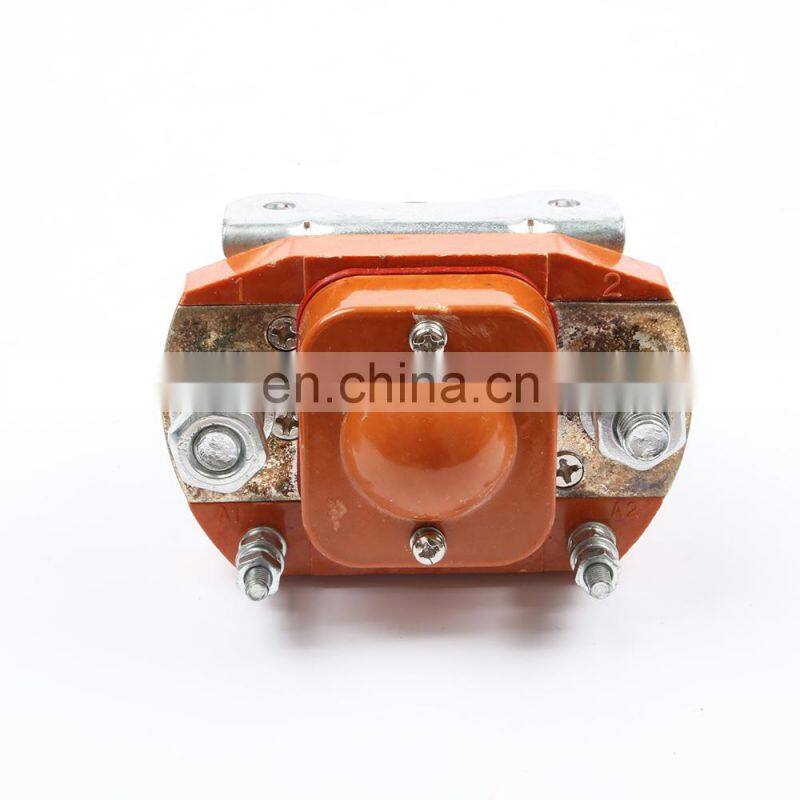

ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A photo-2

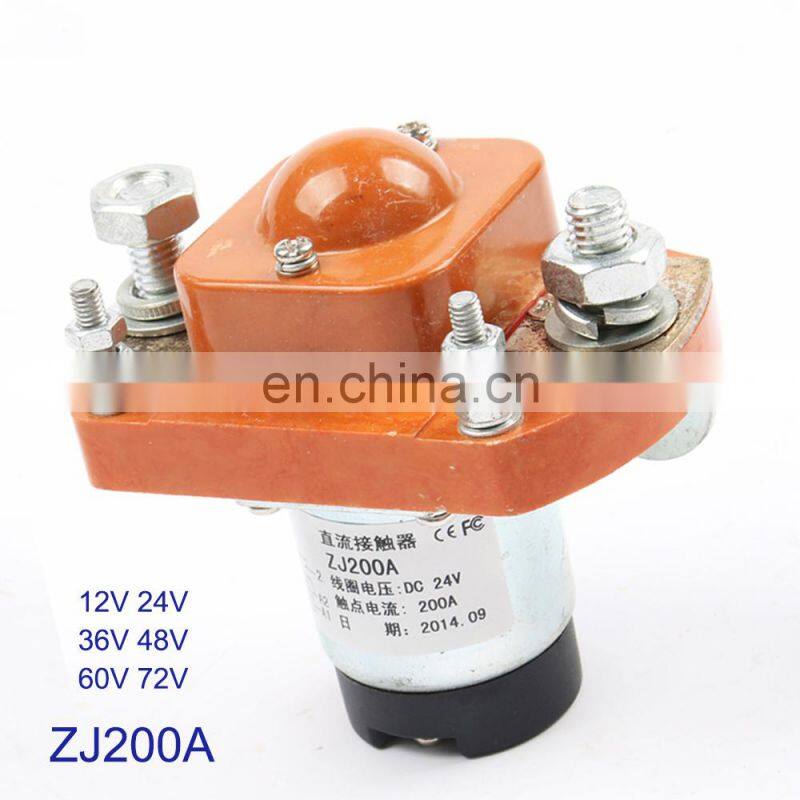

ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A photo-3
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A photo-4
ZJ200A 1NO Normally Open 12V 24V 36V 48V 60V 72V 200A DC Contactor, Contactor DC 200A photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Recommend Products

Start relay

Coil power: 12V DC, 24V DC
Current:500A

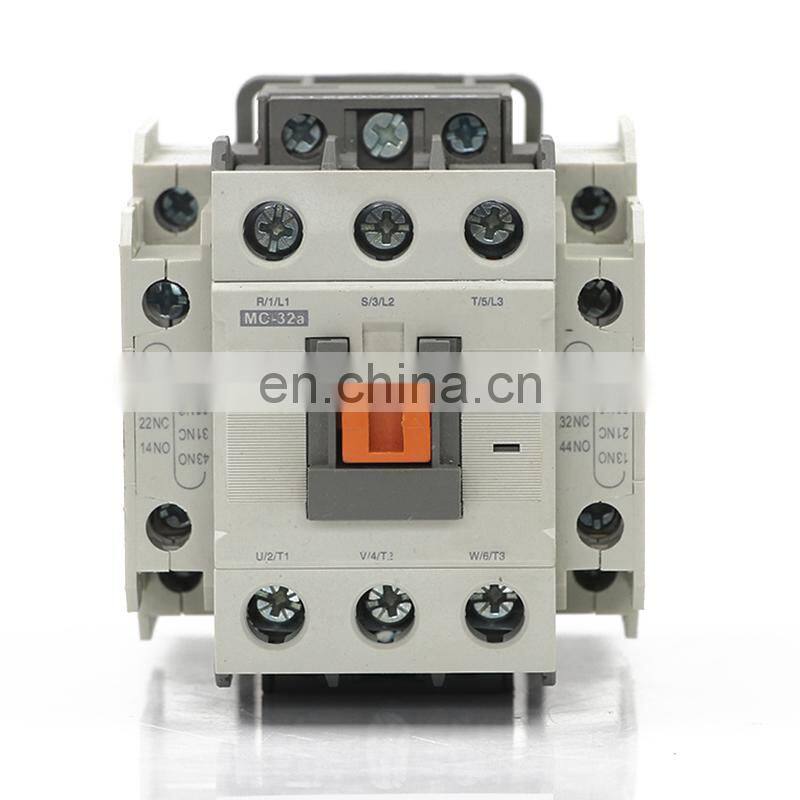

MC-32A Ac contactor

AC MC Contactors

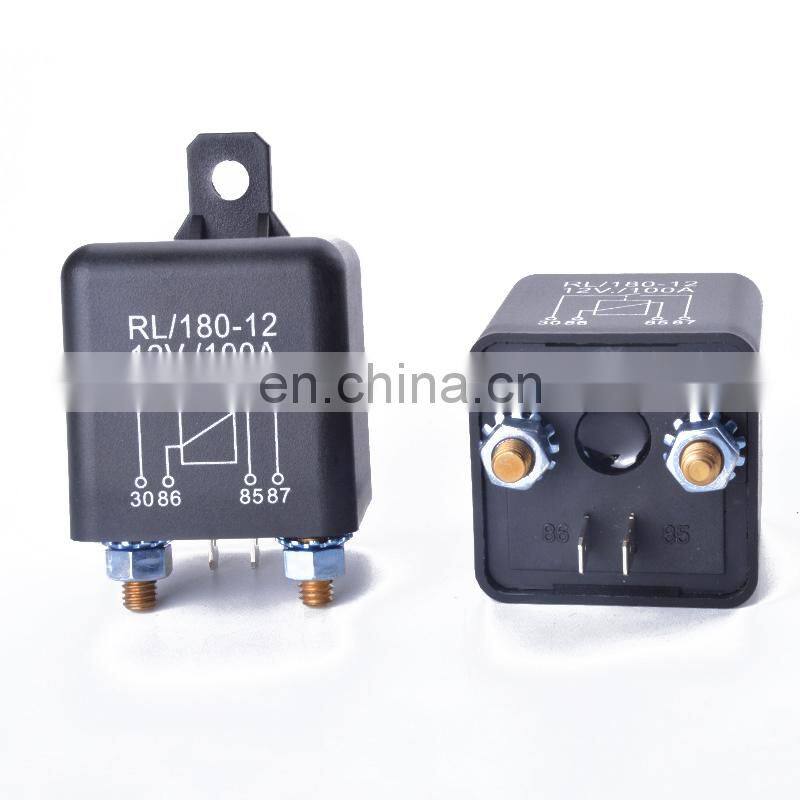

car relay

Voltage: 12V DC, 24V DC,48V DC, 60V DC

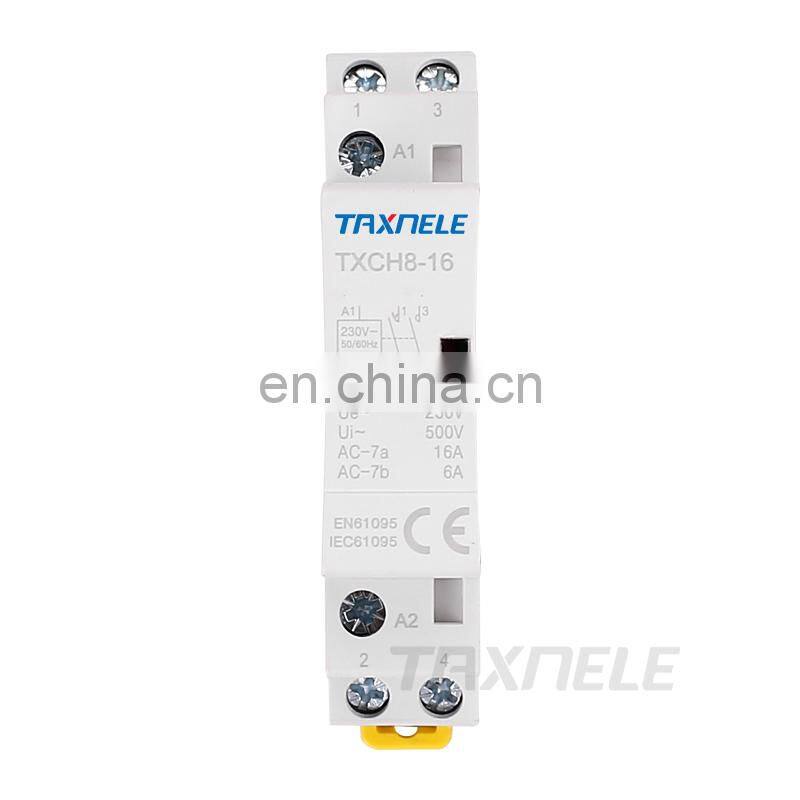

Ac Contactor 2P

16A 25A 1NO 1NC,2NO,2NC

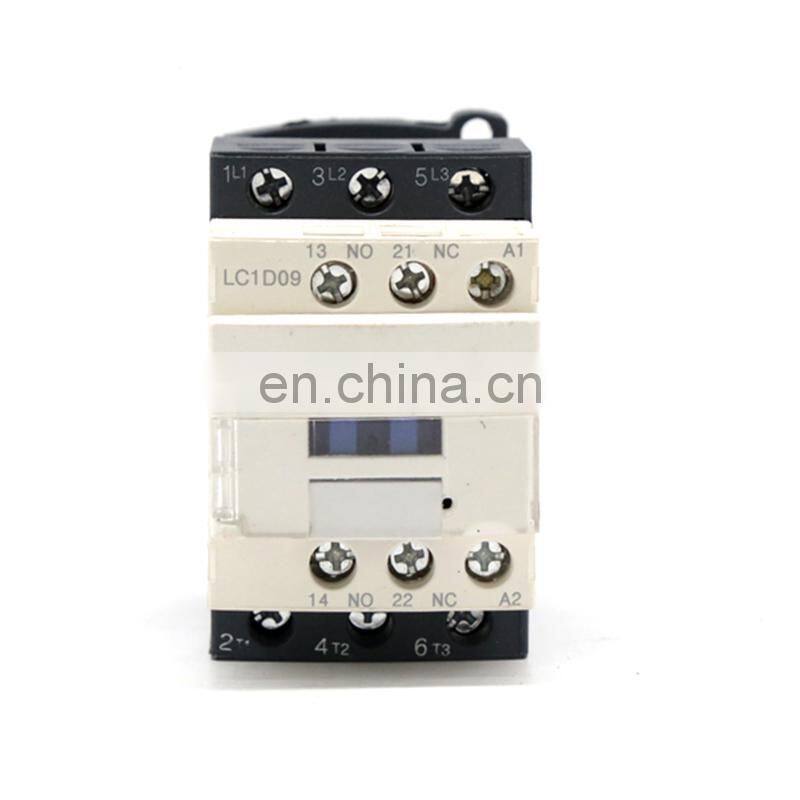

Ac Magnetic Contactor

AC220V/380V

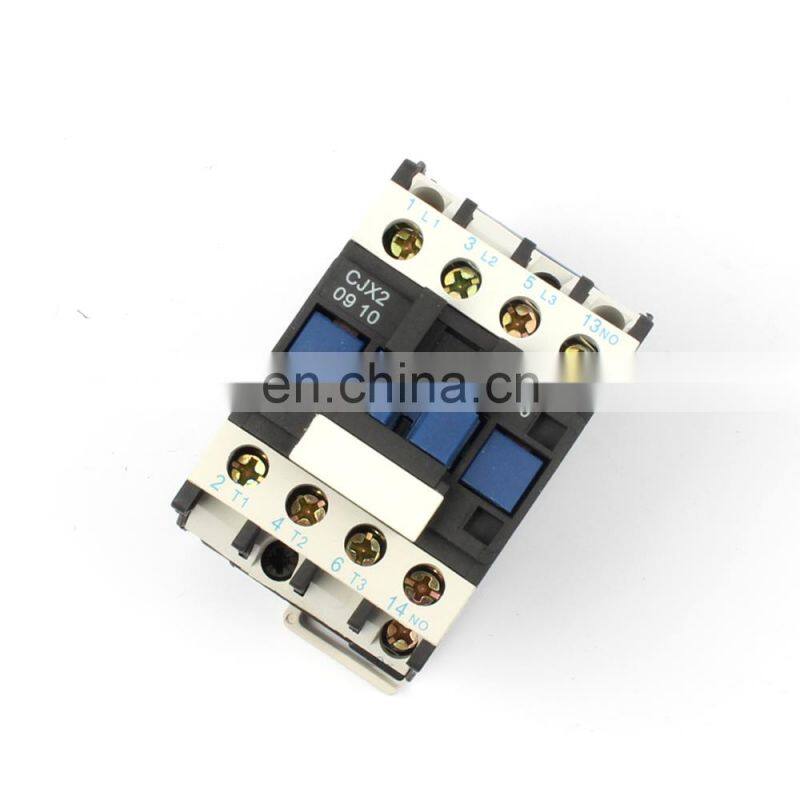

CJX2 Contactor

24v 12V 36V 48V 220V

Product Description
Rated Voltage
12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, etc.
Contact circuit rated load current (A)
200A
Typical voltage drop across contacts per 100A
≤80mV
Under (20±5℃), Cooling Pull-in Voltage
≤70%
Under (20±5℃), Cooling Release Voltage
≤40%, ≥5%
Acceptable Fluctuation Range of Coil Voltage
±20%
Electrify Time
≤30ms
Disconnecting Release Time
≤20ms
The Max Disconnecting Time of Contacts
≤5ms
Insulation Resistance
≥50MΩ
Dielectric Strength
50Hz/60Hz 1000VAC/1min
Overload Current
≤7Ie, ≤1s
Coil Consumption (W)
≤6.5W
Electrical Life
20000 times
Mechenical Life
300,000 Times
Working Mode
Continuous
Contacts Type
1 NO
Contact Material
AgCdO / AgCuO
Auxiliary Contact Rated Load
2A/48VDC, 5A/24VDC
Technical Standard
GB14048.4-2010
Details Images
