Home > Electrical & Electronics > Power Supply & Distribution > Voltage Regulator > Digital Voltage Relay 40A 60A 63A Din Rail Adjustable Protection Over Under Automatic High Low Voltage Protect Protection

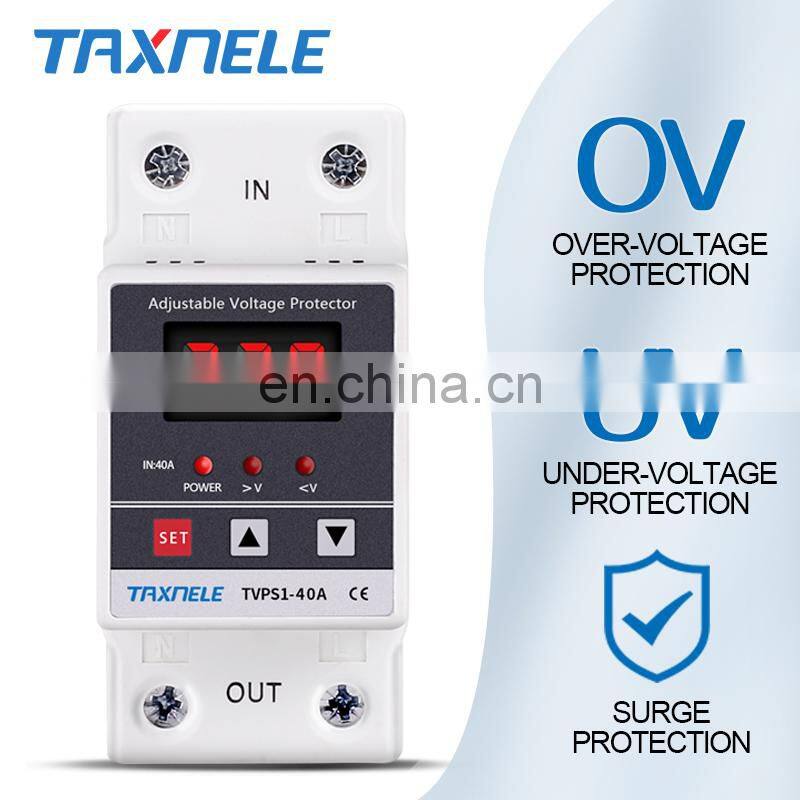

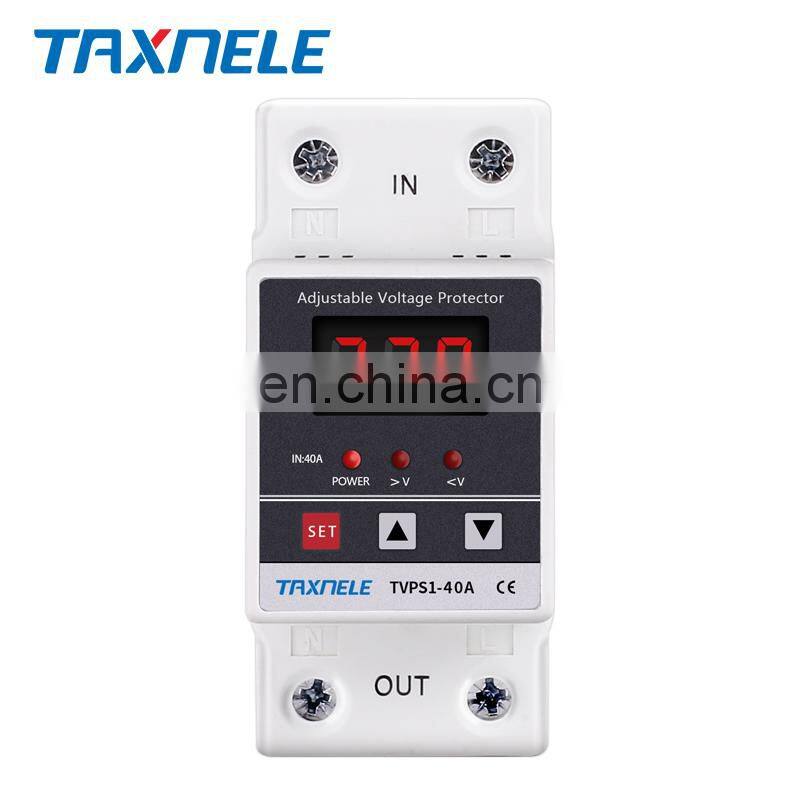

Digital Voltage Relay 40A 60A 63A Din Rail Adjustable Protection Over Under Automatic High Low Voltage Protect Protection
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63A Leakage Protection Circuit Breaker Over And Under Voltage Over Current Leakage Protection Surge Protect ProtectorNegotiableMOQ: 1 -
Adjustable Over Voltage Under Voltage Protector Automatic 63A 40A RCBO Lightning Surge Power Leakage ProtectorNegotiableMOQ: 1
-
60A 63A 380V Three Phase Din Rail Automatic Recovery Reconnect Over Voltage Under Voltage Three Phase Voltage ProtectorNegotiableMOQ: 1
-
3 Three Phase Voltage Current Relay Protector 63A 60A 220V 3P+N Over Under Voltage Relay Current Limiter Automatic ProtectNegotiableMOQ: 1
-
3P 63A 380V Three Phase Din Rail Automatic Recovery Reconnect Over Voltage Under Voltage Protective Protect Protector RelayNegotiableMOQ: 1
Recommend Products

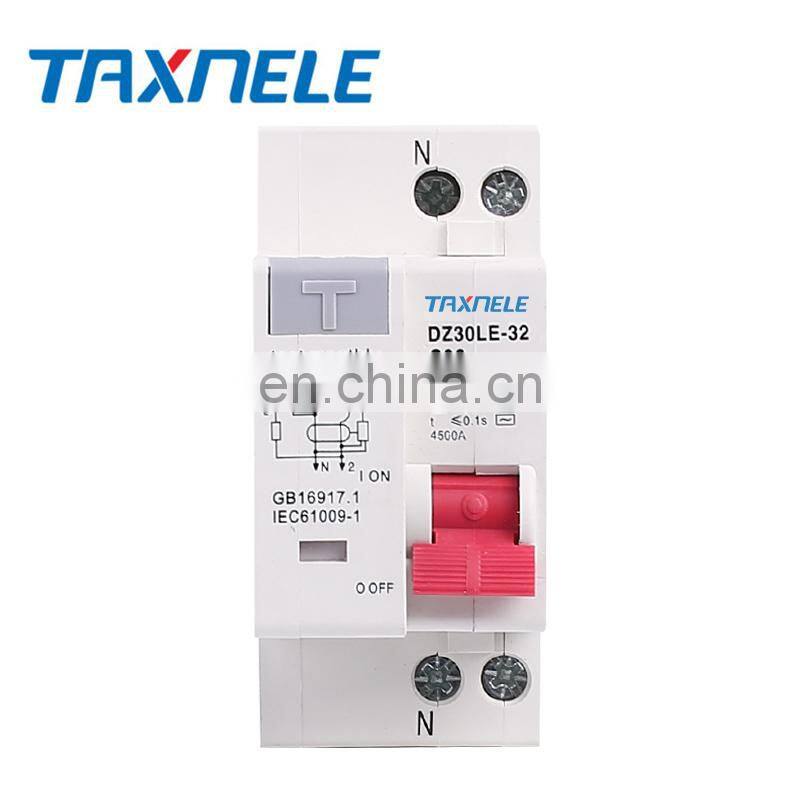

Leakage Circuit breaker
rated voltage 230V
40A 63A voltage protector
Passing Max Current: 40A,63A
40A 63A voltage protector
Passing Max Current: 40A 63A
40A 63A voltage protector
Max Current 40A/63A
Over Voltage 230-300VAC
Over Voltage 230-300VAC
Surge Protector
MAX OPERATING VOLTAGE(UC): 420V

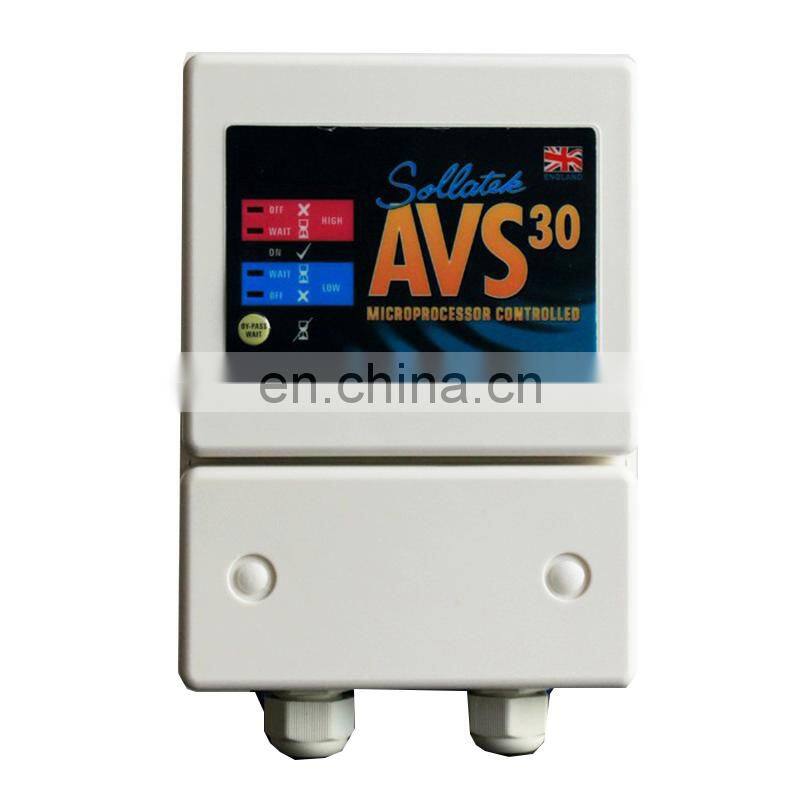

AVS 30A Automatic voltage protector
Max Power :30 Amps
Product Description
Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Automatic recovery
4.Voltage display(voltage measurement)
5.Voltage Correction
Product Parameters:
1.Model number:TVPS1-40A TVPS1-63A
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:40A/63A
4.Over-voltage protection value range:230V~300V -OFF
Over-voltage recovery voltage range:225V--295V
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Power-on delay time:1s~500s
7.Power consumption : <2W
8.Electric machinery life : 100,000 times

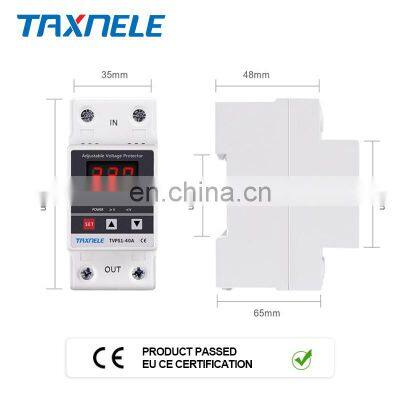

9.Installation:35mm DIN rail
Noted: When you first connect the product, you have to wait about 10 second(Power-on delay time:1s~500s(default:10s)), after the
red light turn off, then the product will work.
1.Over-voltage protection
2.Under-voltage protection
3.Automatic recovery
4.Voltage display(voltage measurement)
5.Voltage Correction
Product Parameters:
1.Model number:TVPS1-40A TVPS1-63A
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:40A/63A
4.Over-voltage protection value range:230V~300V -OFF
Over-voltage recovery voltage range:225V--295V
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Power-on delay time:1s~500s
7.Power consumption : <2W
8.Electric machinery life : 100,000 times
9.Installation:35mm DIN rail
Noted: When you first connect the product, you have to wait about 10 second(Power-on delay time:1s~500s(default:10s)), after the
red light turn off, then the product will work.
