4 Digital Red Green Blue LED Tachometer RPM Speed Meter+Hall Switch Proximity Switch Sensor 12V Measure range 10-9999RPM Counter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
85C1-mA DC pointer analog ammeter panel 1mA 2mA 3mA 5mA 10mA 20mA 30mA 50mA 100mA 150mA 100mA 150mA 200mA 300mA 500mA
-
91c4 Ammeter DC Analog Current Meter Panel Mechanical Pointer 1A/2A/3A/5A/10A/20mA/30mA/50mA/100mA/200mA/300mA/500mA
-
69L17 Pointer Needle AC 0-450V Volt Tester Panel Analog Voltmeter 85mm x 45mm, Ammeter Current AC Analog voltage Meter
-
SC-35W-12 35W 12V 3A universal AC UPS Charger function monitor switching mode power supply charger voltage 13.8v
-
DC 5V-48V LED Panel Digital Car Voltage Meter Motorcycle Battery Capacity Display Voltmeter with Touch ON/OFF Switch
-
V40D Waterproof Battery Meter DC15-120V Auto Car Gauge Digital Voltmeter LED Red Blue Voltage meter , Battery Tester meter
Product Description
Parameters
| Power requirement: | DC 8-15v |
| Measure range | 10-9999RPM |
| Clear zero | Automatic |
| Display refresher rate | 3 Times/Sec |
| Measure indication | RPM<5000,±2;RPM>5000,±3 |
| Display | Green 0.56" LED |
| Response frequency | 100HZ |
| Tachometer dimension | 72x36x20mm |
| Panel cutout Dimension | 68x33mm |
| Sensor Dimension | 12x55mm |
| Proximity output current | 200mA |

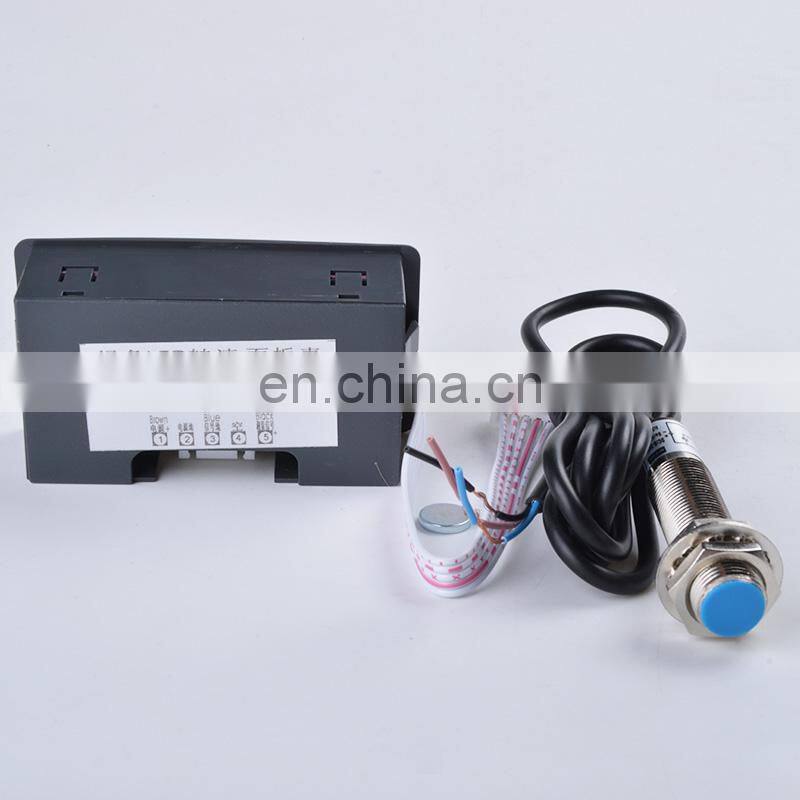

| Sensor wiring | brown-Power+;blue-Power-;black-signal |
| Operating temperature | 0 to 50°C. |
Package Included:
1 x New LED Tachometer RPM Speed Meter

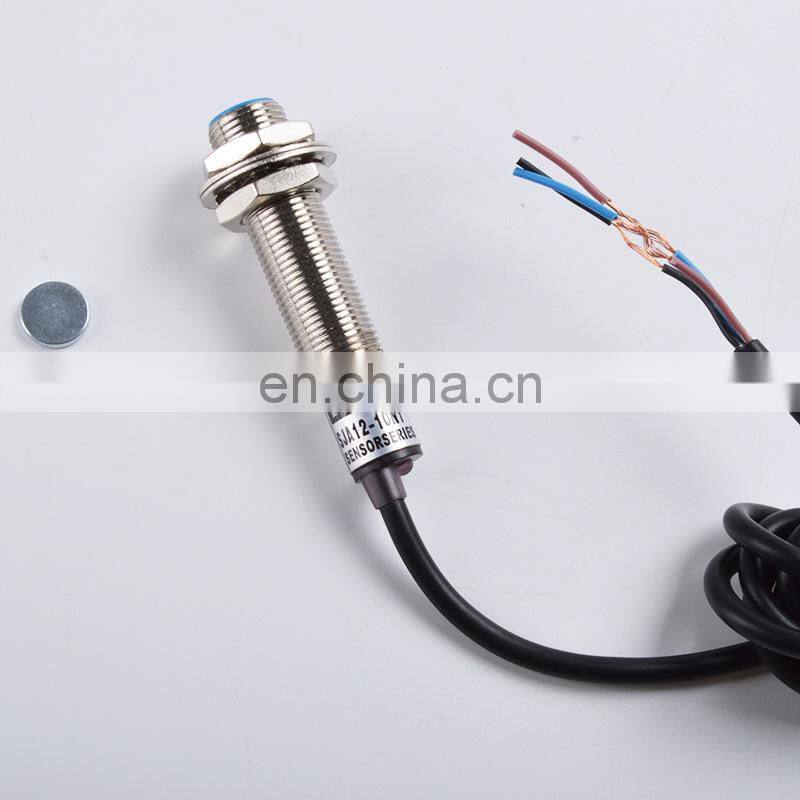

1 x Hall Proximity Switch Sensor NPN
Note:
Colors may differ slightly from the pictures.
Feature:
100% Brand new and high quality.
With a standard size, easy to install.
Have good stability, high measurement precision.
Strong anti-jamming capability.
