Help CenterOnline Optical Particle Counter With Display OPC-6510DS
Related Products
-
2.83LPM Online Particle Counter OPC-6303MUS$ 1000 - 1400MOQ: 1 Piece -
28.3LPM Remote Online Particle Counter OPC-6510US$ 1800 - 2600MOQ: 1 Piece
-
HVAC DCV System Wall-Mount CO2 Transmitter Controller AM6208WNegotiableMOQ: 1 Piece
-
HVAC DCV System Mini USB CO2 Detector CM01NegotiableMOQ: 1 Piece
-
Ultrasonic Flue Gas Flowmeter Gasboard-7900NegotiableMOQ: 1 Piece

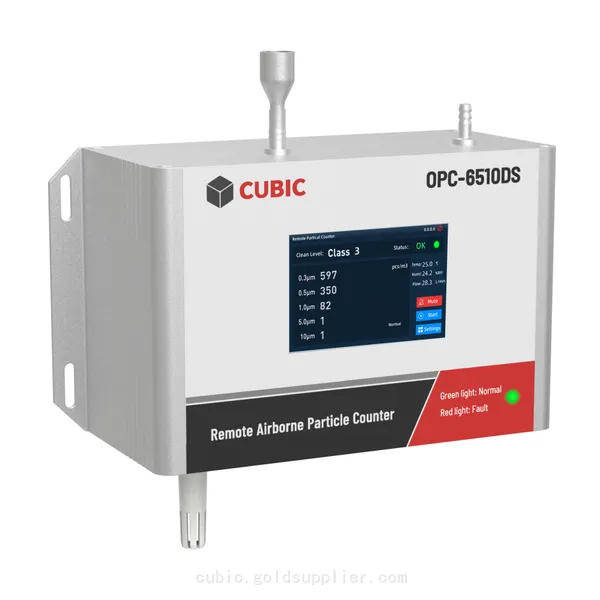

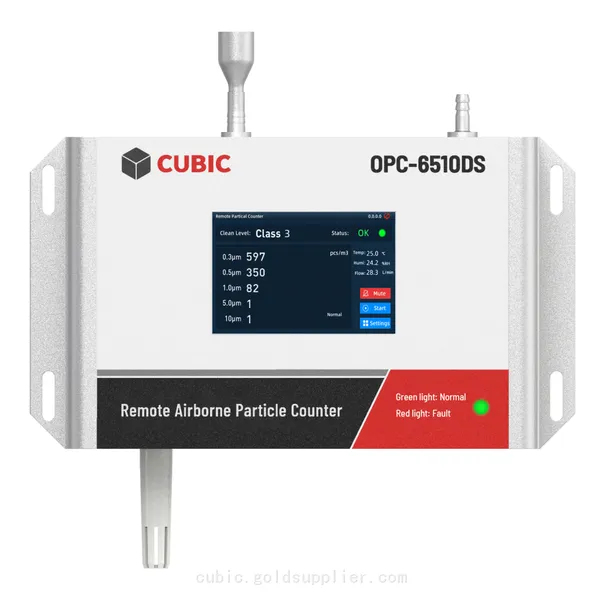

OPC-6510DS is a cleanroom airborne particle counter, it can accurately detect and calculate the number of different size particles in the air per unit volume. The device can simultaneously output the particle number of 5 channels of >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm in pcs/28.3L or pcs/m³. The screen can realtime display the monitoring data, cleanroom ISO14644-1 2015 grade and alarm once the particle quantity exceeds the set threshold. The touch screen also supports setting the output unit, display channel, concentration alarm threshold, coefficient, language, work time, MQTT, etc.
Features
4 in 1 integrated particle counter of particulate matter sensor, filter, flow sensor and pump
Output particle number (PCS/m³, PCS/L or PCS/28.3L) in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Built-in high power industrial grade linear laser, accurate identification
Built-in pump and flow sensor for constant stable sampling
Wide working temperature -30℃~70℃, stable for different clean room application
With voltage regulator design and EMC compliant, strong anti-static ability
Modbus RS485,MQTT, 4-20mA output for online remote monitoring
Specifications
| Operating principle | Laser scattering |
| Measurement range | 0~1,000,000 pcs/ 28.3L |
| Output channels | >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm |
| Count efficiency | 50%@≥0.3μm, 100%@≥0.5μm Condition: 25±2℃, 50±10%RH, calibration instrument Lighthouse 3100 |
| Time to first reading | ≤ 8 seconds |
| Data refresh time | 1 second |
| Working condition | 0°C ~ 45°C, 0 ~ 95%RH (Non-condensing) |
| Storage condition | -20°C ~ 60°C, 0 ~ 95%RH (Non-condensing) |
| Operating voltage | DC 24V±15% |
| Average operating current | ≤3A |
| Communication interface | RS485(Standard), RJ45(Standard) |
| Life span | ≥3 years |
| Sampling flow rate | 28.3L/min (1CFM) |
| External sampling tube | Inner diameter: ф10mm Length: ≤3m |
| Work mode | Adjustable(default: work 2 minutes and sleep 28 minutes) |
| Display | 3.5-inch color touch screen |
