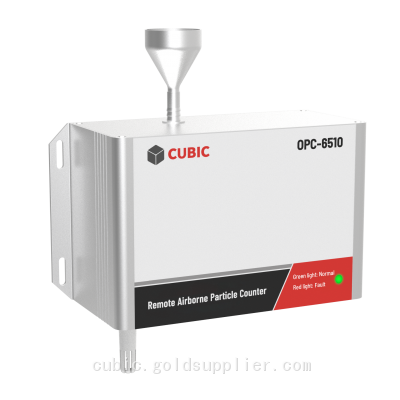

Help Center28.3LPM Remote Online Particle Counter OPC-6510
US$ 1800 - 2600
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Cubic Sensor and Instrument Co.,Ltd.
Place of Origin:
China
Model Number:
OPC-6510
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Online Optical Particle Counter With Display OPC-6510DSUS$ 2000 - 2800MOQ: 1 Piece -
2.83LPM Online Particle Counter OPC-6303MUS$ 1000 - 1400MOQ: 1 Piece
-
HVAC DCV System Wall-Mount CO2 Transmitter Controller AM6208WNegotiableMOQ: 1 Piece
-
HVAC DCV System Mini USB CO2 Detector CM01NegotiableMOQ: 1 Piece
-
Ultrasonic Flue Gas Flowmeter Gasboard-7900NegotiableMOQ: 1 Piece
Brand Name
Cubic Sensor and Instrument Co.,Ltd.
Place of Origin
China
Model Number
OPC-6510
Description
The cleanroom remote online particle counter OPC-6510 adopts the principle of optical scattering, which can accurately detect and calculate the number of suspended particles of different particle sizes in the air per unit volume. The gas sampling rate of large flow can simultaneously output the particle number of 5 channels of >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm (pcs/28.3L or pcs/m³).
Features
- Output particle number (pcs/28.3L or pcs/m³) in 5 channels including >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm
- Built-in high power industrial grade linear laser, accurate identification
- Built-in fan and flow sensor for constant stable sampling
- Modbus RS485 and MQTT output for online remote monitoring
Specifications
| Output channels | >0.3μm, >0.5μm, >1.0μm, >5.0μm, >10μm |
| Operating principle | Laser scattering |
| Measurement Range: | 0~1,000,000 pcs/ 28.3L |
| Count efficiency | 50%@≥0.3μm, 100%@≥0.5μm Condition: 25±2℃, 50±10%RH, calibration instrument Lighthouse 3100 |
| Time to first reading | ≤ 8 seconds |
| Data refresh time | 1 second |
| Working condition | 0°C ~ 45°C, 0 ~ 95%RH (Non-condensing) |
| Storage condition | -20°C ~ 60°C, 0 ~ 95%RH (Non-condensing) |
| Operating Voltage | DC 24V±15% |
| Average operating current | ≤3A |
| Communication interface | RS485(Standard), RJ45(Optional) |
| Life span | ≥3 years |
| Sampling flow rate | 28.3L/min (1CFM) |
| External sampling tube | Inner diameter: ф10mm Length: ≤3m |
| Work mode | Adjustable(default: work 2 minutes and sleep 28 minutes) |
