Home > Products > Power Meter > 100A 75mV FL-2 DC Current Shunt Resistor For Amp Ampere Panel Meter

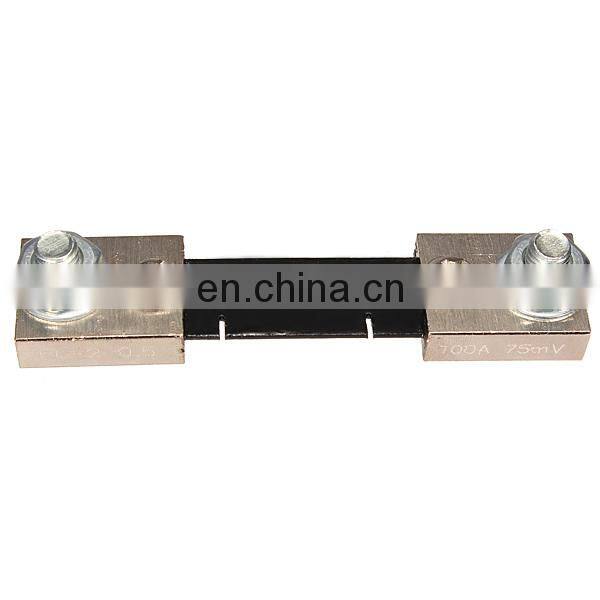

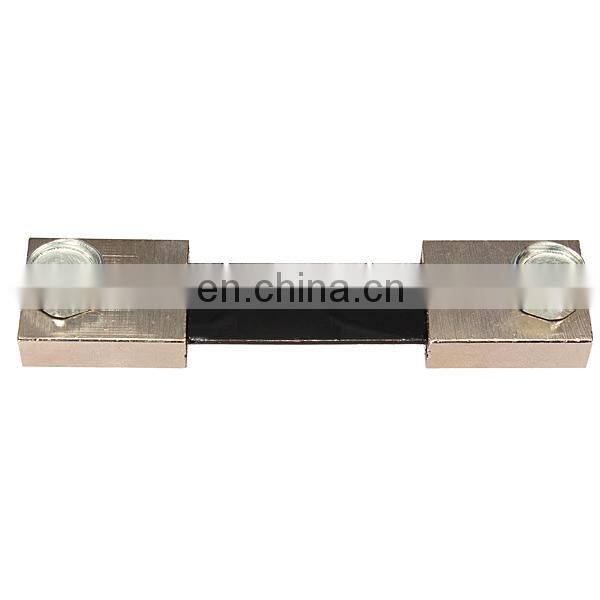

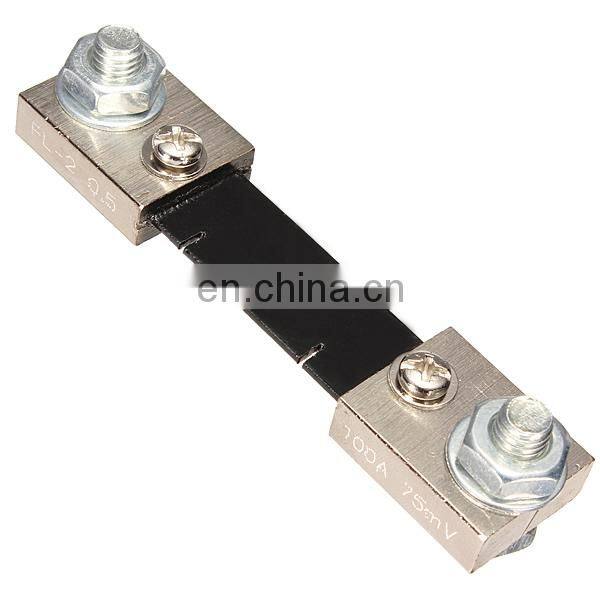

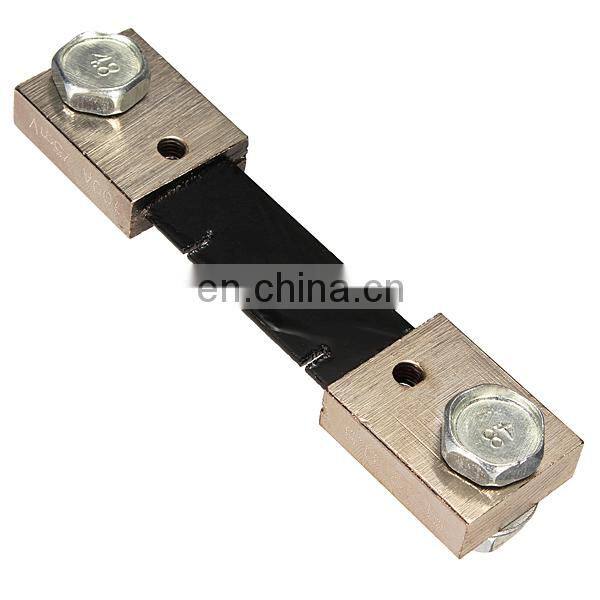

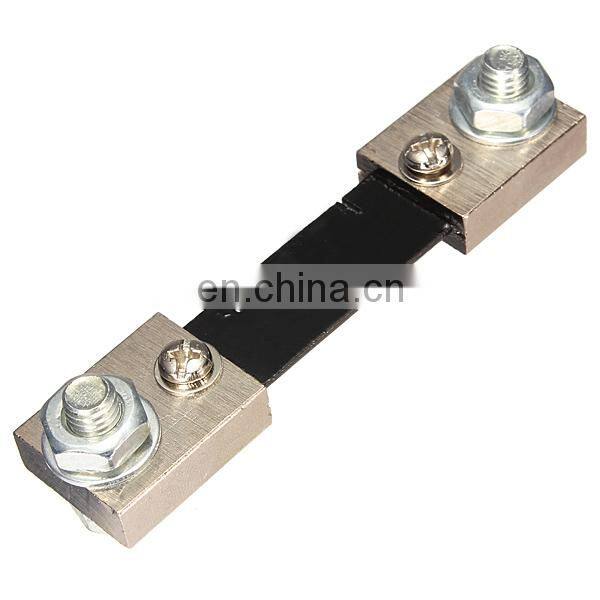

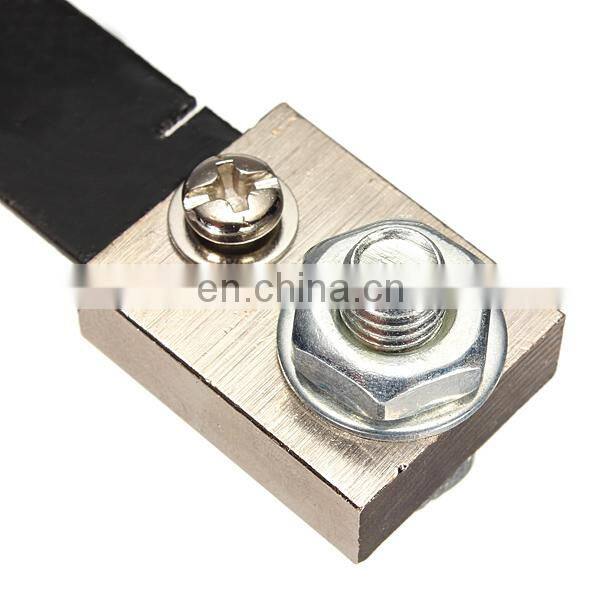

100A 75mV FL-2 DC Current Shunt Resistor For Amp Ampere Panel Meter
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
DC Current SHUNT 100A FL-2C 75mV shunt resistor for amp ampere panel meter External shunt
-
22mm DC 6-100V Voltmeter Round Mini LED Digital Voltage Indicator Voltage Meter Tester Precision Voltmeter
-
DM55-1 Digital AC Voltmeter AC80V-300V Electric Voltage Pen Tester LCD Display EU Plug type Volt Meter Voltmeter
-
PC05-100A LCD DC 8-100V 0-100A Current DC Power Energy Meter Tester 100A 4 IN1 Digital Voltmeter Ammeter with shunt
-
4 Digital LED Red Blue Green Tachometer Gauge RPM Speed Meter+Hall Proximity Switch Sensor NPN 12V Speed Meter Counter Promotion
-
AC22KW 110~250V 100A Digital Voltage Power Energy Voltmeter Ammeter Meters Indicator Current Amps Volt Wattmeter Tester Detector
Product Description
Parameter
| name | DC100A 75mV Current Shunt Resistor |
Description:
This is 100A 75mV FL-2 DC current shunt resistor for amp ampere panel meter
The fixed setpoint shunt is a suitable the attached external shunt for measuring DC current in 10kA less directly
acting on the analog display instrument together with the use in order to expand the scope of the DC current
measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors,
a sampling voltage is measured with a current can be regarded as an analog signal.
Specifications:
Accuracy level :2-4000A, 0.5 level; 5000-10000A, 1 level.
Environmental conditions: -40 ~ +60 ℃, the relative temperature ≤ 95% (35 ° C)
Overload performance: 120% of rated current, 2 hours
Voltage drop: 75mV
Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C;
rated current of 50A does not exceed 120 ° C
Product Display
