Home > Products > Power Meter > DL69-2042 LCD Digital Dual Display AC Voltmeter Ammeter Volt Meter Voltimetro Amperimetro Tester AC80-300V 0-100A

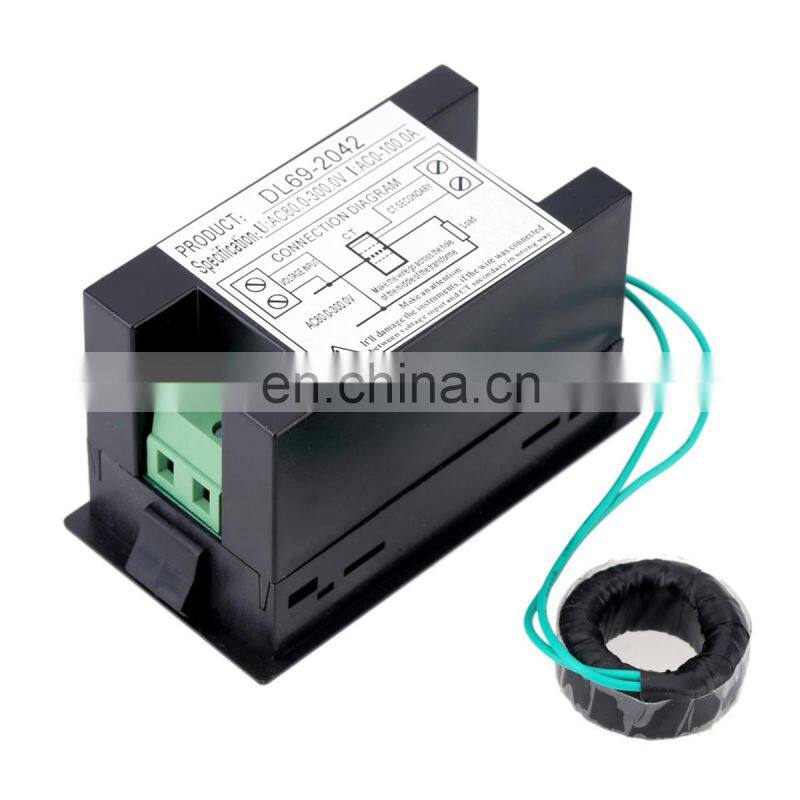

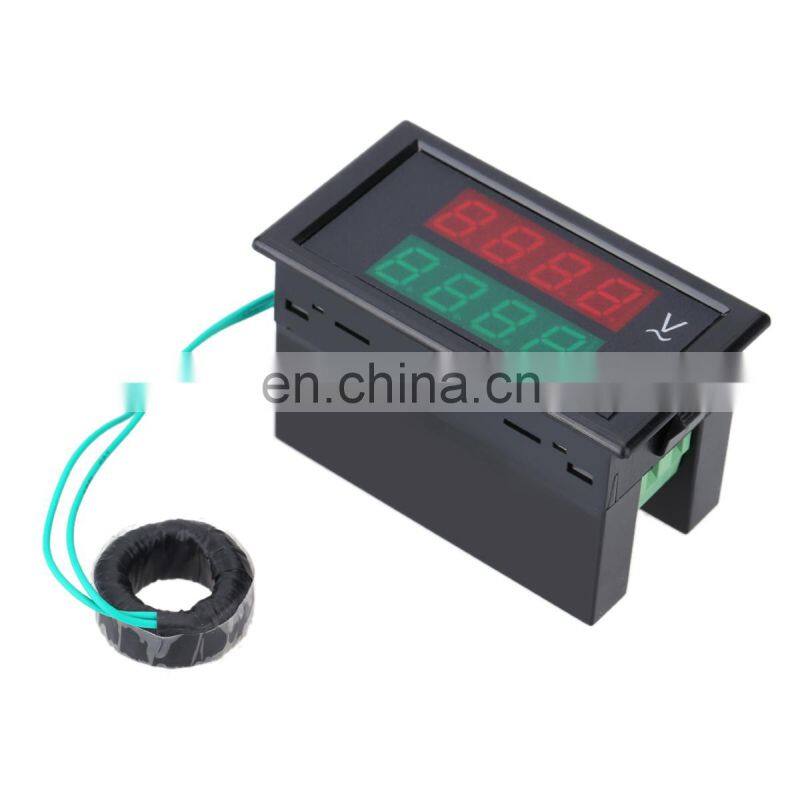

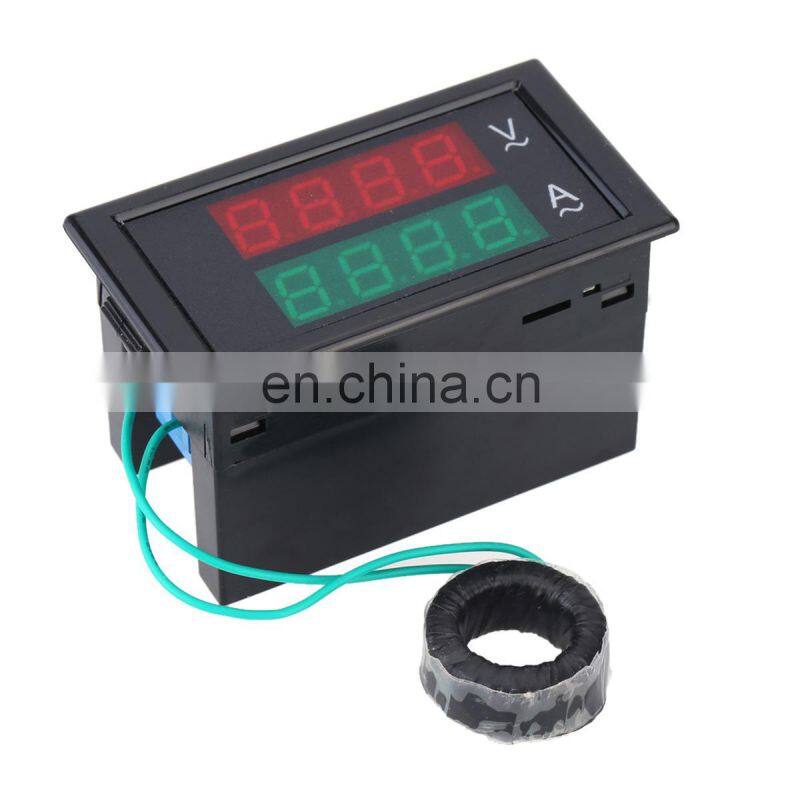

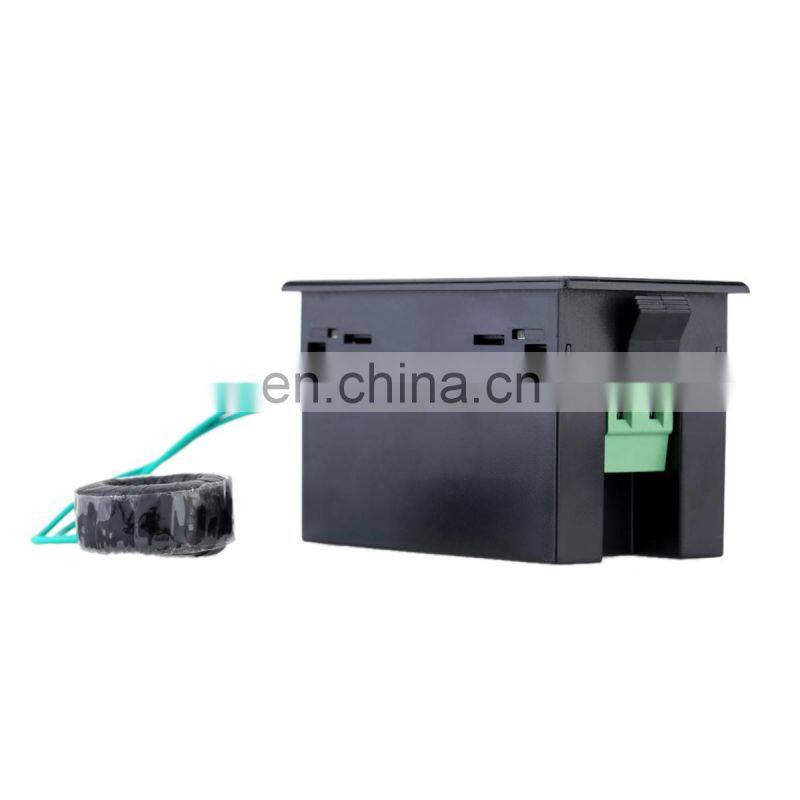

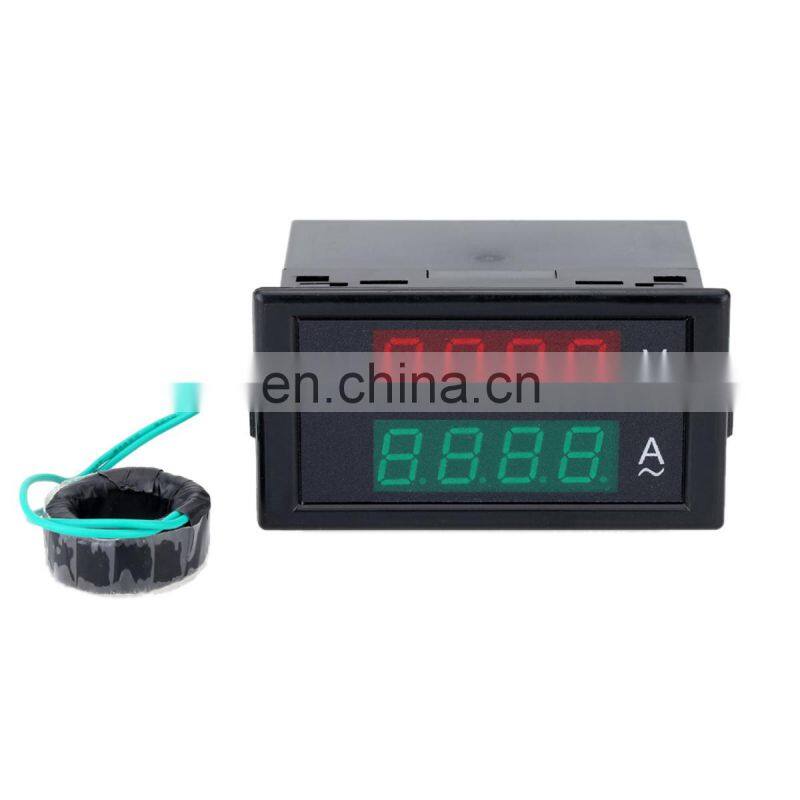

DL69-2042 LCD Digital Dual Display AC Voltmeter Ammeter Volt Meter Voltimetro Amperimetro Tester AC80-300V 0-100A
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Digital Electric Power Meter LED Voltage Current Active Power Factor Energy Meter AC80-300V 100A DIN-rail Electric Meter
-
Single Phase Two Wire LCD Backlit Wattmeter Power Consumption Watt Energy Meter KWh 60A 32a 230V 50Hz Electric Din Rail Mount
-
D85-240t Liquid Crystal ac Ammeter AC100A Direct ac Digital Display Ammeter, LCD Digital Display Current Meter Ammeter
-
Single Phase AC LED Watt Meter Energy Meter 220V 100A Volt Ampere Watt Kwh Power Monitor PZEM-004 With CT Coil
-
DC 0-100V 10A 1000W LCD Digital Voltmeter Ammeter Wattmeter Voltage Current Power Meter Volt Detector Tester Monitor 12V 24V 36V
-
Single Phase Two Wire LCD Digital Display Wattmeter Power Consumption Energy Electric Meter KWh AC 230V 50Hz Electric Din Rail
Product Description
parameters
| NAME | DL69-2042 Voltmeter Ammeter |
Features:
Display the AC voltage and current simultaneously by LED digital tube.
Including one independent small precise current transformer with a rear cover.
Wide measurement voltage and current range.
No need to add power supply and AC transformer.
Widely used in audio amplifier, power distribution box, distribution cabinet, regulators, teaching aids,
household small distribution box, etc.
Specification:
AC voltage: AC 80-300V (single phase) 200-450V (three-phase)
AC current: AC 0-100.0A, when measured current is less than 10A, current display resolution is 0.01A; when measured
current is more than 10A, display resolution is 0.1A; measuring range automatic conversion (decimal automatic shift)
True RMS measurement
Power consumption: 0.2VA
Measurement speed: About 2 times per second
Product size: about 79 x 46x 42mm / 3.1 x 1.8 x 1.6in
Product weight: about 83g / 2.93oz
Package size: about 80 x 44 x 49mm / 3.2 x 1.8 x 2in
Package weight: about 93g / 3.28oz
Display the AC voltage and current simultaneously by LED digital tube.
Including one independent small precise current transformer with a rear cover.
Wide measurement voltage and current range.
No need to add power supply and AC transformer.
Widely used in audio amplifier, power distribution box, distribution cabinet, regulators, teaching aids,
household small distribution box, etc.
Specification:
AC voltage: AC 80-300V (single phase) 200-450V (three-phase)
AC current: AC 0-100.0A, when measured current is less than 10A, current display resolution is 0.01A; when measured
current is more than 10A, display resolution is 0.1A; measuring range automatic conversion (decimal automatic shift)
True RMS measurement
Power consumption: 0.2VA
Measurement speed: About 2 times per second
Product size: about 79 x 46x 42mm / 3.1 x 1.8 x 1.6in
Product weight: about 83g / 2.93oz
Package size: about 80 x 44 x 49mm / 3.2 x 1.8 x 2in
Package weight: about 93g / 3.28oz
Product display
