DL69-2048 Multifunctional AC Voltmeter Ammeter Voltage Current Meter AC 80-300V AC 200-450V
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
D69-2080 220V 380V 50Hz LCD Digital Display Voltmeter Frequency Meter Head AC80-300v, Voltmeter Frequency MeterNegotiableMOQ: 1 -
AC 80-300V 0-100A HD Yellow Blue LCD Active Power Digital Dual LED Display Voltmeter Ammeter Panel Amp Volt Meter D85-2042AGNegotiableMOQ: 1
-
DL69-2042 LCD Digital Dual Display AC Voltmeter Ammeter Volt Meter Voltimetro Amperimetro Tester AC80-300V 0-100ANegotiableMOQ: 1
-
Digital Electric Power Meter LED Voltage Current Active Power Factor Energy Meter AC80-300V 100A DIN-rail Electric MeterNegotiableMOQ: 1
-
Single Phase Two Wire LCD Backlit Wattmeter Power Consumption Watt Energy Meter KWh 60A 32a 230V 50Hz Electric Din Rail MountNegotiableMOQ: 1
parameters
| NAME | DL69-2048 power meter |
Description
Digital AC voltage and current meter are shown simultaneously measured AC voltage and AC current in the same instrument.
The instrument does not need an additional AC transformer and the power supply (99A or less with precision small transformers), measurement is very convenient.
Specification:
1.Accuracy: 1% ± 2 words
2.Display: voltage and current display four red .31 inches LED digital control, active power, apparent power and power factor of five red LED digital tube 0.31 inches.
3.Measuring range: AC voltage: AC80-300V (measuring range according to the device of their choice) Household checked 80-300V 100.0A
4.AC current: AC0-100.0A, when the measured current is less than 10A current display resolution is 0.01A, when the current is greater than 10A current with a resolution of 0.1A automatic conversion range (automatic decimal point shift)
Active Power:(Measuring voltage AC80-300V) 0-30000W (AC200-450V: 45000W) start measuring power 3W normal show!
5.Apparent power :( measuring voltage AC80-300V) 0-30000W (AC200-450V: 45000W) start measuring power 3W normal show! Power factor: 1.000-0.000
6.Measurement speed: about 2 times per second
This meter is only suitable for pure AC 50-60HZ mains power supply, it can not be used for a square wave,inverter output,measurement the sine wave circuit of modified sine wave ,otherwise the instrument will be permanently damaged!
The order of connection:First, connect the current loop line, 220V voltage finally connected. After switching 220V power supply, the instrument will not be able to touch any part of the circuit and back, to prevent electric shock hazard.

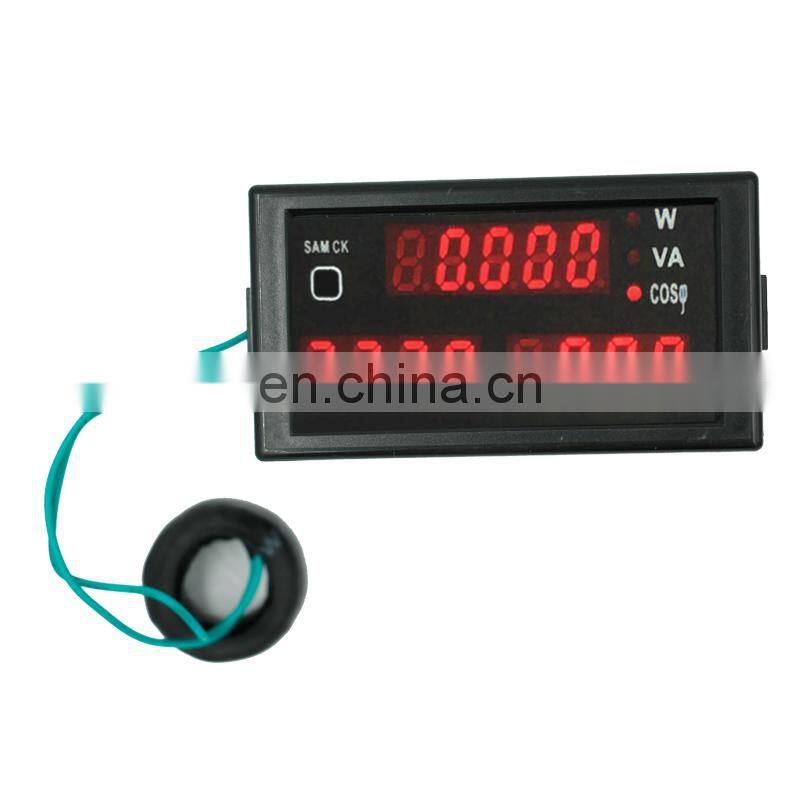

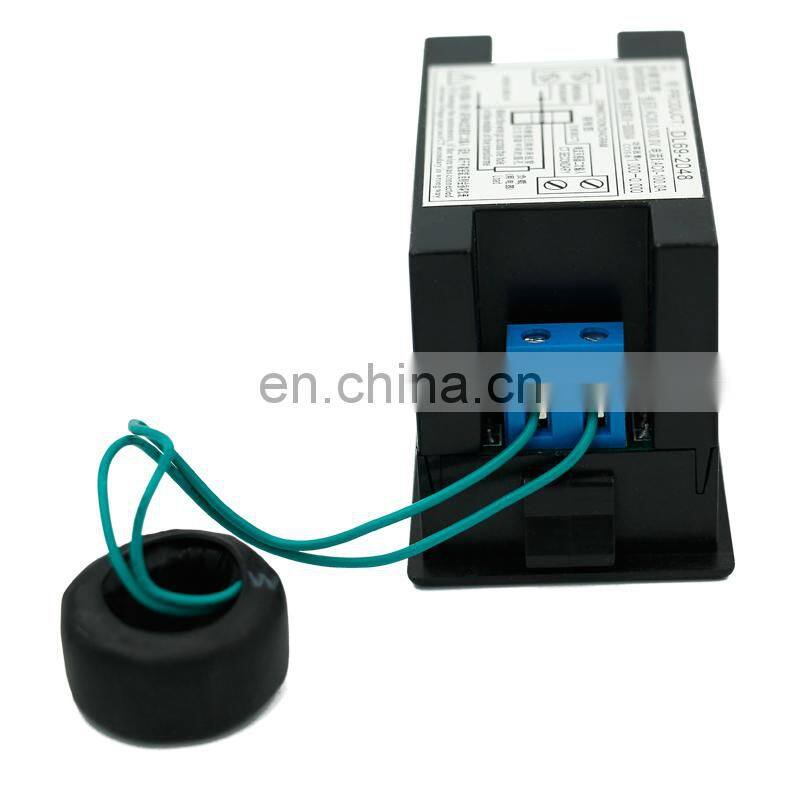

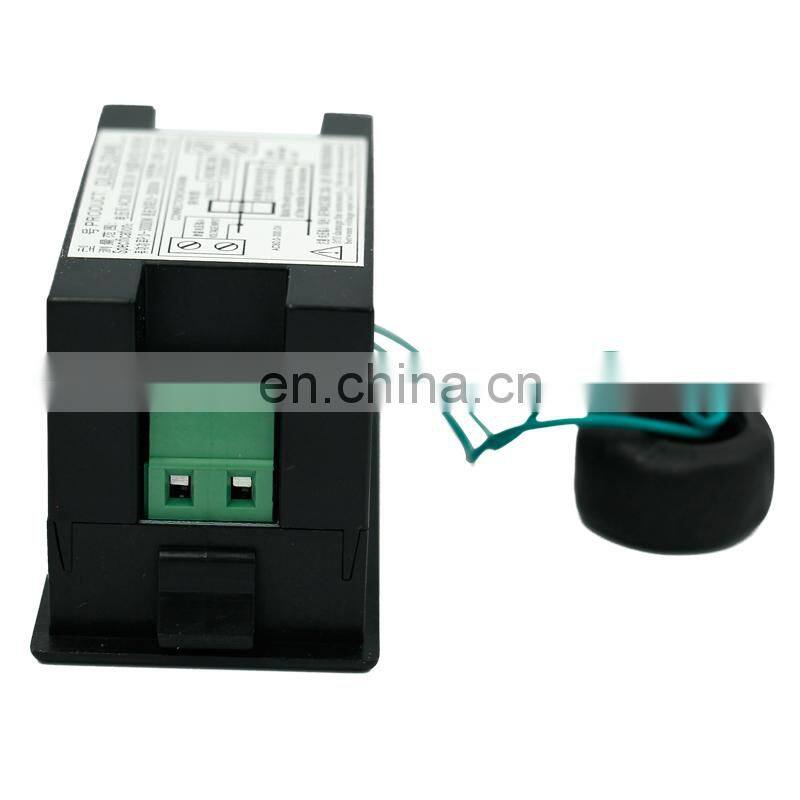

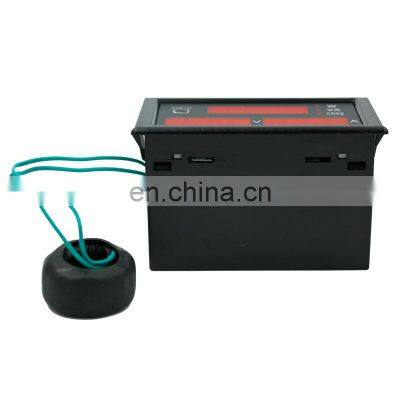

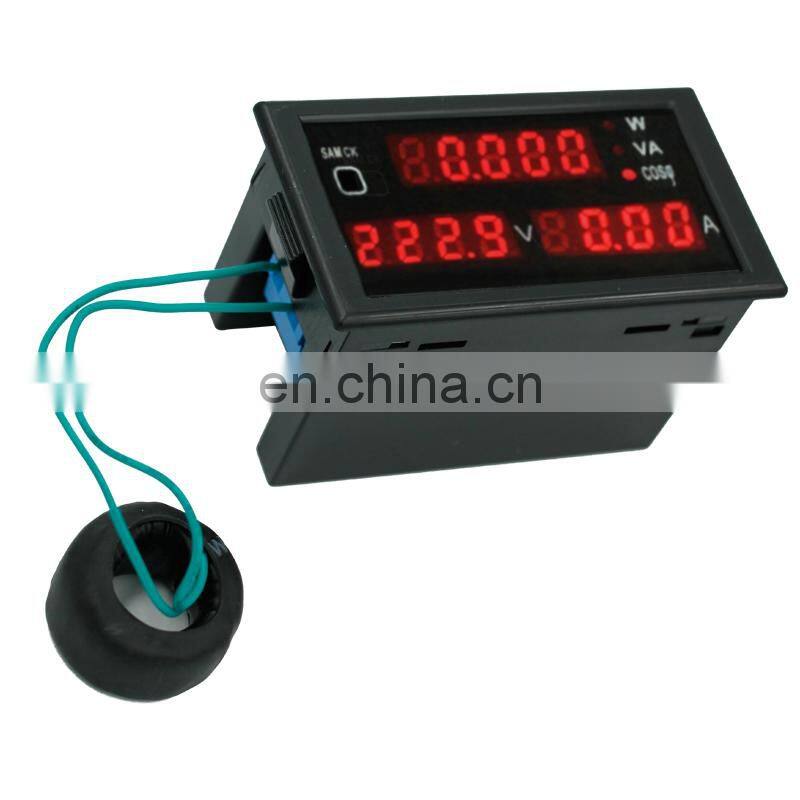

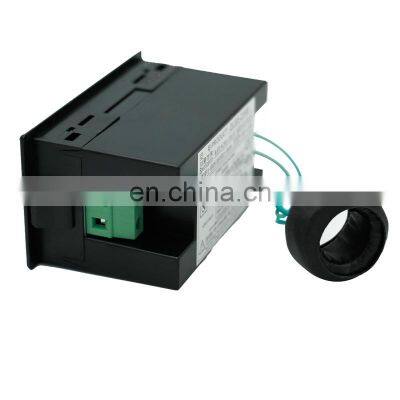

Product display
