Specifications:
| Voltage | AC200V-450V |
Digital Ammeter Voltmeter Current Electric Energy Meter AC200V-450V
Description:

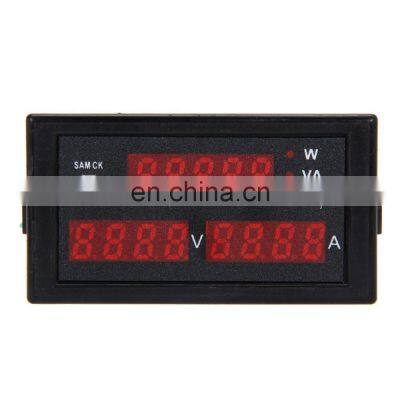

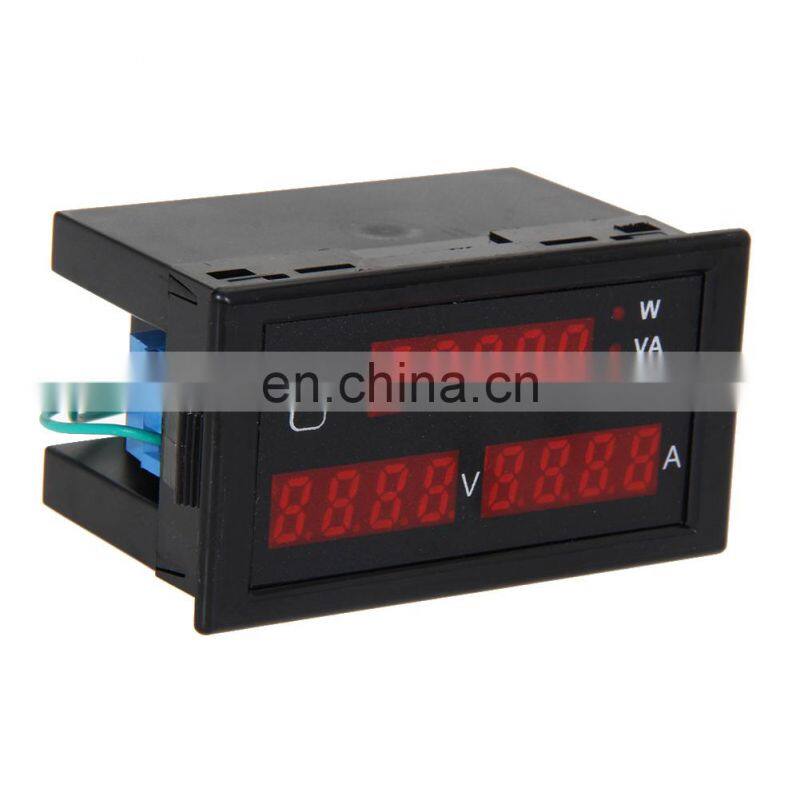

The item is a multi-function meter. On the instrument, it can respectively display the measured AC voltage, AC current, active power, apparent power and power factor at the same time.
Feature:
Wide voltage and current measurement range
Display the AC voltage and current, etc. simultaneously by LED digital tube
Measure AC voltage, AC current, active power, electric energy and power factor
Suitable for monitoring the operating situation of appliances
Operation:

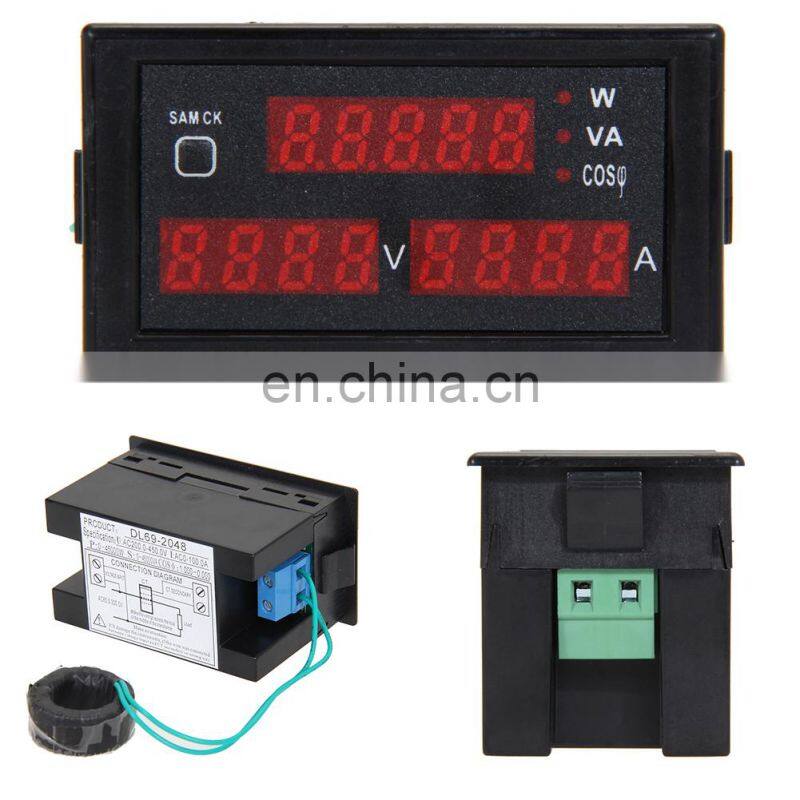

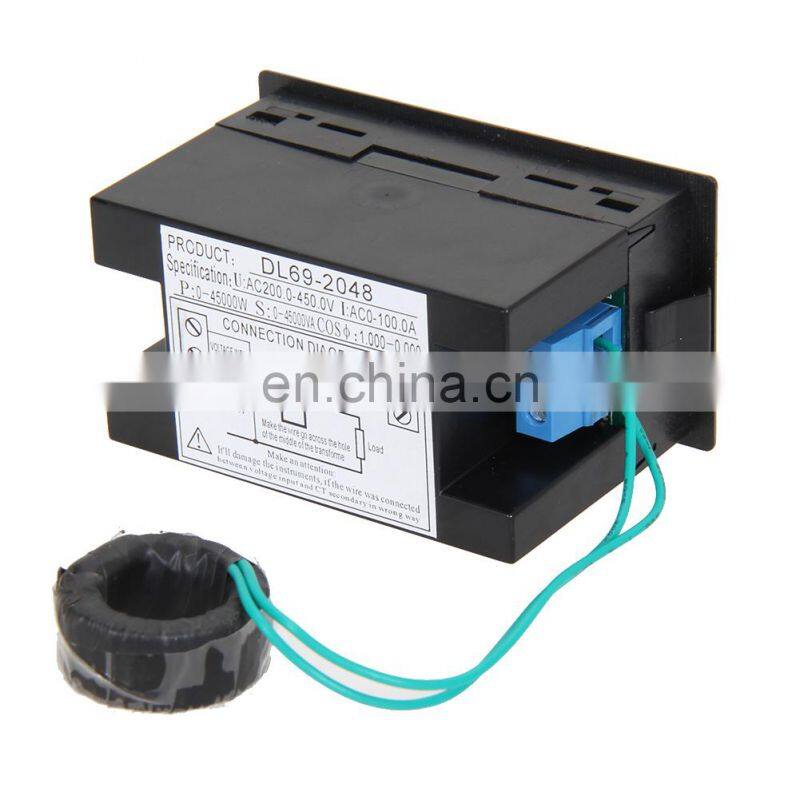

Connect the wires (blue wire) of secondary transformer to the blue terminal on the meter, the meaure line must across the hole in the current transformer;

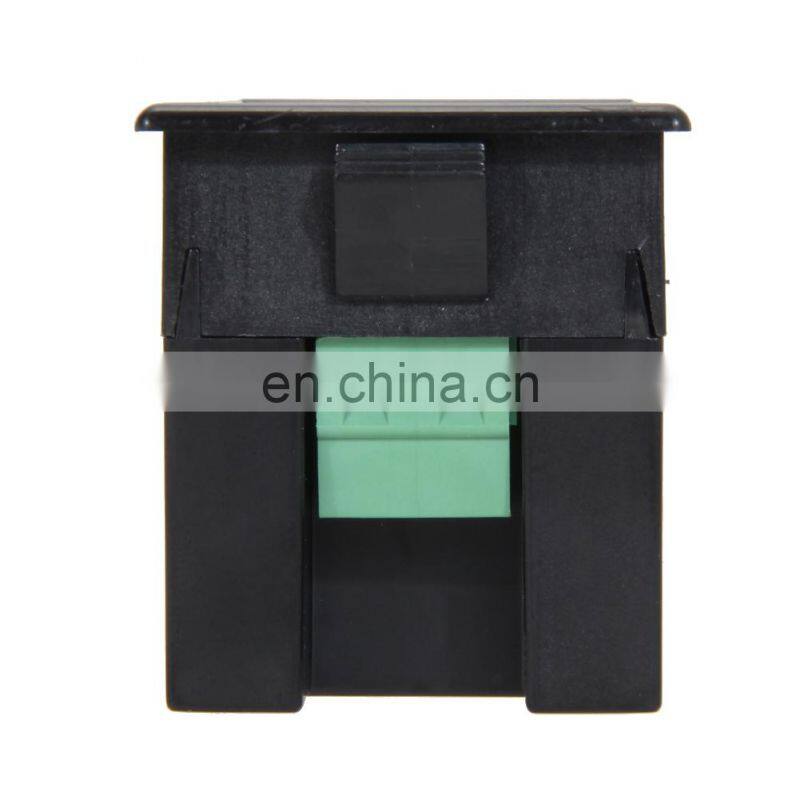

Connect the measure voltage wire to the green terminal;
The default disply power is active power(V), click the suwitch (SAMCK) can, change to the reactive power (VA) and power factor(cosX)
Specification:
Item Size: 79 x 43 x 42mm
Installation Size: 76 x 39mm
Measuring Speed: 2 times per second
Accuracy: 1% ±2 words

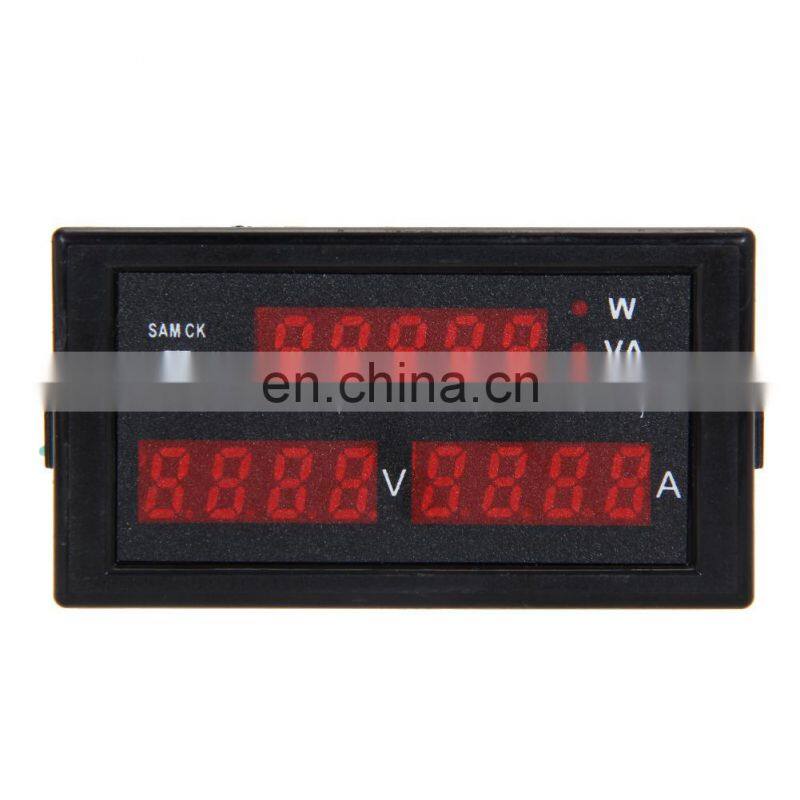

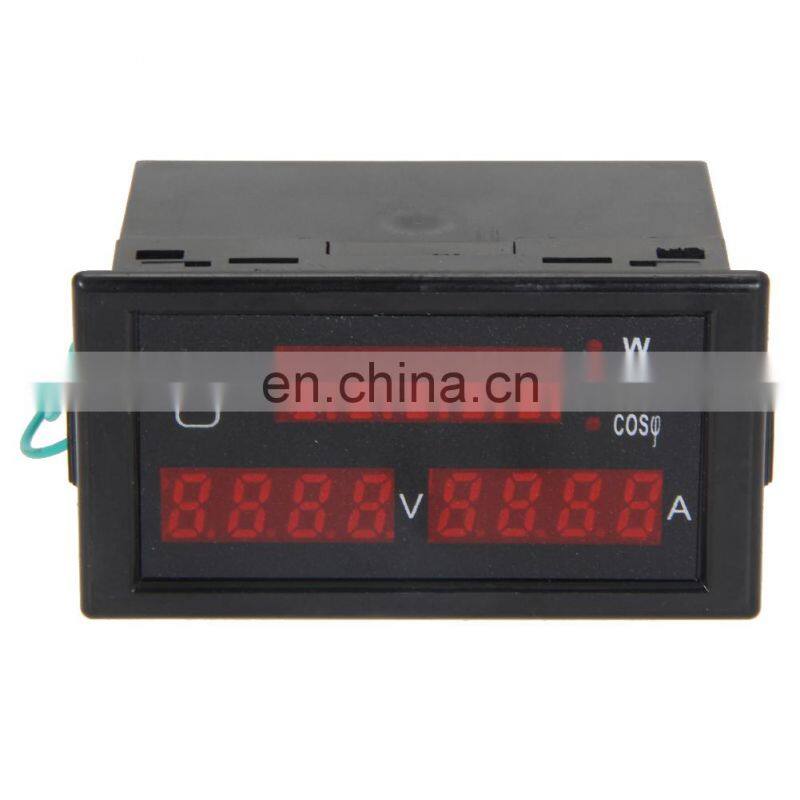

Display Mode:
AC voltage and power factor
Four red 0.32-inch LED digital tube;
Current
Four red 0.32-inch LED digital tube;
Active power, electric energy
Five 0.32-inch LED digital tube;
Measuring Range:
AC voltage:
AC200.0-450.0V;
Current
AC 0.0-100.0A(the resolution radio will change by itself, when input current lower than 10A, the resolution ratio is 0.01A; when input current higher than 10A the resolution ratio is 0.1A);
Active power: 0.0-45000W
Reactive power: 0.0-45000VA
Power factor: 1.000-0.0001.000-0.000
Attention:
Voltage connect to the blue terminal and secondary transformer connect to the blue terminal, wrong connection will destroy the meter.
The only uses for 50Hz-Electric supply. Do not support for square wave, Inverter output and other input, all of these will destroy the meter.
