Home > Products > Power Meter > LED Voltmeter DC 12V 24V 36V 48V Waterproof Lead-acid Lithium Battery Capacity Indicator Temperature Meter Air Battery Voltmeter
LED Voltmeter DC 12V 24V 36V 48V Waterproof Lead-acid Lithium Battery Capacity Indicator Temperature Meter Air Battery Voltmeter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Transformer Switch Mode Power Supply DC 48V 3A 5A 7.5A 10A 15A 20A 150W 240W 350 360W 500W 600W 720W 800W 1000W for Lighting
-
4 IN 1 Color Screen Digital AC Voltmeter Ammeter 80-300v/200-450v 100A Power Energy Meter Current Voltage Monitor CT Coil
-
12V 24V Auto Meter Universal Digital Water Temperature Gauges for Car With Water Temperature Sensor, Voltage Meter
-
EU Standard Smart Home Plug Socket Power Meter Energy Voltage Amps Electricity Usage Watt Monitor
-
Waterproof Led Digital Display Voltmeter Voltage Meter Round Panel Car Boat Dc 12v 24v DS4010, Voltmeter Measure Voltage 5-40V
-
Mini Square 22MM Digital Electric Hertz Frequency HZ Meters 20-75HZ Monitor Tester Power Warning LED Lamp Light Pilot Display
Product Description
Parameters
Feature:
This meter can be set by pressing the battery type: lead-acid batteries, lithium batteries, nickel-metal hydride batteries, also
by pressing the key to set the number of batteries (battery in series).
This meter is suitable for: 12V, 24V, 36V, 48V, 56V, 60V, 64V, 72V, 84V, battery car, electric car, battery pack, balance car, inverter, electric forklift, sightseeing car, electric car, battery power mobile equipment, etc., can also be used for other voltage, power testing purposes.

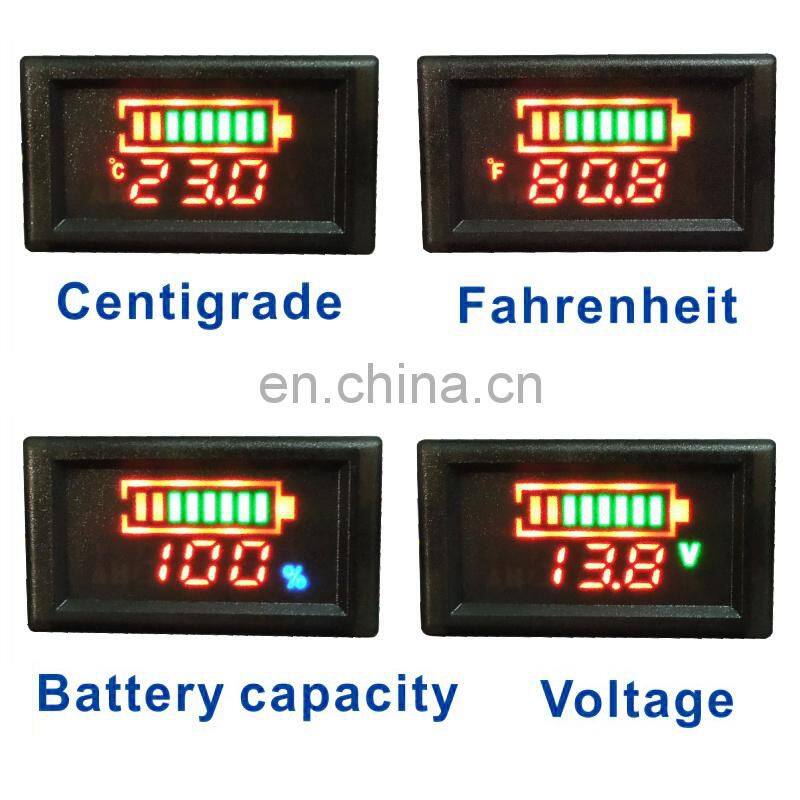

- The screen can display centigrade, Fahrenheit, voltage, percentage of electricity at the same time.
(Note: these three can be switched by the key.)
- Voltage testing range of 6-120V.( Lead-acid battery 12V for this item)
- The 12 display modes are optional.
- Temperature testing range:
Centigrade : -50~120°C Fahrenheit : -58~245°F
- Easy to connect with only two wires.
- Display mode power off memory function.
- With reverse protection function, reverse will not be burnt.
| Energy Resolution | 1% |
| Working current | < 20mA |
| Screen Display | LED |
| Exterior dimension | L54 x W30 x H21mm |
| Opening hole for installing | 47.2 x 27.3mm |
- Voltage measuring range: DC6~120V (wide range),the maximum input voltage can not be exceed 120V
- Test voltage: DC6~120V (decimal point automatic shift)
- The minimum resolution below 100V: 0.1V
- The minimum resolution of 100V: 1V
- measurement rate: more than 500mS/ times
- Voltage measurement accuracy: 1% (+/-2 digits)
- Lead length: >150mm
- Minimum supply voltage: +6V
- Maximum power supply voltage: +120V
- Operating temperature: -10°c ~ +50°c
- Working humidity: 10 ~ 80% (no condensation)
