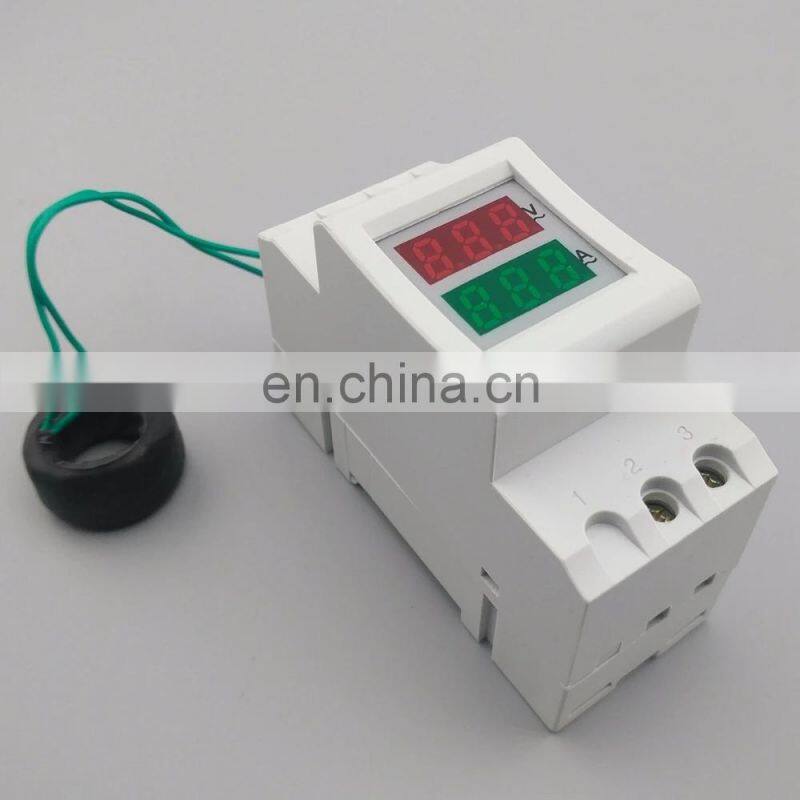

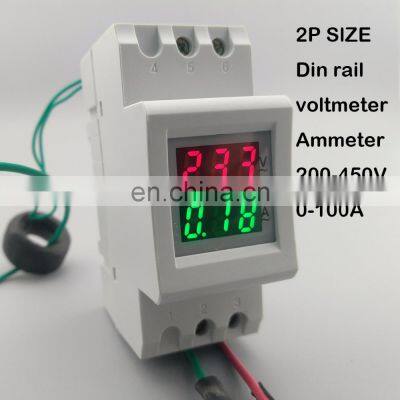

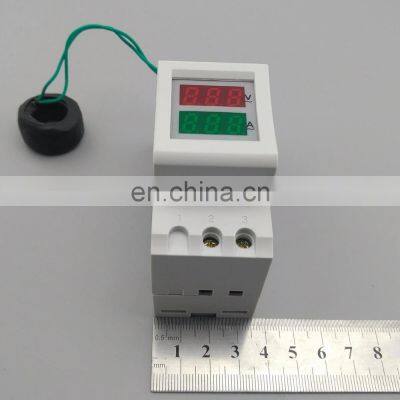

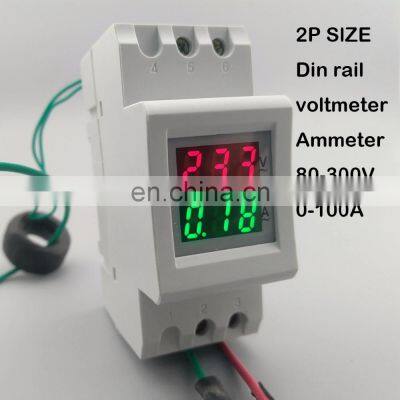

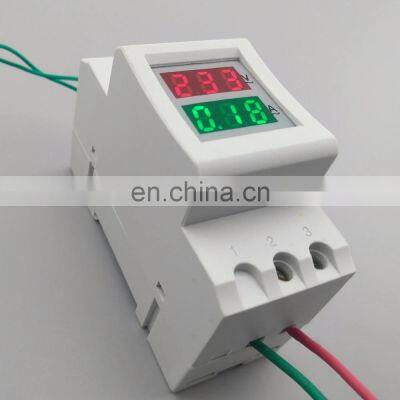

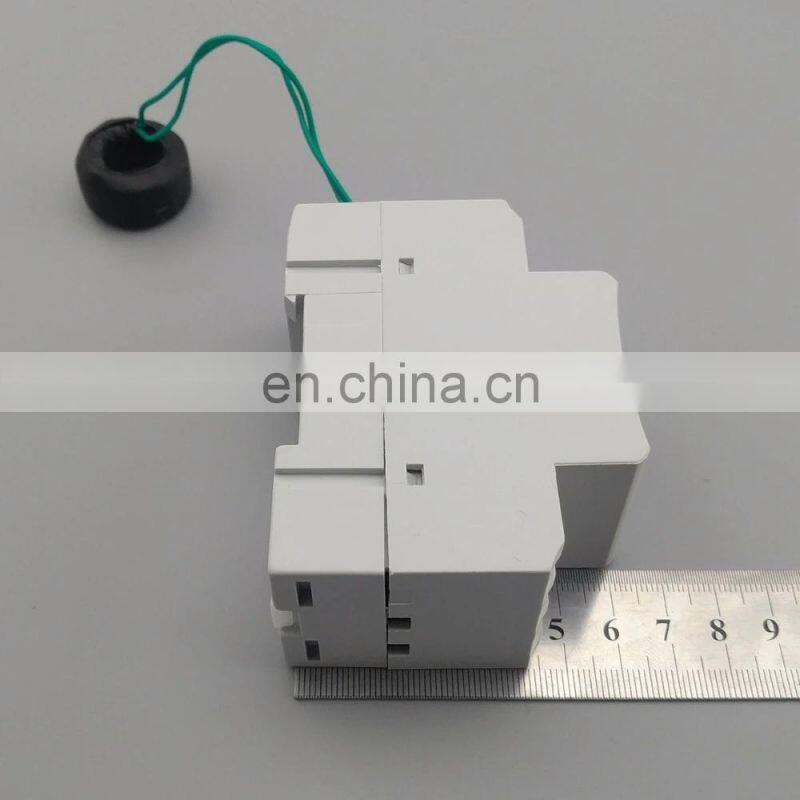

2P 36mm Din Rail Dual LED Display Voltage and Current Meter Voltmeter Ammeter Range AC 80-300V 200-450V 0-100A

specification:

Din-rail digital meter can measure and display AC voltage, AC current at the same time. We will provide a precision small current transformer for the meter.

Technical Indicators

Accuracy: 1%±2 words
Display mode: 0.32-inch Led ( AC voltage with red led and AC current with green led)
Range: AC voltage: AC 80.0-300.0V/ AC 200.0-450.0V ( You should select one type of meter in your order )
         AC Current: AC 0-99.9A (when measure current lower than 10A, the accuracy is 0.01A, when measure current between 10.0 and 99.9A, the accuracy is 0.1, the accuracy auto-change

CT INCLUDE

Wiring:

1.Connect the measuring voltage to the 2 and 3 terminal.
2.Connect the two green wires of secondary current transformer to the 5 and 6 terminal. make the wire (one of the wire (battle line or zero line ) )which connect to the load ) through the hole of current transformer, the direction do not affect the result.
The meter can only use to measure 50Hz/60Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave
