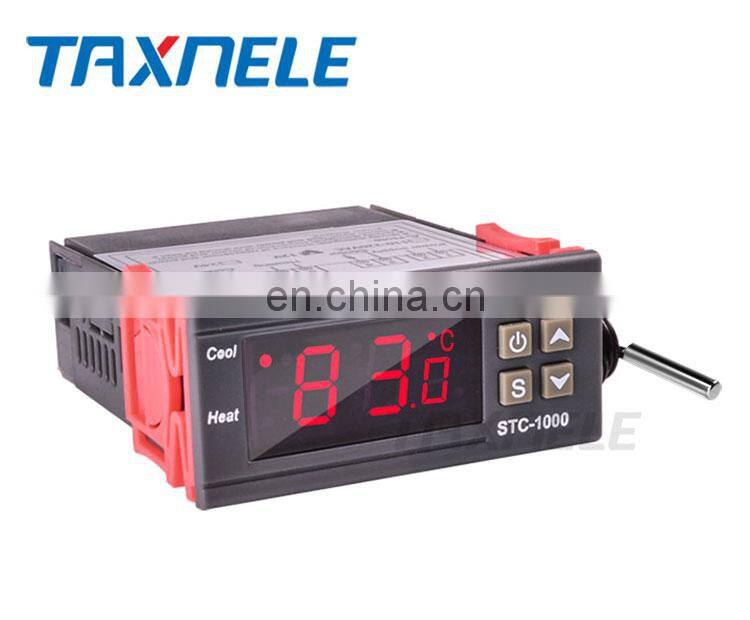

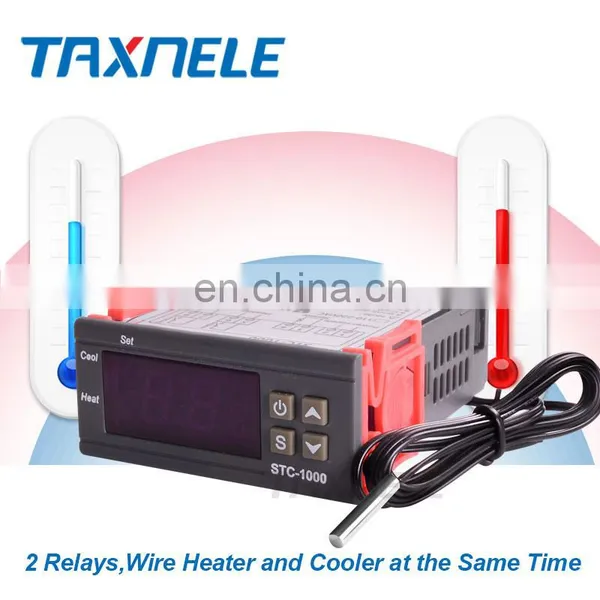

LED Digital Temperature Controller STC-1000 110V-220VAC 10A Two Relay Output Thermostat Heater and Cooler Thermoregulator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Temperature Controller,REX- C100 Controller Temperature Digital Thermostat+ 40DA SSR Relay+ K Thermocouple 1m ProbeNegotiableMOQ: 1 -
High Quality AC220V Bakery Oven Indicator Temperature Controller E5EM K Input Relay Output, Temperature Controller E5emNegotiableMOQ: 1
-
Dual Digital Temperature Controller STC-3018 12V 24V 110-220V Celsius & Fahrenheit Thermoregulator Thermostat SwitchNegotiableMOQ: 1
-
MF-96 Digital PT100 Input 5A Smart Temperature Controller ThermostatNegotiableMOQ: 1
-
XH-M452 DC 12V LED Digital Temperature and Humidity Controller Independent Output 10A Relay Control Load ThermostatNegotiableMOQ: 1
Parameters
| Temperature measuring range | -50 ° C ~ 99 ° C |
| Accuracy | +- 1° C (-50 ° C ~ 70 ° C) |
| Power supply | 110~220VAC , 50/60Hz |
| Sensor: | NTC sensor (1m) |
| Relay contact capacity | Two Relay Cool 10A /250VAC; Heat 10A/250VAC |
| Product Size: | 75x34.5x85 mm |
Mounting Size: |
71x29mm |
Technical Parameters:
Temperature measuring range: -50 ° C ~ 99 ° C
Resolution: 0.1 ° C
Accuracy: +- 1° C (-50 ° C ~ 70 ° C)
Sensor error delay: 1 minute
Power supply:110~220VAC , 50/60Hz; 12V/24V DC
Power consumption: <3W
Sensor:NTC sensor (1PC)
Relay contact capacity:Two Relay Cool 10A /250VAC; Heat 10A/250VAC
Ambient temperature: 0 ° C ~ 60 ° C
Storage temperature: -30 ° C ~ 75 ° C
Relative humidity: 20% ~ 85% (No condensate)
Sensor length: 1.0m

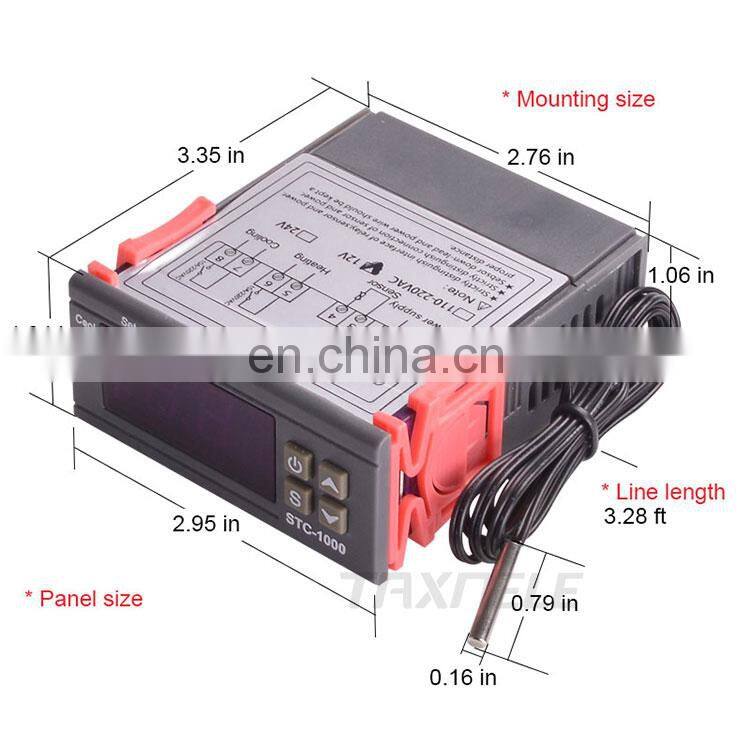

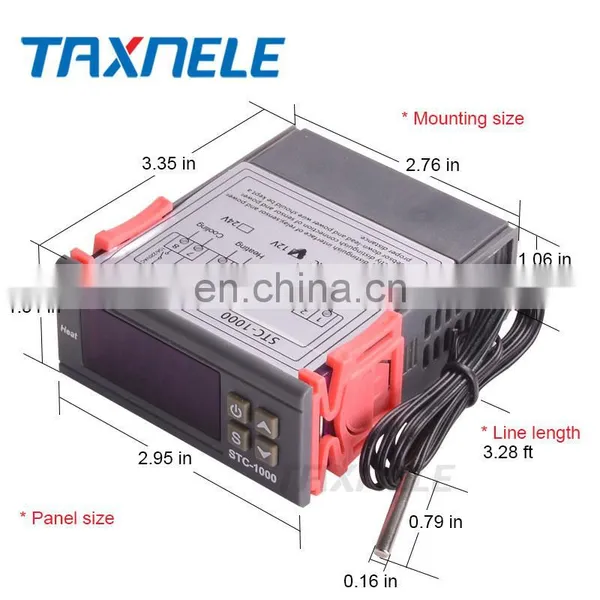

Front Panel Size: 75x34.5mm
Product Size: 75x34.5x85 mm Mounting Size: 71x29mm

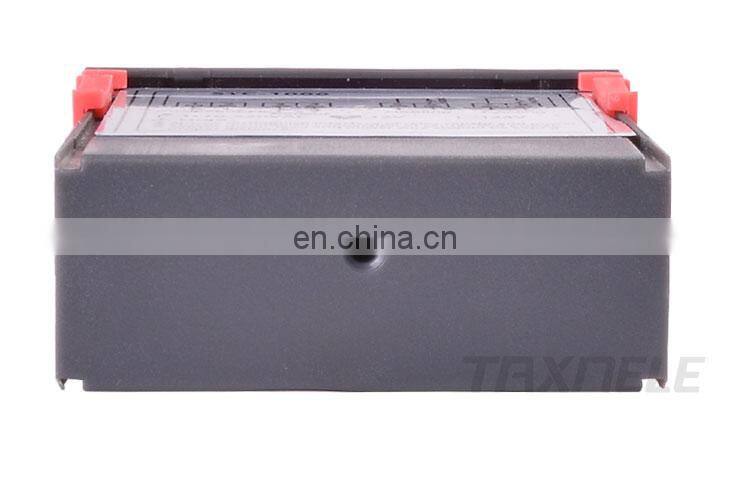

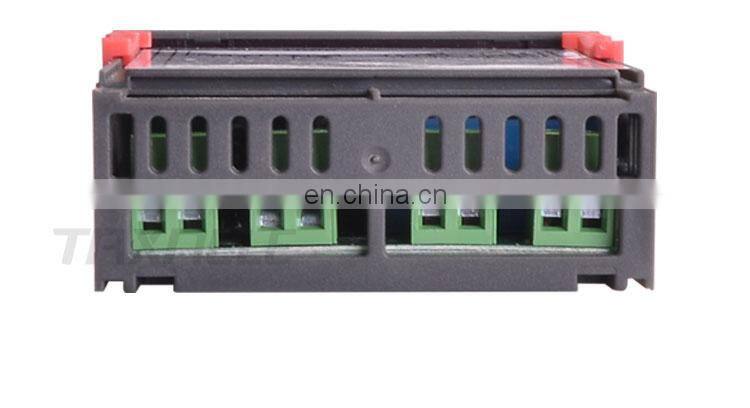

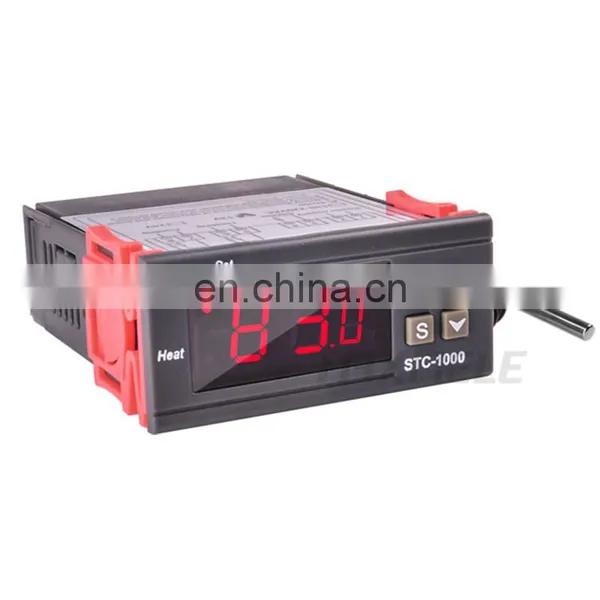

Product display
