Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Digital Temperature Controller,REX- C100 Controller Temperature Digital Thermostat+ 40DA SSR Relay+ K Thermocouple 1m Probe

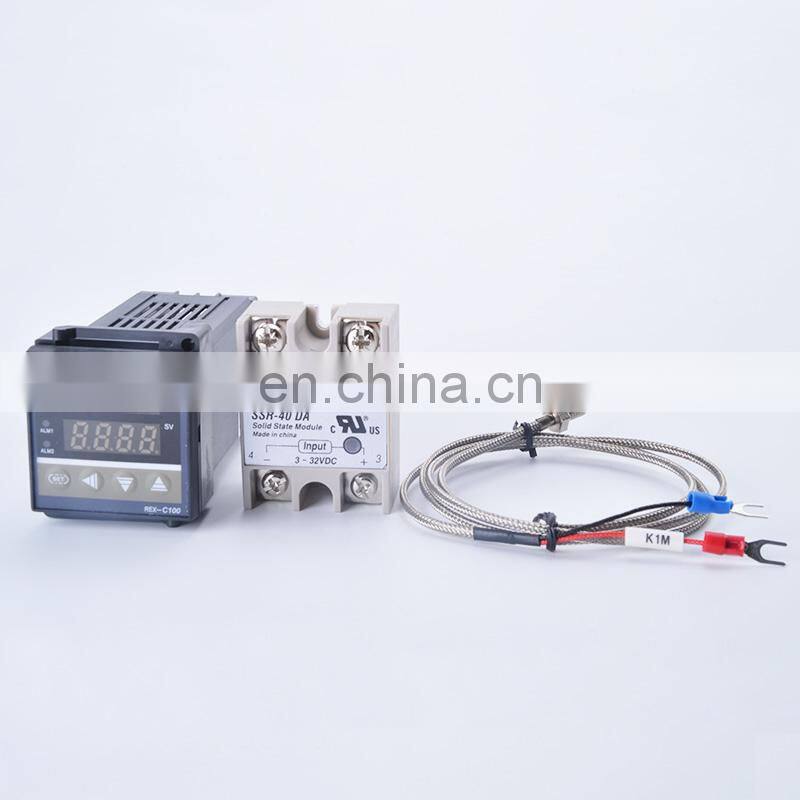

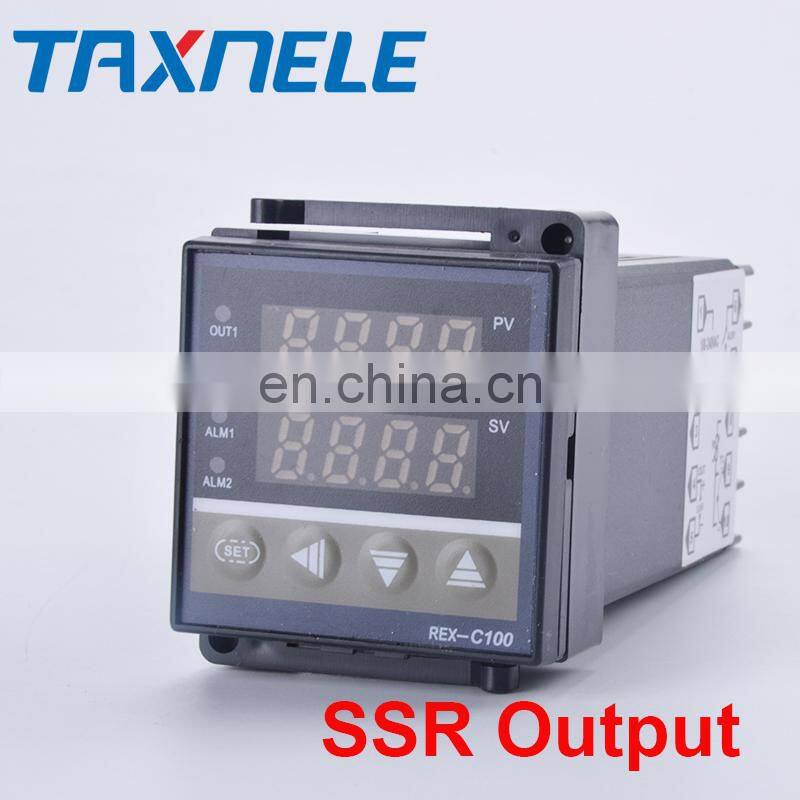

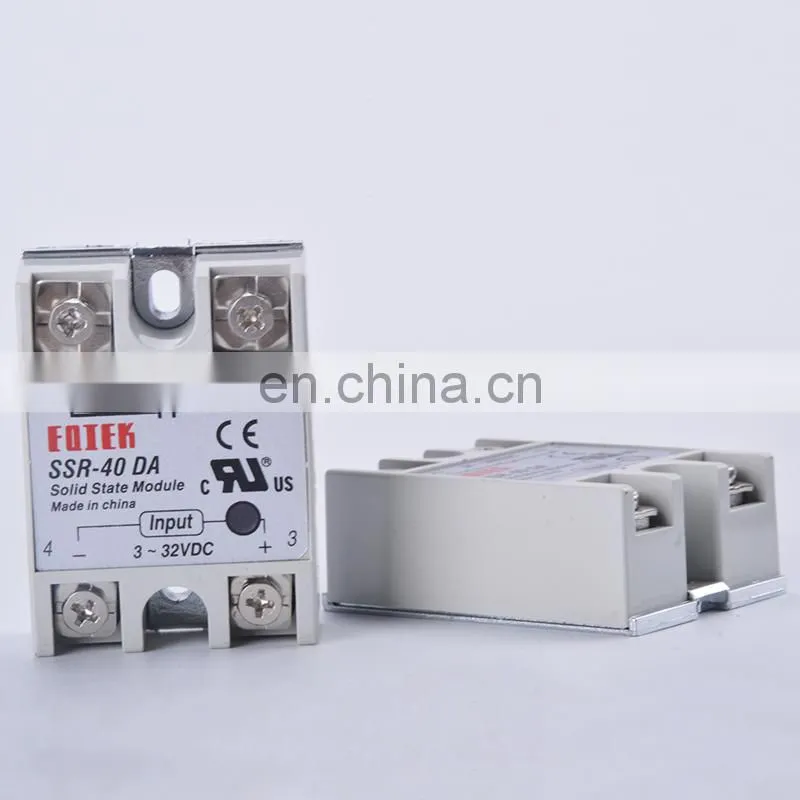

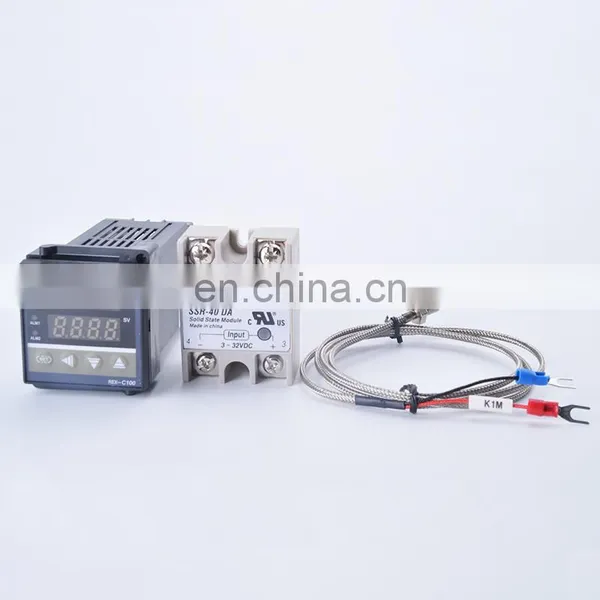

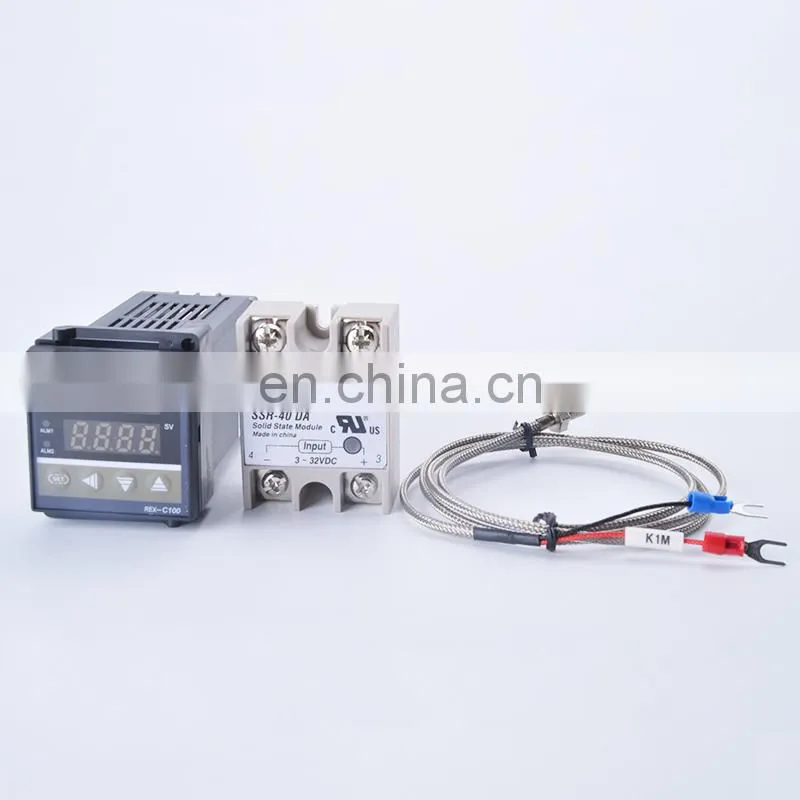

Digital Temperature Controller,REX- C100 Controller Temperature Digital Thermostat+ 40DA SSR Relay+ K Thermocouple 1m Probe
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality AC220V Bakery Oven Indicator Temperature Controller E5EM K Input Relay Output, Temperature Controller E5emNegotiableMOQ: 1 -
Dual Digital Temperature Controller STC-3018 12V 24V 110-220V Celsius & Fahrenheit Thermoregulator Thermostat SwitchNegotiableMOQ: 1
-
MF-96 Digital PT100 Input 5A Smart Temperature Controller ThermostatNegotiableMOQ: 1
-
XH-M452 DC 12V LED Digital Temperature and Humidity Controller Independent Output 10A Relay Control Load ThermostatNegotiableMOQ: 1
-
-50~120C DC 12V Mini Thermostat Regulator Digital Temperature Controller for Incubator Temperature Control Switch PlateNegotiableMOQ: 1
Parameters
Product Main Specifications:
Model number |
External dimensions |
Perforation dimensions |
Output type |
Input type |
||
REX-C100 |
48x48x100 mm |
45 0.50x45 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
||||||
REX-C400 |
48x96x100 mm |
45 0.50x92 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
REX-C410 |
|
|||||
REX-C700 |
72x72x100 mm |
68 0.50x68 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
||||||
REX-C900 |
96x96x100 mm |
92 0.50x92 0.50 mm |
Electromagnetic relay, SSR |
Thermocouple and RTD |
||
|
| Model number | REX-C series |
| Accuracy | ±0.5% of full scale |
| Supply voltage | 100-240Vac, 50/60 Hz |
| Input types-Thermocouple | K, J, R, S, B, E, N, T |
| RTD | Pt100, Cu50 |
| Voltage | 0-5V, 1-5V |
| Current | 0-20mA, 4-20mA |
| Output types | Electromagnetic relay, SSR, current, SCR |
| Power consumption | Less than 5 VA |
| Control method | PID Control (with auto-tuning) or Self-tuning, or ON/OFF |
| Setting method | Touch switch |
| Indication method | 8-segment 4-digital display and LED indication |
| Alarms | Deviation High, Low, High/Low, Band,Process High, Low Set value High, Low |
| Sampling period | 0.5s |
| Electromagnetic compatibility | IEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kv |
| Isolation voltage | >=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminal |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name |
REX-C pid temperature controller, intelligent temperature controller |
Product display
