Features:
1.Automatic conversion of refrigeration and heating mode
2.Control mode of return difference;Temperature display resolution 0.1
3.Multiple alarm mode selection
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid
5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc
Specifications:
| Temperature measuring range | -55 ° C ~ 120 ° C / -66°F~248°F |
| Power supply | 110~220VAC , 50/60Hz; 12V/24V DC |
| Sensor | NTC sensor (1m) |

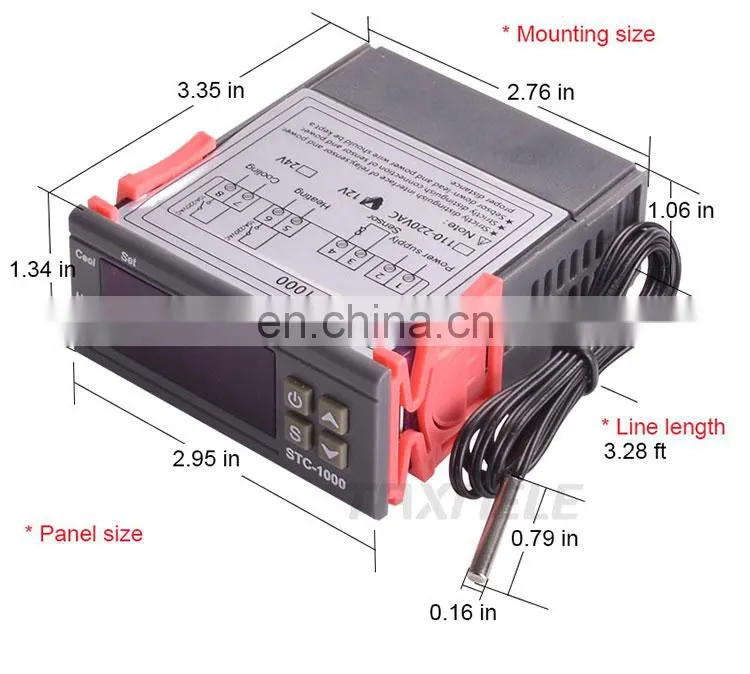

| Product Size | 75x34.5x85 mm |
| Relay contact capacity | 10A/240VAC; Heat 10A/240VAC |
Instruction:

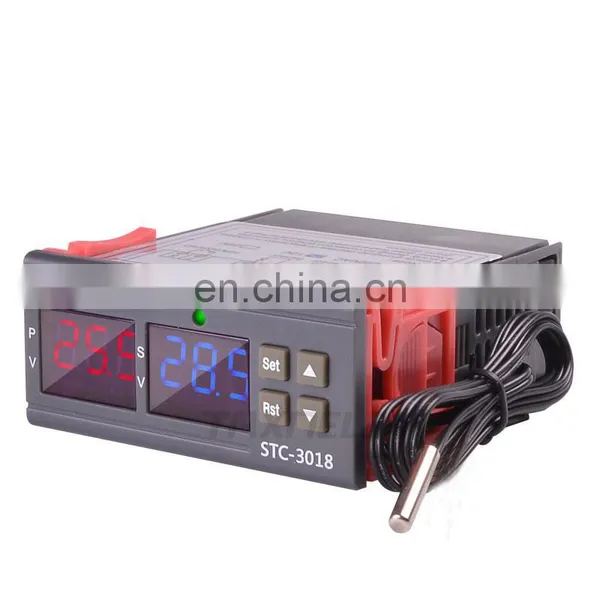

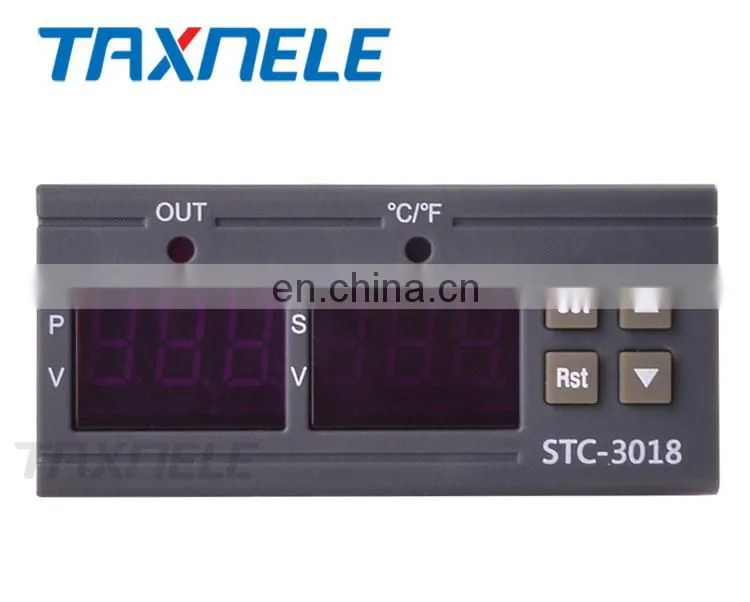

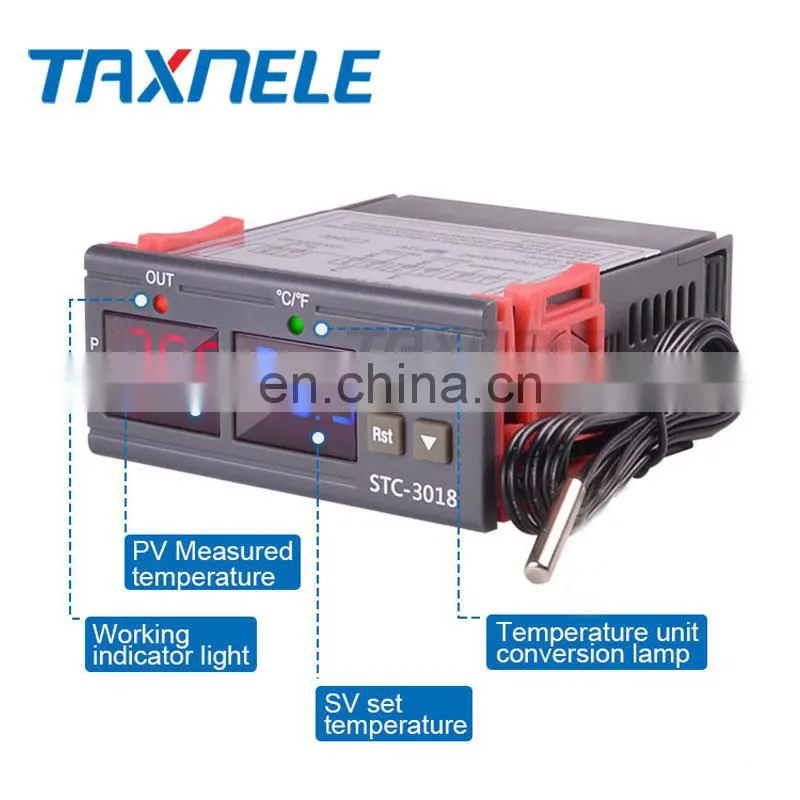

Normal mode: red digital tube on the left shows real-time temperature, blue digital tube on the right shows set temperature.
Setting mode: red digital tube on the left displays setting mode,blue digital tube on the right displays setting contents.
Code Instruction:
Code |
Function |
Set Range |
Default |
|
Start or Stop Temperature |
-55~120°C/-67~248°F |
0°C/68°F |
P0 |
Working mode |
H |
H/C |
P1 |
Difference set value |
0.2-10 |
2 |
P2 |
High temperature alarm value |
-55~120°C/-67~248°F |
80°C/176°F |
P3 |
Low temperature alarm value |
-55~120°C/-67~248°F |
-55°C/-67°F |
P4 |
Temperature calibration value |
-10.0°C~10.0°C |
0 |
P5 |
Compressor delay time |
0-60Min |
0 |
P6 |
Display mode |
C/F |
C |
