W3230 DC 12V 24V 110V-220V AC Digital Temperature Controller LED Display Thermostat With Heating Cooling Control Instrument
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HTC-1 Digital LCD Electronic Thermometer Humidity Meter Hygrometer Weather Station Indoor With Alarm ClockNegotiableMOQ: 1 -
TP-01A TP01A TP 01A K-type Length Wire Temperature Test Thermocouple Sensor Probe New 100cmNegotiableMOQ: 1
-
1PCS HTC-1 Indoor Room LCD Electronic Temperature Humidity Meter Digital Thermometer Hygrometer Weather Station Alarm ClockNegotiableMOQ: 1
-
LED Digital Temperature Controller STC-1000 110V-220VAC 10A Two Relay Output Thermostat Heater and Cooler ThermoregulatorNegotiableMOQ: 1
-
Digital Temperature Controller,REX- C100 Controller Temperature Digital Thermostat+ 40DA SSR Relay+ K Thermocouple 1m ProbeNegotiableMOQ: 1
Parameters
Feature:
- Mini temperature controller.
- With clear LED display for better readability.
- Wide temperature measuring range.
- Heating or cooling control.
- All parameters setting can be saved after short circuit.
- Relay output.
- High Control precision 0.1 centigrade
- Can be used for domestic freezer, water tanks, refrigerator,
- industrial chiller, steamer, industrial equipment and other
- temperature-controlled system.
Specification:

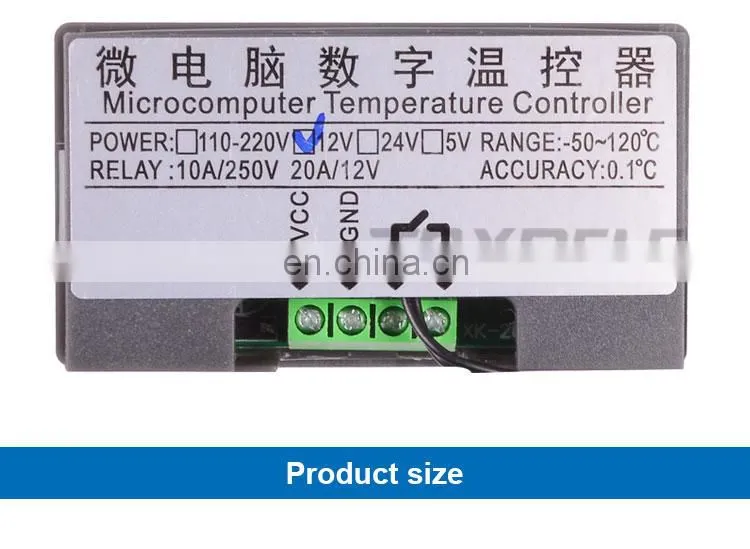

| Power Supply | 12VDC,24VDC,110-220VAC |
| Temperature Control Range | -55° C-120° C |
| Resolution Ratio | 0.1°C(-9.9-99.9); 1°C(other range) |
| Color of Displaying | Red/blue |
| Measurement accuracy | ±0.1°C |
| Control accuracy | 0.1°C |
| Sensor | NTC10K Waterproof sensor |
| Output | Relay Contact Capacity 10A/220V/20A 12V |
| Environmental requirements | -10-60°C , humidity 20%-85%RH |

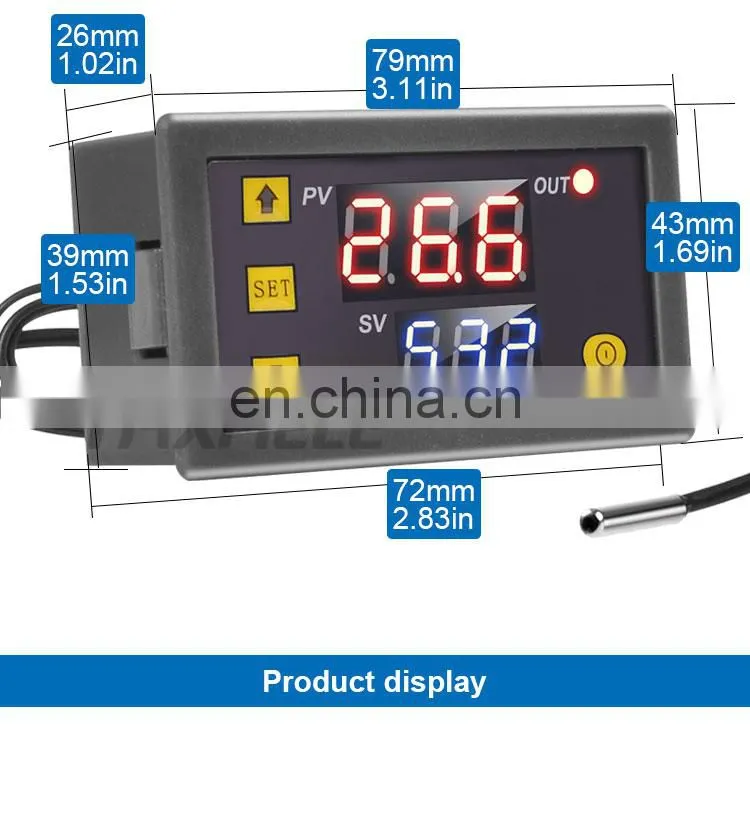

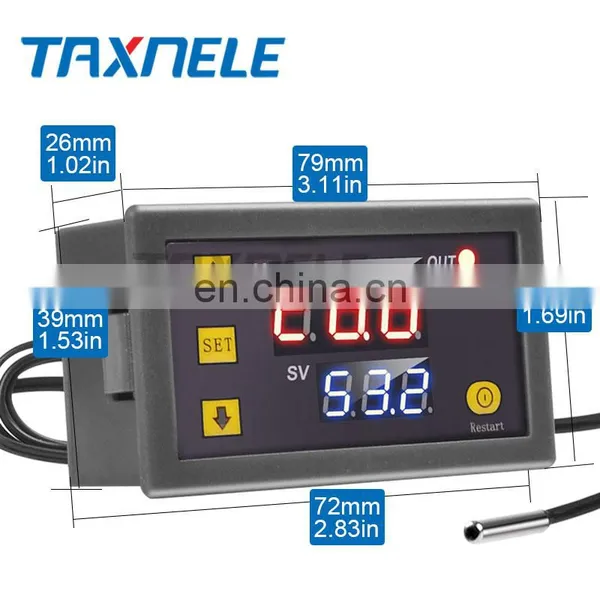

| Dimension | 79mm *43mm*26mm |

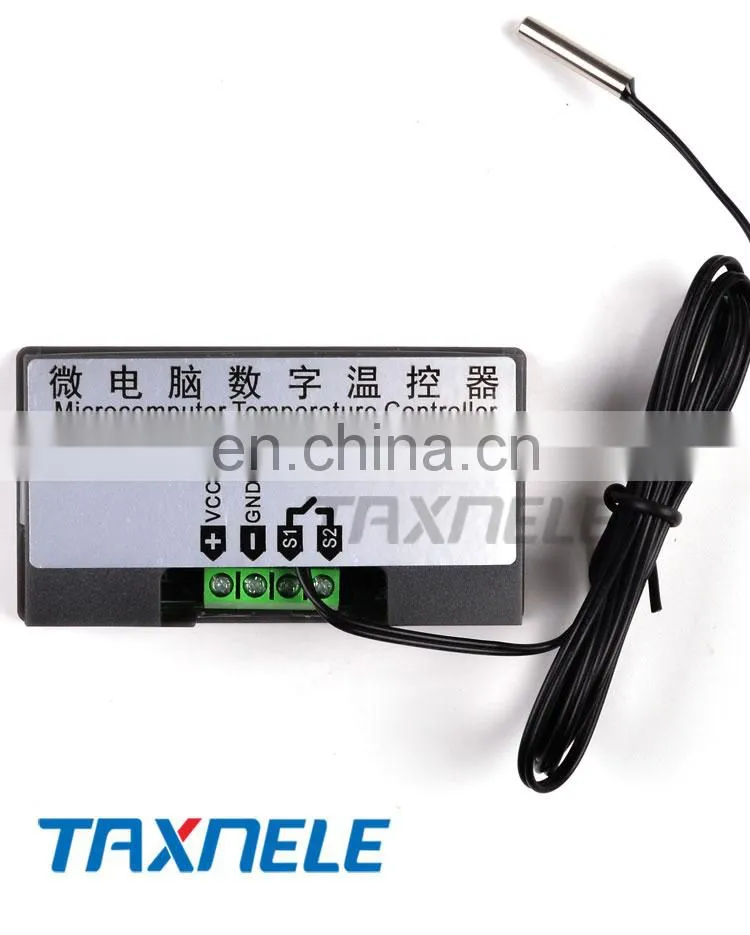

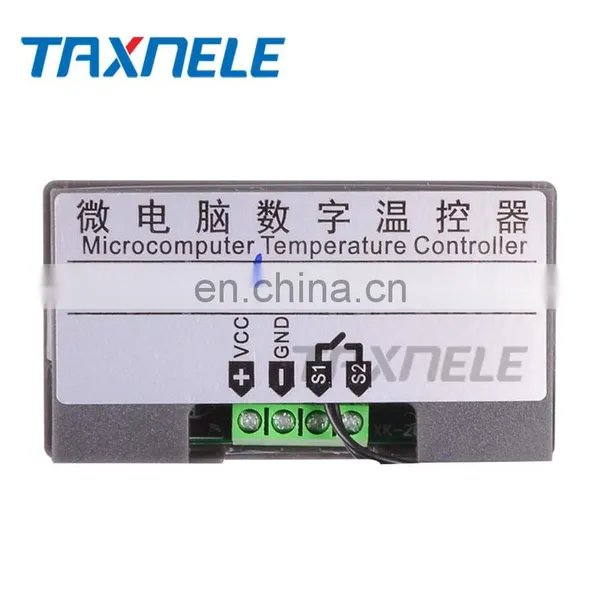

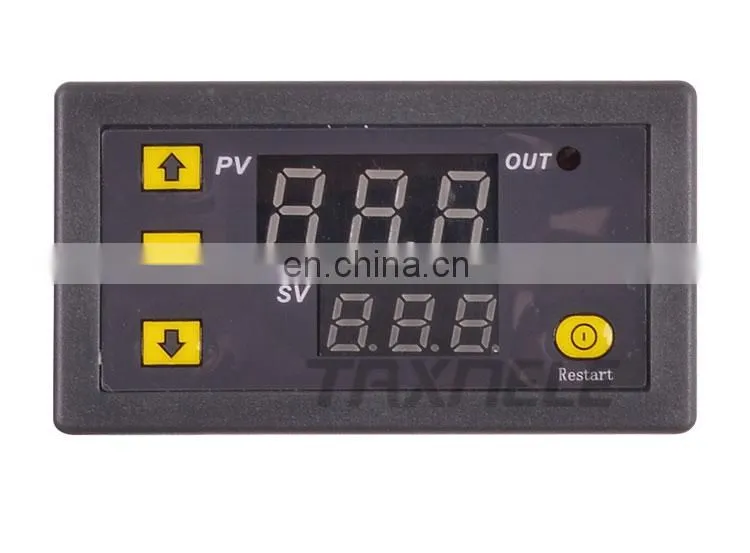

Product display
