Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay

Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay thumbnail-1
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay thumbnail-2
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay thumbnail-3
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay thumbnail-4
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay thumbnail-5
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay photo-1
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay photo-2
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay photo-3
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay photo-4
Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output Solid State Relay photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Yueqing Taixin Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

                              1.Parameter

Description:



SSR -40DA Single phase Solid state relay

Load Current 40A
Load Voltage  24~380VAC
Control Voltage 3~32VDC
Control Current 3~25MA
On Voltage     ≤ 1.5VAC
Off Leakage Current ≤4MA
On-off Time   ≤ 10MS
Dielectric Strengt 2500VAC
Insulation Resistance 100M Ω /500VDC
Ambient Temperature -25~+75°C
Work instruction LED

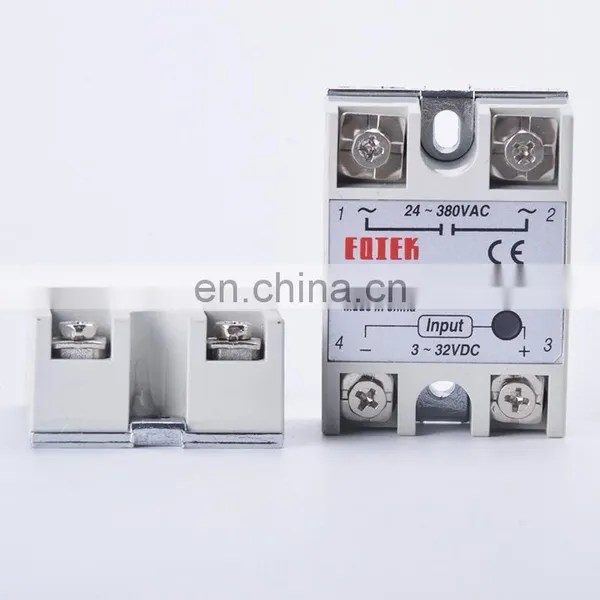

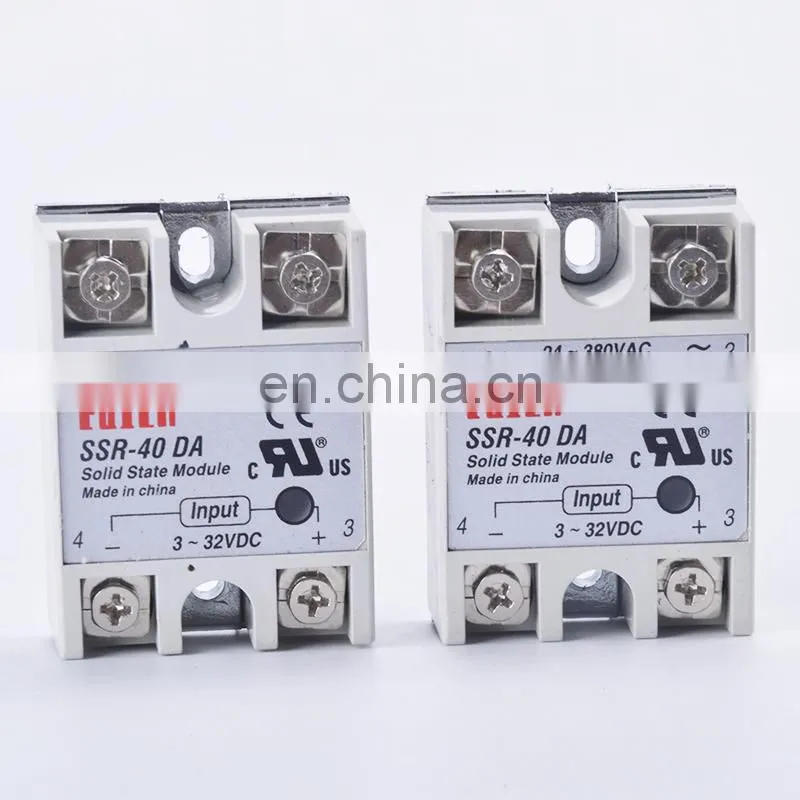

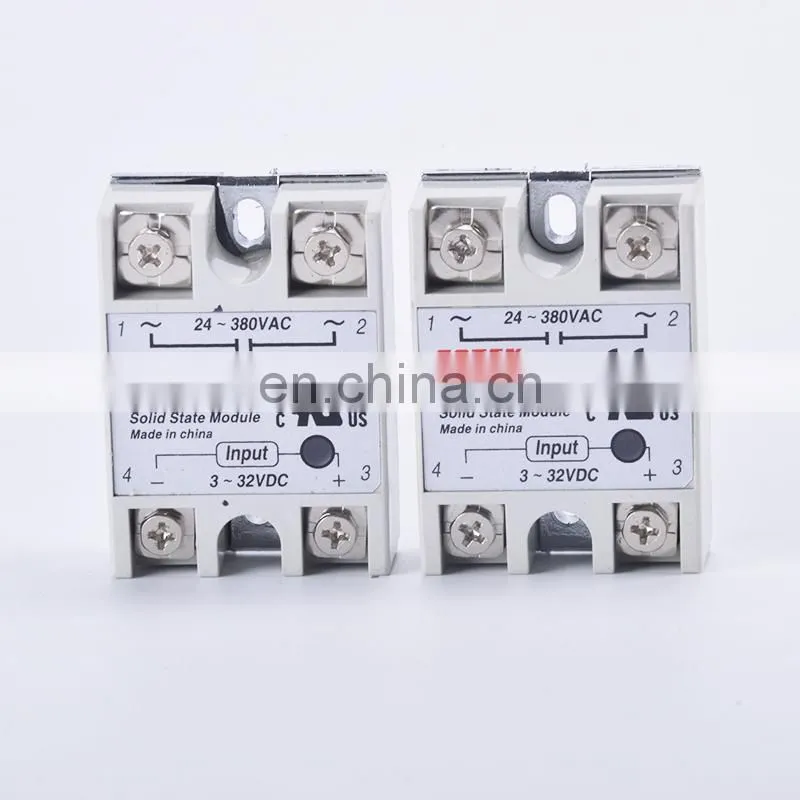

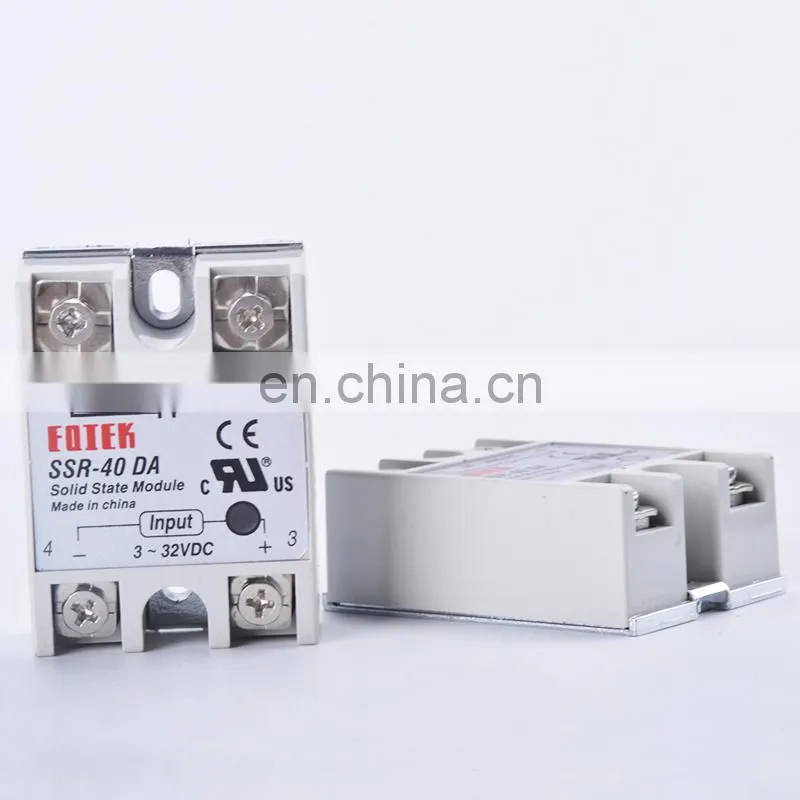

                                                                                          2.Product display


Single Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output solid state relaySingle Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output solid state relaySingle Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output solid state relaySingle Phase Solid State Relay SSR-40DA SSR-25DA SSR-10DA DC To AC 3-32VDC Input 24-380VAC Output solid state relay
