Harmonic electric parameter tester, 0.5 class automatic harmonic power meter
Products Features:

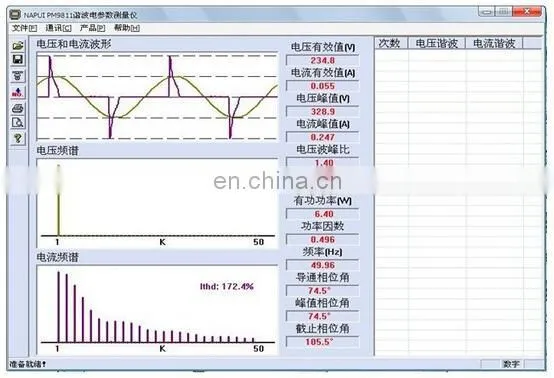

LED digital screen display: voltage, current, power, power factor/frequency, 2-50 times Harmonic
Can be set current and power lower and upper alarm function
All measurements are Trms
Not affected by external noise
Support data locking
Switch Range
Areas of Application
Power consumption test for household appliance
Power consumption test for the air-condition
Power consumption test for light products
Power consumption test for electric machine and Motor
Power consumption test for chargers and switching power supply
|
Product Name |
PM9811 |
|
Product Type |
Harmonic Type |
|
Measuring items |
Voltage V, current A, Active power W, Power factor PF, Frequency Hz, 2-50 times harmonic |
|
Measuring Model |
Trms |
|
Voltage Range |
5V~600V AC Peak Voltage:700V |
|
Current Range |
0.5mA~20A AC Peak Current:23A |
|
Power Range |
0.1W-12kW(U*I*PF) |
|
Power factor |
0.001-1.000 |
|
Frequency Range |
45-65Hz |
|
Basic Accuracy |
±(0.4%read+ 0.1%range) |
|
Data refresh cycle |
3tims/s |
|
Input impedance |
2MΩ(All Voltage) |
|
Power Supply |
AC 100-240V 45-440Hz; DC 100-300V |
|
Communication |
Standard RS232 or RS485, Optional rely output function |
|
AC/DC/RMS |
AC |
|
AD Converter |
The speed is 8K/S, voltage and current simultaneous sampling |
|
Weight |
1.7KG |
|
Dimension |
W×H×D(225mm×112mm×355mm)(Without Package) |
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Buyer are responsible for all import fees.
Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.
All the power meter waranty are 12 months.
All the items are EXW.
Q: 1. English version is available?
A: Yes
Q: 2. Does it have the function of Communication?
A: Yes, there have RS232 or RS485 (Optional).
Q: 3. What is the lead time for delivery?
A:7 workdays according to your specific requirement
Q: 4. Do you have any MOQ limit?
A: 1pc
Q: 5. what express do you often use?
A: DHL, UPS, FedEx,etc.Any method you can choose!
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T, L/C,Paypal, etc.
Q: 7.Can you make OEM service?
A: Yeah,we can!
