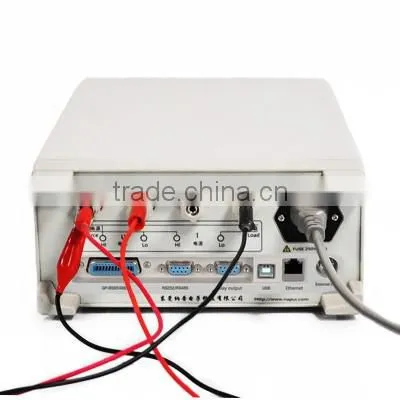

220v Digital power meter for led lamp test
- 1000 per Month
- T/T Credit Card
You May Like
-
NAPUI PM9801 20A Single phase AC alarm Digital parameter instrument
-
RS232 RS485 Communication Digital Watts Meter Factor Voltage Current Power Meter PM9812 with good quality
-
AC single phase active power meter with alarm
-
0.5 Class Digital Power Meter RS232 RS485 Communication Electrical Parameters Analyser
-
220v AC Digital multifunction power analyzer
-
Optional RS232 or RS485 AC/DC factory price digital power meter
Product Description

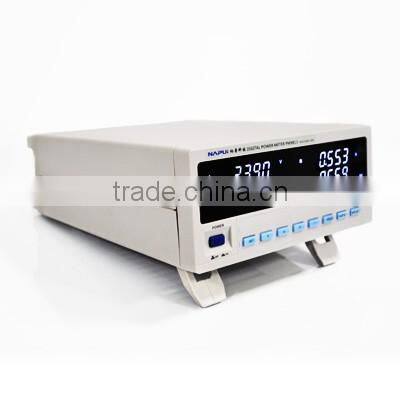

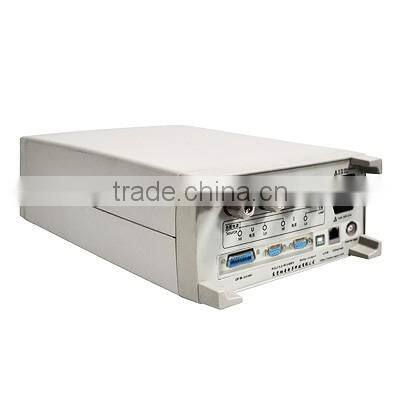

220v Digital power meter for led lamp test
Product Features:
1. Four windows LED display, voltage, current, power, power factor/frequency at the same time;
2. All measurements are TRMS;
3. Automatic range;
4. Accuracy: 0.5 ;
5. Not affected by external noise ;
6. Suitable for various electricity situations with 100-240V ac power supply;
7. Its shell uses soft rubber material which is beautiful shatterproof and durable;

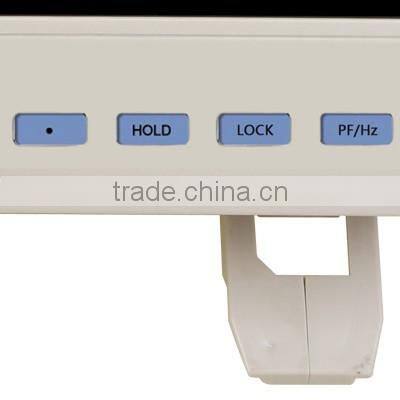

8. Support data latching ;
9. Can set the upper and lower limit for alarm function ;
10. The product is suitable for uses in the production line test, such as lighting products, home appliances, electrical machine products, power products. etc.
Areas of Application:
Power consumption test for household appliance;
Power consumption test for the air-condition;
Power consumption for light products;

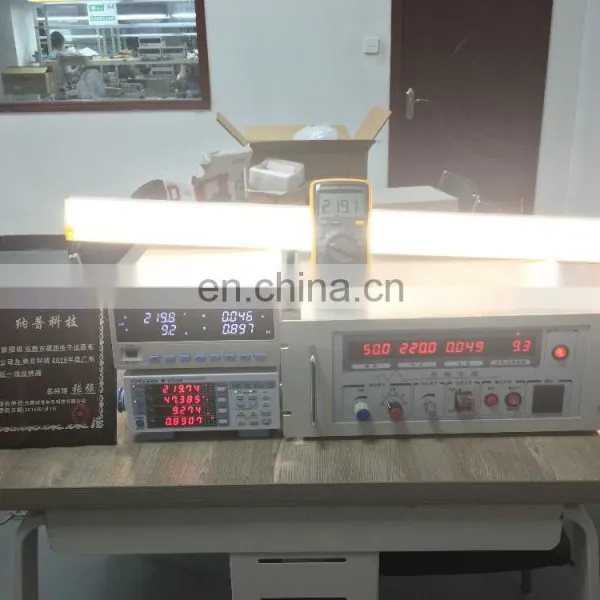

Powerconsumption test for LED lamps;
Test for electrical machine and motor;
Test for chargers and switching power supply.
|
Single Phase |
|
|
Display |
|
|
Measuring items |
Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz |
|
Voltage Range |
3V~600V AC(Switch the range automatically) Peak Voltage:700V AC Min test voltage:3V(Under 3V, can be Customized) |
|
Current Range |
5mA~20A AC (Switch the range automatically) Peak Current:26A AC Min test current :5mA AC (Under 5mA, can be Customized) |
|
Power Range |
0.1W-12KW |
|
Power factor range |
0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
|
The frequency range |
45-65Hz |
|
Communication Interface |

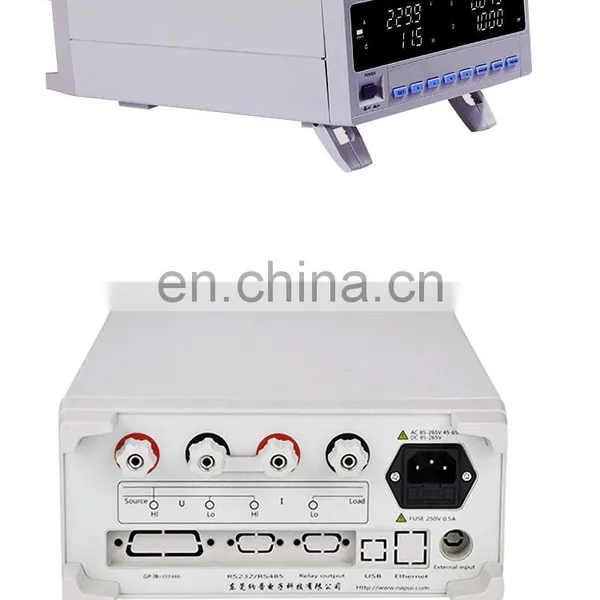

Optional RS232 or RS485, Relay output function |
|
±(0.4% reading +0.1%range+1 digit) |
|
|
Measuring Speed |
Five times per second |
|
Input Impedance |
About 2MΩ(All voltage) |
|
Power Supply |
100V~250V AC, 45-400Hz, 100V-300V DC |
|
Volume and weight |
355mm(L)*225mm(W)*112mm(H), Hole size:225mm(W)*99mm(H)≈1.7KG |
|
Attachment |
Power line, specification, Warranty card |
Company Details as below:

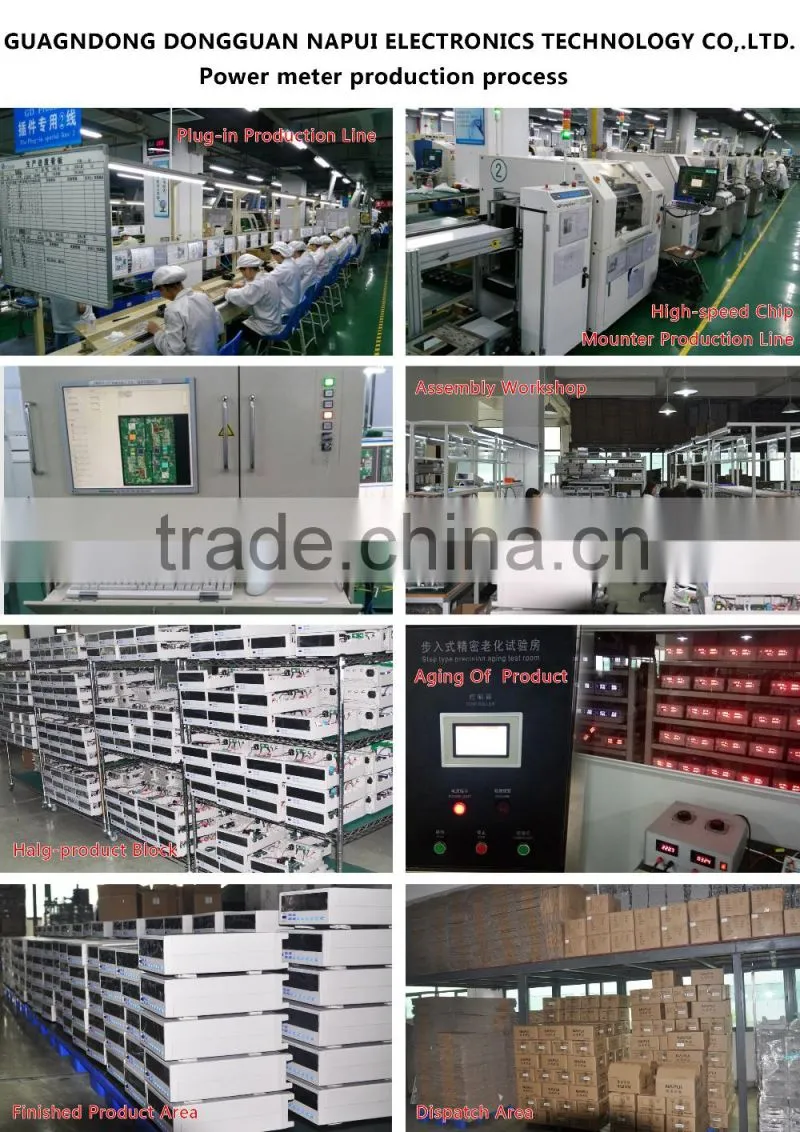

Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.
All the power meter waranty are 12 months.All the items are EXW.
Q: 1. English version is available?
A: Yes
Q: 2. Does it have the function of Communication?
A: Yes, there have RS232 or RS485 (Optional).
Q: 3. What is the lead time for delivery?
A:7 workdays according to your specific requirement
Q: 4. Do you have any MOQ limit?
A: 1pc
Q: 5. what express do you often use?
A: DHL, UPS, FedEx,etc.Any method you can choose!
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T, L/C,Paypal, etc.
Q: 7.Can you make OEM service?
A: Yeah,we can!
