Product Description

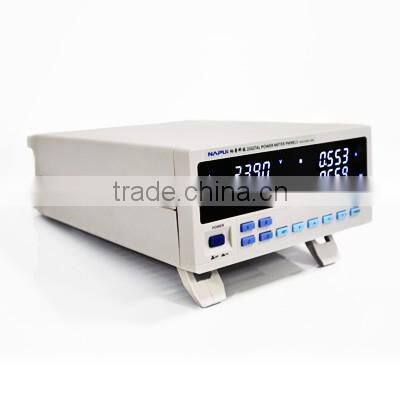

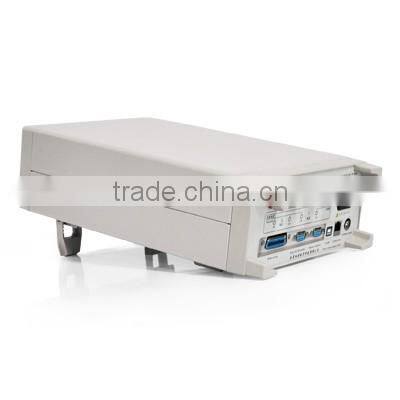

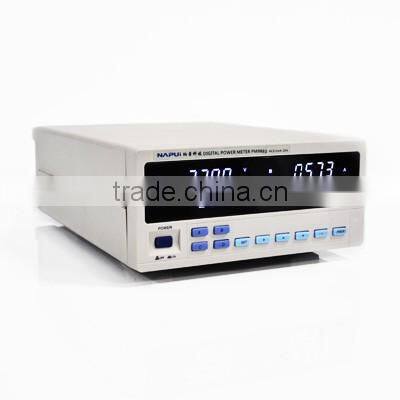

PM9840 Single phase Big current power meter
Description as below:

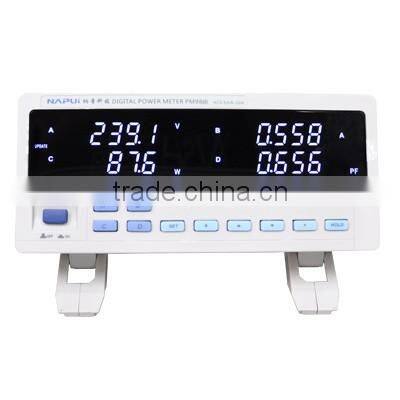

1. Four windows LED display, voltage, current, power, power factor/frequency at the same time
2. All measurements are TRMS
3. Automatic range
4. Accuracy: 0.5
5. The Max test current 40A
6. Not affected by external noise
7. Suitable for various electricity situation with 100-240V ac power supply
8. Its shell uses soft rubber material which is beautiful shatterproof and durable
9. Support data locking
10. Can be set to a lower limit alarm function
11. The product is suitable for uses in the production line test, such as lighting products, home appliances, electrical machine products, power products etc.
Connection | Single Phase |
Display | Four Windows display, Seven-segment digital tube |
Measuring items | Voltage-V, current-A, active power-W, power factor-PF, frequency-HZ |
Measuring form | True Root Mean Square(TRMS) |
Voltage Range | 5v/150V/300v/600v AC(Switch the range automatically Peak Voltage:700v AC Min test voltage:5v(Below 5v, can be custom) |
Current Range | 20mA/2A/8A/20A/40A AC(Switch the range automatically) Peak current:50A AC Min. test current :20mA AC (Below 20mA, can be custom) |
Power Range | 0.1W-9999W |
Power factor range | 0.001-1.000 Compute mode: Watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
The frequency range | 45-400Hz |
Basic Accuracy | ±0.4% reading +0.1%range+1 digital |
Measuring Speed | Five times per second |
Input Impedance | ≥1MΩ(All voltage) |
Power supply | 100~240V AC,50/60 Hz |
Volume and weight | 35.5cm(L)*22.3cm(W)*11.2cm(H), 1.7KG |
Attachment | Power line, fuses, specification |
