AC digital power meter
- 1000 per Month
- T/T Credit Card
Product Description

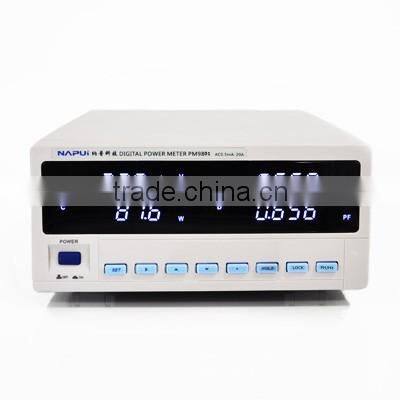

AC digital power meter
Products Features:
1. LED digital screen display, voltage, current, power, power factor/frequency
2. All measurements are Trms
3. Automatic range
4. Accuracy: 0.5
5. Not affected by external noise
6. Support data latching
7. Can be set current and power lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish.
Areas of Application:
Power consumption test for household appliance
Power consumption test for the air-condition
Power consumption for light products
Power consumption test for LED Lamps
Test for electric machine and Motor
Test for chargers and switching power supply
Single Phase |
|
Display |
LED Digital Screen |
Measuring items |
Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz |
Voltage Range |
3V-600V AC(Switch the range automatically Peak Voltage:700V AC Min test voltage:3V(Below 3V, can be customized ) |
Current Range |
5mA-20A AC (Switch the range automatically) Peak Current:26A AC Min. test current :5mA AC (Below 5mA, can be customized) |
Power Range |
0.1W-12KW |
Power factor range |
0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
The frequency range |
45-65Hz |
Communication Interface |
RS232 or RS485 optional |
Basic Accuracy |
±(0.4% reading +0.1%range+1 digit) |
Measuring Speed |
Five times per second |
Input Impedance |
About 2MΩ(All voltage) |
100~250V AC,45-400Hz, 100-300V DC |
|
Volume and weight |
355mm(L)*225mm(W)*112mm(H),Holesize:225mm(W)*99mm(H)≈1.7KG |
Attachment |
Power line, specification, Software CD, RS232 communication line |
