AC Multifunction Digital Power Meter
- T/T Credit Card
You May Like
-
PM9801 220v Single Phase Power Meter
-
Digital Multifunctional Power Meter and Digital Power Meter
-
0.5 Class 220v AC Alarm Model Power Meter
-
Wholesale PM9801 LED Digital Power Meter
-
PM9840 Good Quality Single Phase Digital Power Meter With 40A AC 5V-600V Multi-function Power Meter
-
PM9806 Harmonic Rs232 Rs485 Communication Digital Power Meter Analyzer
Product Description

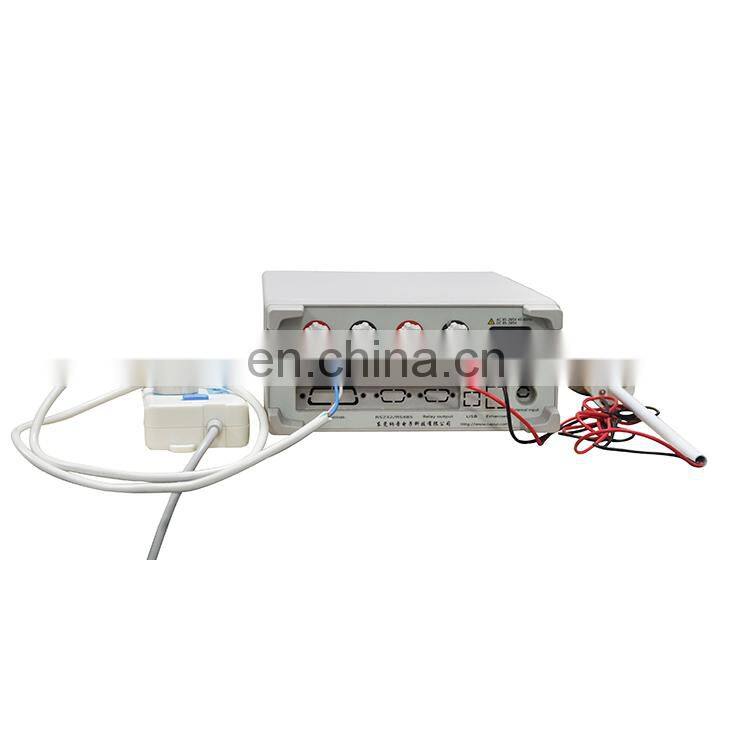

AC multifunction digital power meter
Red LED digital screen display: voltage, current, power, power factor/frequency
All measurements are Trms
Not affected by external noise
Areas of Application
Power consumption test for household appliance
Power consumption test for the air-condition
Power consumption test for LED light products
Power consumption test for electric machine and Motor
|
PM9801 |
|
|
Product Type |
Alarm Type |
|
Measuring Items |
Voltage V, Current A, Active power W, Power factor PF, Frequency Hz |
|
Measuring Model |
Trms |
|
Voltage Range |
3V~600V AC Peak Voltage: 700V |
|
Current Range |
5mA~20A AC Peak Current: 23A |
|
Power Range: |
0.1W-12kW(U*I*PF) |
|
Power factor Range |
0.001-1.000 |
|
Range Model |
A/D chip automatic conversion |
|
Frequency Range |
45-65Hz |
|
Basic Accuracy |
±(0.4%read+ 0.1%range) |
|
Data refresh Cycle |
3tims/s |
|
Input Impedance |
2MΩ(All Voltage) |
|
Power Supply |
AC 100-240V 45-440Hz, DC 100-300V |
|
Communication Interface |
Optional RS232 or 485, rely output function |
|
AC/DC/RMS |
AC |
|
AD Converter |
The speed is 8K/S, voltage and current simultaneous sampling |
|
Weight |
1.7KG |
|
Dimension |
W×H×D(225mm×112mm×355mm)(Without Package) |
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.
All the power meter waranty are 12 months.
All the items are EXW.
Q: 1. English version is available?
A: Yes
Q: 2. Does it have the function of Communication?
A: Yes, there have RS232 or RS485 (Optional).
Q: 3. What is the lead time for delivery?
A:7 workdays according to your specific requirement
Q: 4. Do you have any MOQ limit?
A: 1pc
Q: 5. what express do you often use?
A: DHL, UPS, FedEx,etc.Any method you can choose!
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T, L/C,Paypal, etc.
Q: 7.Can you make OEM service?
A: Yeah,we can!
