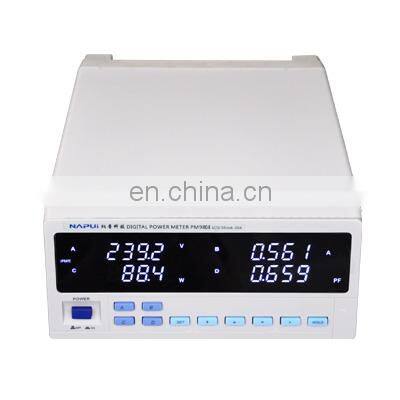

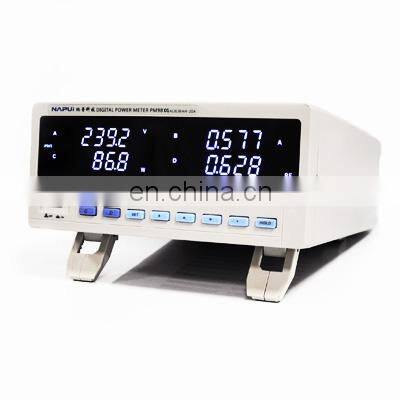

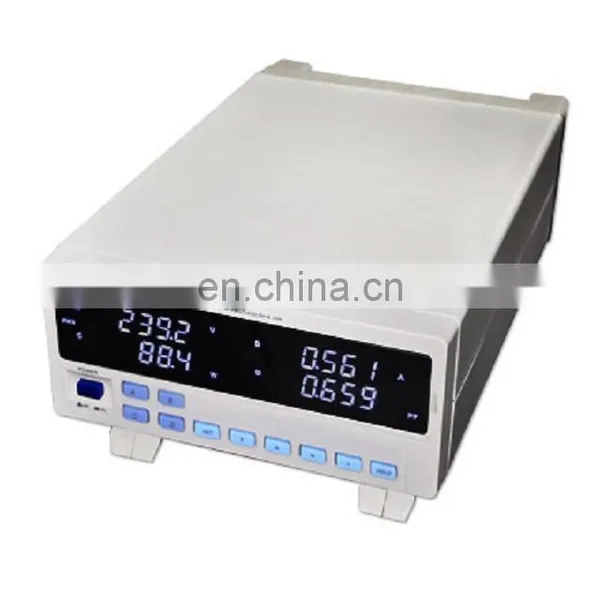

PM9804 Single-phase Digital AC and DC Power Meter Electrical Parameter Tester

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

PM9804 single-phase digital AC and DC power meter electrical parameter tester

Products Features:

1. Can test the AC signal, DC signal

2. Four windows LED display, voltage, current, power, power factor/frequency at the same time

3. All measurements are TRMS

4. Automatic range

5. Accuracy: 0.5

6. Not affected by external noise

7. Suitable for various electricity situation with 100-240V ac power supply

8. Its shell uses soft rubber material which is beautiful shatterproof and durable

9. Support data latching

10. Can set the upper and lower limit for alarm function

11. The product is suitable for uses in the production line test, such as lighting products, home appliances, electrical machine products, power products etc.

Specification:

Connection	Single Phase
Display	LED Digital Screen
Measuring items	Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz
Voltage Range AC/DC	5V-600V AC/DC(Switch the range automatically Peak Voltage:700V AC/DC Min test voltage:5V(Below 5V, can be customized )
Current Range AC/DC	10mA-20A AC/DC (Switch the range automatically) Peak Current:26A AC/DC Min test current :10mA AC/DC( Below 10mA, can be customized)
Power Range(AC/DC)	0.1W-12KW
Power factor Range(AC)	0.001-1.000 Calculation method: Watt(W)/[voltage(V) current(A)]=Power Factor(PF) Note: when t is DC signal, power factor PF display 1.000
The frequency range	45-65Hz Note: when it is DC signal, no frequency display
Communication Interface	Optional RS232 or RS485, Relay output function
Basic Accuracy	±(0.4% reading +0.1%range+1 digit)
Measuring Speed	Five times per second
Input Impedance	About 2MΩ(All voltage)
Power Supply	100~250V AC 50/400Hz, 100-300V DC
Volume and weight	355mm(L)225mm(W)112mm(H),Holesize:225mm(W)*99mm(H)≈1.7KG
Attachment	Power line, Operation Manual, Warranty Card

Areas of Application:

Power consumption test for household appliance;

Power consumption test for the air-condition;

Power consumption for light productsl;

Power consumption test for LED Lamps;

Test for electrical machine and motor;

Test for chargers and switching power supply.
