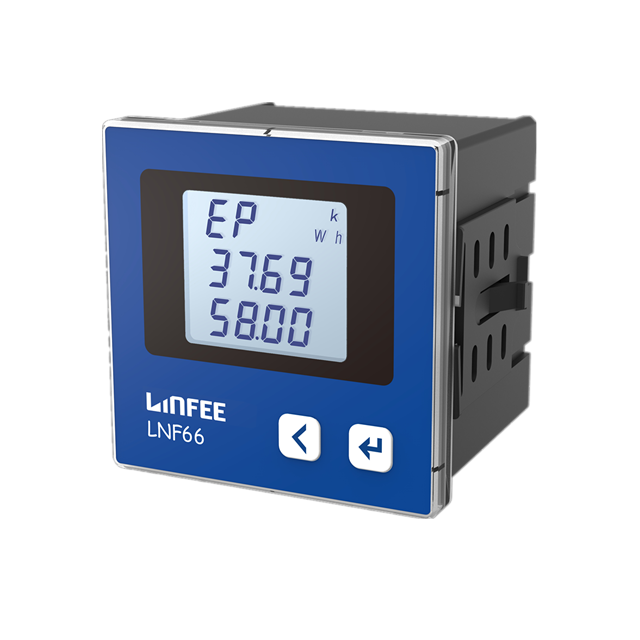

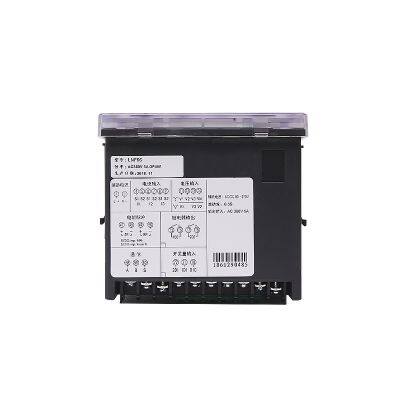

LNF66 smart electricity meter electrical measurements modbus energy meter can measure basic electrical parameters, bi-directional energy, four-quadrant reactive energy and harmonic parameters, etc. It has communication and energy pulse output interface, and can be equipped with digital input and relay output. As an advanced intelligent and digital grid front-end acquisition component, it can be connected to power monitoring systems and energy management systems to realize remote data monitoring.
Advantage
Product name | LNF66 smart electricity meter electrical measurements modbus energy meter |
Voltage range | 3×230/400V |
Overload | Continuous: 1.2Vn Instantaneous: 2Vn/1min |
Currnt range | 3×5A/1A |
Overload | Continuous:1.2Vn Instantaneous:10In/5s |
Working temperature | -10°C -- 55°C |
Relative humidity | ≤95% RH, no condensation |
Protection degree | Front case IP54, rear case IP20 |
Pulse width | 80ms±20% |
Function | LNF66 | |||
Appearance | Display mode | LCD | ||
Panel size(mm) | 96×96 | |||
Real-time measurement | U/I/P/Q/S/PF/F | ▇ | ||
Demand | ▇ | |||
Energy metering | Bi-directional energy | ▇ | ||
Four-quadrant reactive energy | ▇ | |||
Power quality | THD | ▇ | ||
Sub-harmonic content | 2nd - 15th | |||
Sequence component, phase | ▇ | |||
Unbalance | ▇ | |||
RS485 communication interface | ▇ | |||
Digital input | o | |||
Relay output | o | |||
Note: "▇" Yes, "o" Optional. | ||||
LNF66 electric power meter could be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE 3000. SFERE 3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE 3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu province.
Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.
Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.
Q: What is your terms of payment ?
A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
