DC Multi-circuit 3 Phase Multi-functional RTM Digital Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PD194Z-E14C GPRS 850/900/1800/1900 MHz Communication Energy Management MeterNegotiableMOQ: 1 -
DDS1946-L1 Cheap Price Bi-directional RTM Single Phase Energy MeterNegotiableMOQ: 1
-
PD194Z-E14D NB-IoT Band 3/5/8 Comm Remote Power Monitoring MeterNegotiableMOQ: 1
-
PD194Z-E14E LoRa 470/868/915 MHz Comm 3 Phase Multi-functional Power MeterNegotiableMOQ: 1
-
DDS1946-L1 1P2W Multi-functional Din Rail Mini Power MeterNegotiableMOQ: 1
Product Description

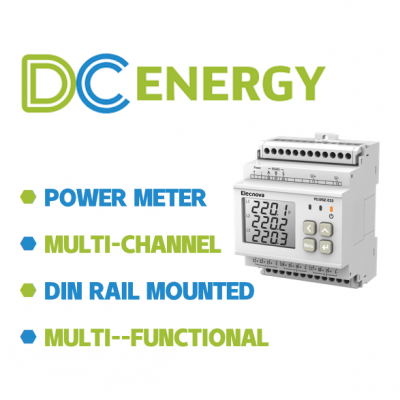

Product Name: DC multi-circuit 3 phase multi-functional RTM digital energy meter

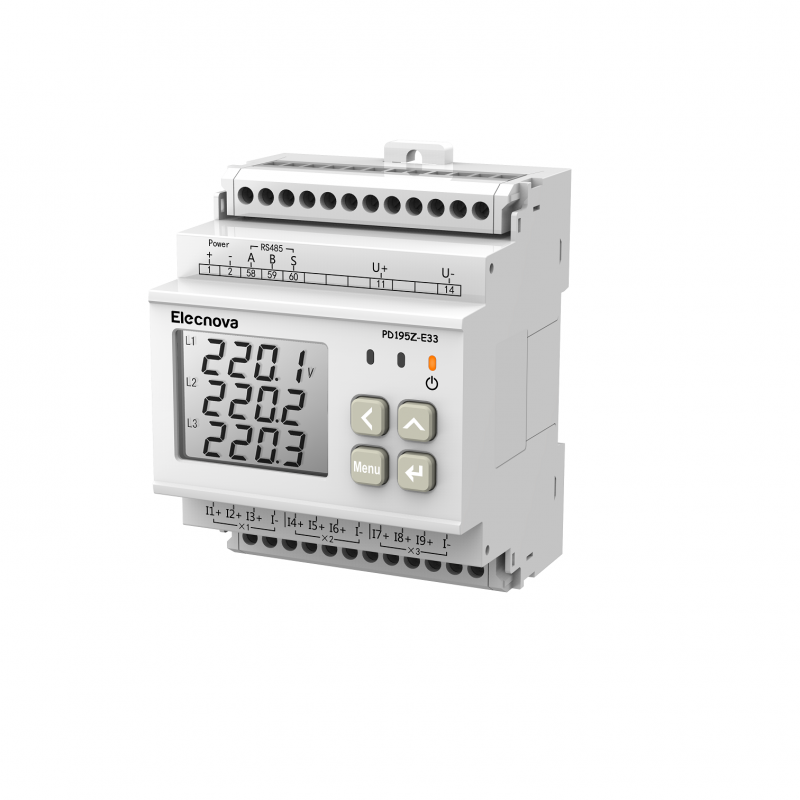

PD195Z-E33 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
PD195Z-E33 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Technical Parameter
Display mode |
LCD |
|
Accuracy |
U/I/P |
0.5 Class |
Energy |
1 Class |
|
Voltage Input |
Rated value |

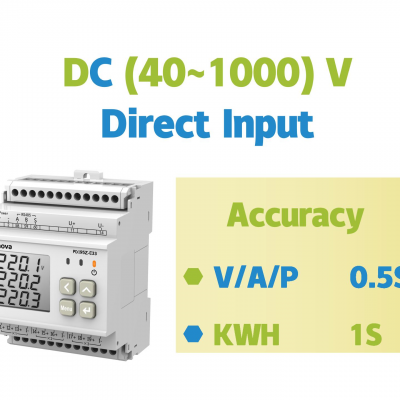

DC 40-1000V direct access |
Overload |
Continuous:1.2Vn |
|
Power consumption |
≤0.2W |
|
Impedance |
≥6MΩ |
|
Current Input |
Rated value |

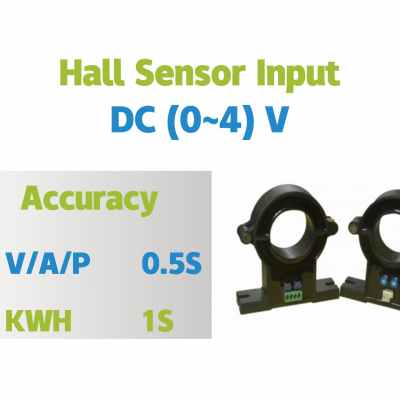

DC 0-4V(external hall sensor) |
Overload |
Continuous:1.2In |
|
Power consumption |
≤0.1mW(each channel) |
|
Auxiliary Power Supply |
Working Range |
AC,DC 80~270V, 50/60Hz |
Consumption |
≤5VA |
|
Communication |
RS485,Modbus-RTU ,2-wire,up to 9600bps |
|
Digital input |
Optocoupler isolation,dry contact type (optional EK1 module)
|
|
Relay output |
Contact capacity: AC 250V/5A, DC 30V/5A |
|
Environment Conditions |
Operating temperature |
-20℃~70℃ |
Storage temperature |
-30℃~80℃ |
|
Relative humidity |
≤93% |
|
Altitude |
≤2500m |
|
Insulation |
≥2kvac |
Application

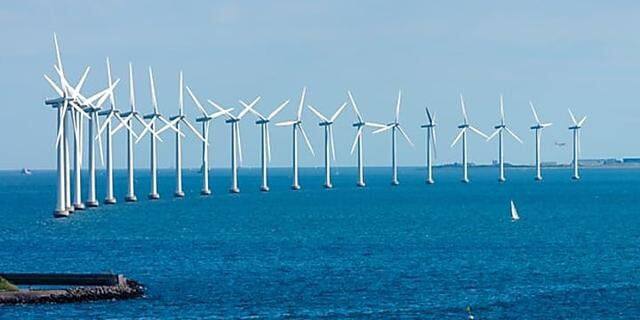

■Wind Power Generation
■Industrial Control
■Remote Power Monitoring
■Din Rail mounting instrument
