DDS1946-1P Single Phase Din Electric Power Smart Energy Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mid Single Phase Multi-functional Digital Din Rail Power Meter
-
DTS1946-4P Mid Approved Din Rail 3 Phase RS485 Communication Energy Meter
-
PD194Z-E20 Din Rail Mounting Electricity Data Logger Power Meter
-
PD195Z-E33 DC Din Rail Energy Meter 16 Multi Channel China Energy Meters
-
Mid Certificated 3 Phase RS485 Communication Energy Meter
-
Din Rail Mounted LCD Display Remote Power Monitoring Device
Product Description
Product Description

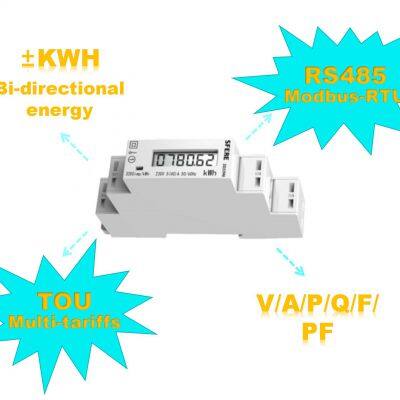

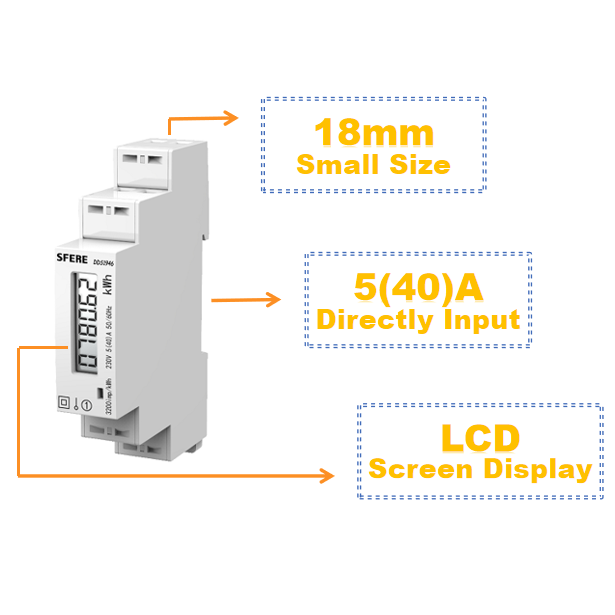

Product Name: DDS1946-1P single phase din electric power smart energy meter
The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.
Technical Parameter
DDS1946-1P DDSF1946-1P | DDS1946-2P DDSF1946-2P | DDS1946 DDSF1946 | DSS1946 DSSF1946 | DTS1946 DTSF1946 | |||||||
Normal Voltage | 230V | 230V | 230V | 3*400V | 3*230/400V | ||||||
Current | Direct input | 5(40)A | 5(100)A | 5(100)A | 5(100)A | 5(100)A | |||||
Via CT input | - | - | 1.5(6)A | 1.5(6)A | 1.5(6)A | ||||||
Accuracy | Class 1(Optional:Class 0.5S) | ||||||||||
Frequency | 45Hz~65Hz | ||||||||||
Voltage Range | 0.8Un~1.2Un | ||||||||||
Start Current | Direct input | 0.004Ib | |||||||||
Via CT input | 0.002In | ||||||||||
Consumption | <2VA | ||||||||||
Energy Pulse | 1 output, pulse width (80±20%) ms | ||||||||||
RTC Error | ≤0.5s/day | ||||||||||
Communication | RS485, Modbus-RTU, 2-wire, up to 9600bps | ||||||||||
IP Degree | Front: IP51 | ||||||||||
Operating Temperature | -10℃ ~ 55℃ | ||||||||||
Storage Temperature | -25℃ ~ 70℃ | ||||||||||
Relative Humidity | ≤93% | ||||||||||
Certificate | CE ISO9001,MID | ||||||||||
Related Products
COMM Module Selection

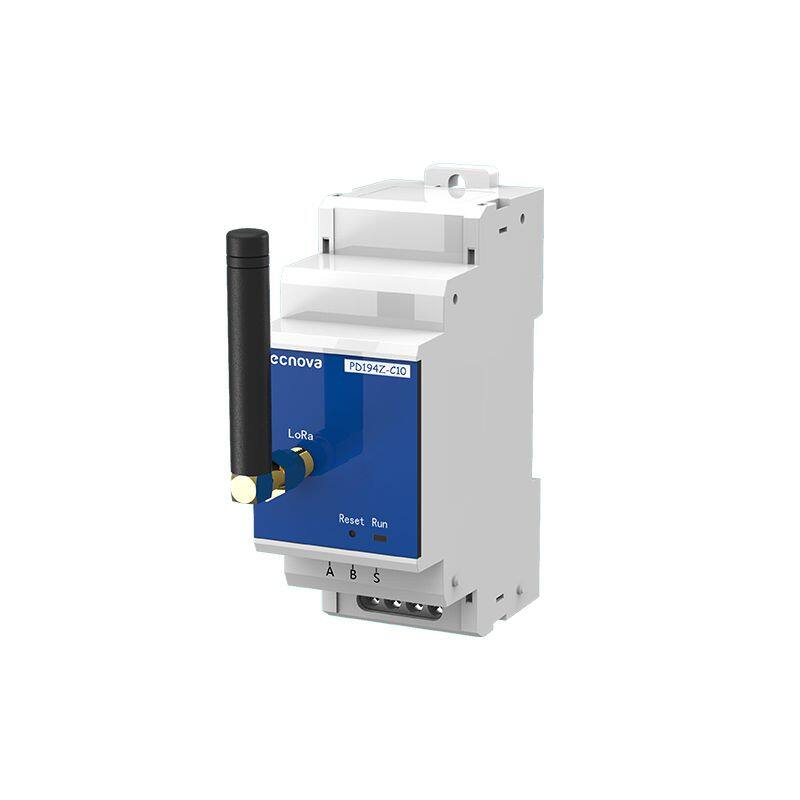

PD194Z-C10
Communication：LoRa wireless transmission module

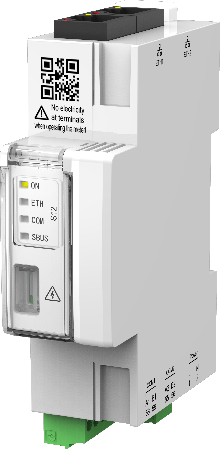

S12 Gateway
Communication：Modbus-RTU/DLT645 to Modbus-TCP

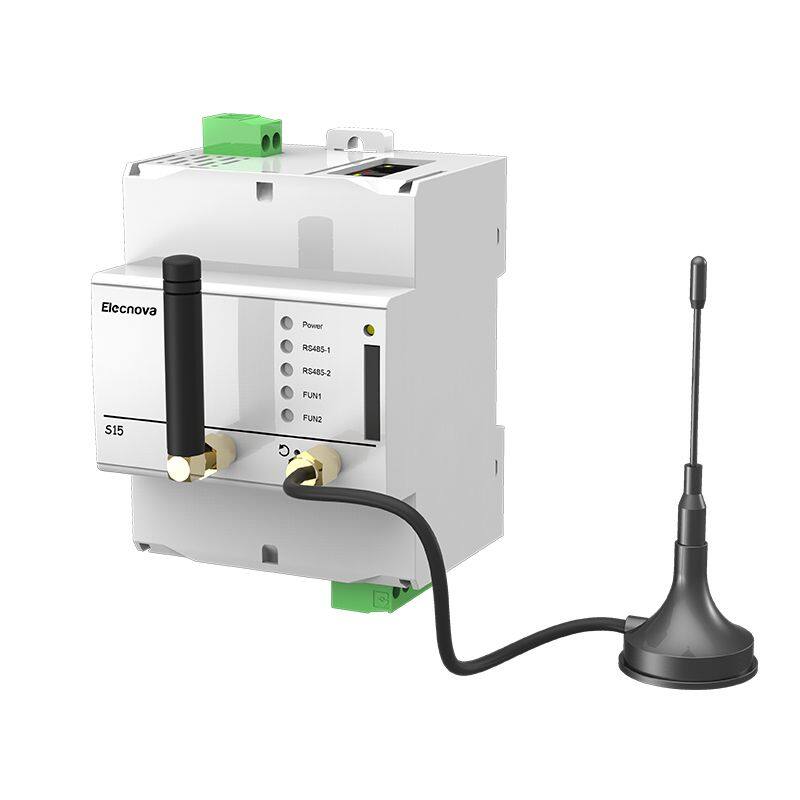

S15 Gateway
Communication：2/3/4G, NB-IoT, WiFi, Bluetooth, LoRaWAN, ZigBee
Application
■ Energy management
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter
■ Sub-item metering
■ Power monitoring
■ Remote monitoring of electrical equipment
■ Din rail mounted meter

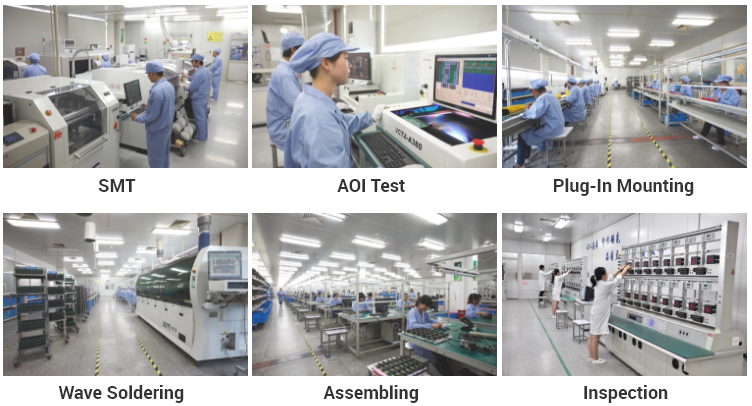

Production Process
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
