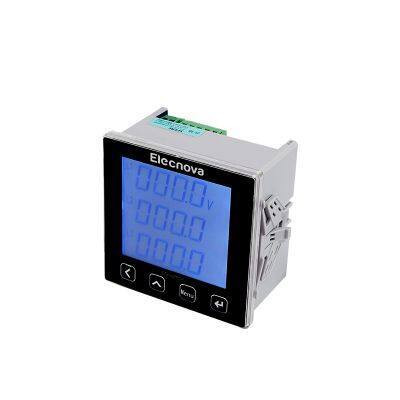

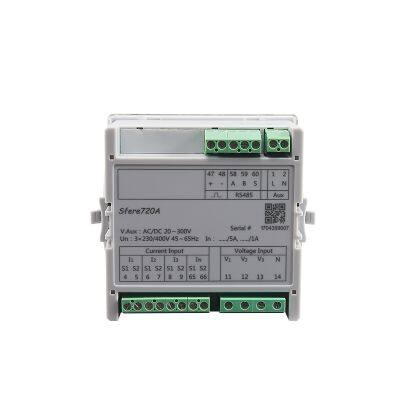

Elecnoca Sfere720A LCD Digital Low Voltage Multi-function Three Phase Power Meter Rs485 Modbus

Elecnoca Sfere720A LCD Digital Low Voltage Multi-function Three Phase Power Meter Rs485 Modbus photo-1
Elecnoca Sfere720A LCD Digital Low Voltage Multi-function Three Phase Power Meter Rs485 Modbus photo-2
Elecnoca Sfere720A LCD Digital Low Voltage Multi-function Three Phase Power Meter Rs485 Modbus photo-3
Elecnoca Sfere720A LCD Digital Low Voltage Multi-function Three Phase Power Meter Rs485 Modbus photo-4
Elecnoca Sfere720A LCD Digital Low Voltage Multi-function Three Phase Power Meter Rs485 Modbus photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

SFERE720A/B multi-function power meters can measure voltage, current, frequency, power, power factor, energy, harmonics and demand, record SOE events, and realize off-limit alarm. They also have the functions such as communication, digital input, relay output and energy pulse output. They are widely applied in many kinds of control systems, energy management systems, substation automation systems, power distribution automation systems, smart distributors and switch cabinets.

SFERE720A
Appearance and accuracy
Display mode
LCD
Installation mode
Panel mounting
Active energy accuracy
0.5S
Reactive energy accuracy
2S
Real-time measurement
U/I/P/Q/S/PF/F
Demand
Neutral current
Energy metering
Bi-directional energy
Four-quadrant reactive energy
Data record
Meter/load running time
Input and output
Energy pulse output
RS485 communication interface
Note: ▇ Yes; - No
Product name
Elecnoca Sfere720A LCD digital low voltage multi-function three phase power meter rs485 modbus
Wiring
3 phase 4 wire
Voltage input
230V/400V(continuous: 1.2Un)
Current input
5A/1A (continuous: 1.2In)
Power supply rated range
AC/DC(20~300)V
Energy pulse width
80ms±20%
Communication interface
RS-485 interface, Modbus-RTU protocol, up to 115.2 kbps
Working temperature
-10°C to 55°C
Relative humidity
≤95% RH, no condensation
Protection degree
Front case IP64, rear case IP20

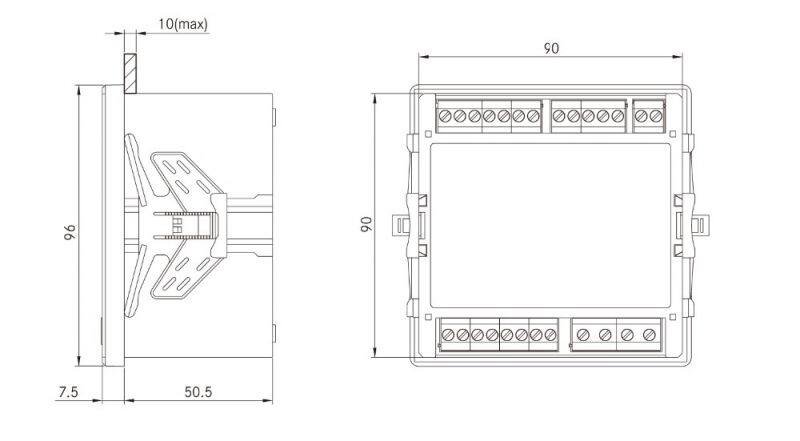

Size

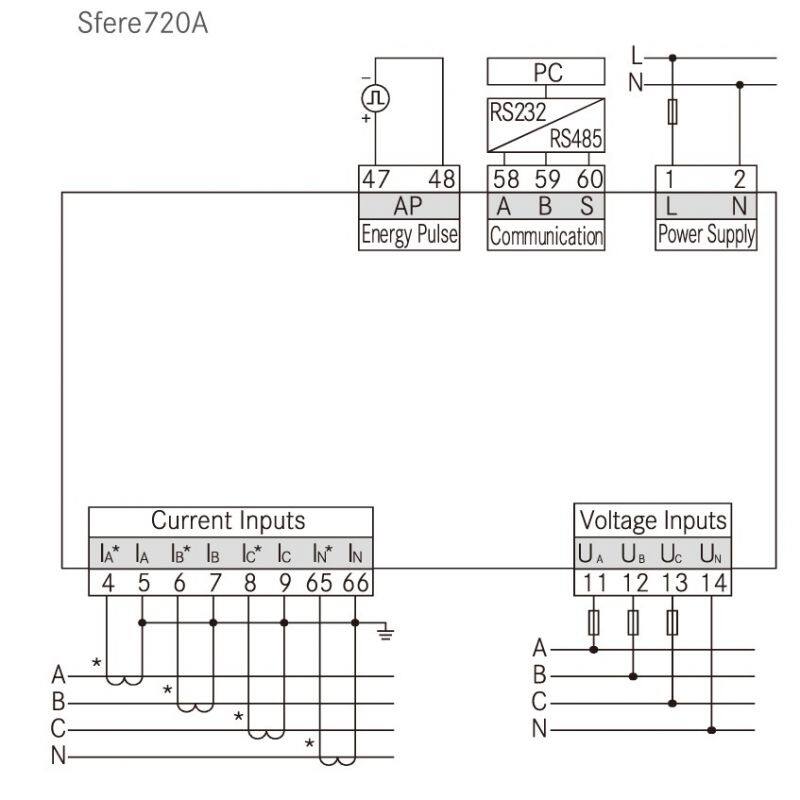

Wiring
Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? is it free or extra ?
A: We provide free samples but freight collect.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
