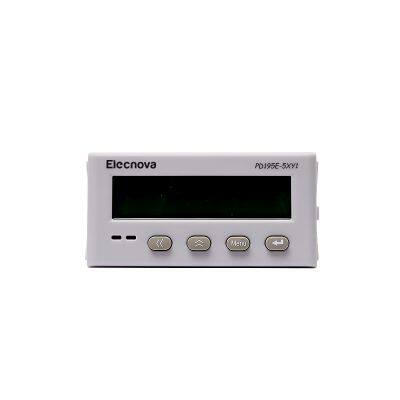

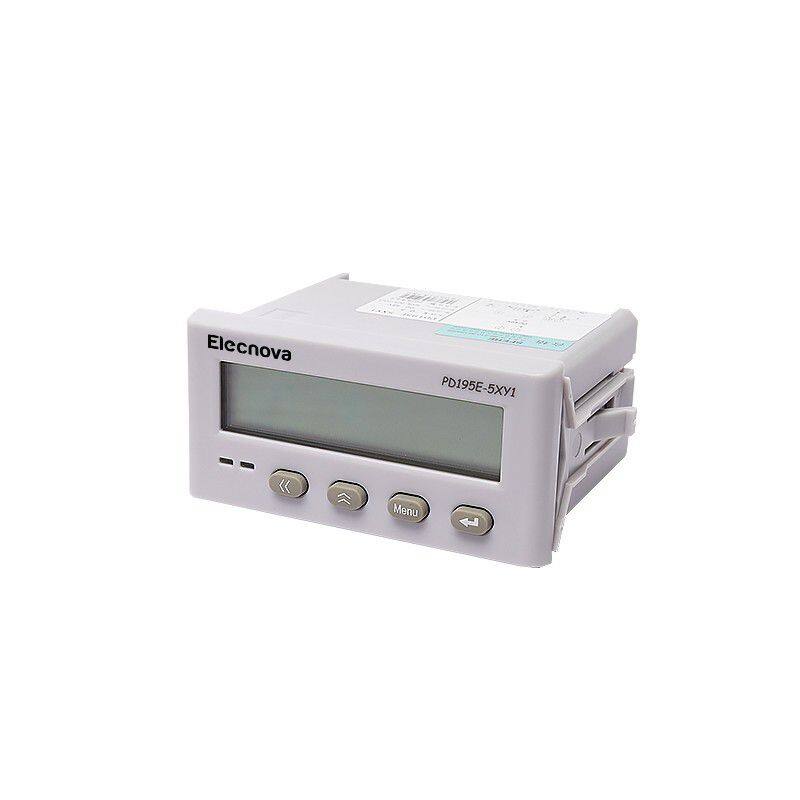

Elecnova PD195E-5SY1 is used to measure DC voltage, DC current, power and energy. They are applied for continuous monitoring and controlling in DC systems.
Product Name:Elecnova PD195E-5SY1 96*48mm RS485 DI DO LCD panel kwh watt DC ampere meter |
||||
Accuracy |
Voltage, current, power, energy 0.5% (defaulted) |
|||
Data refreshing frequency |
1s |
|||
Rated voltage |
DC 75mV, 1~5V, 110V, 220V, 1000V etc. Direct input:power consumption<1VA,Impedance>1MΩ |
|||
1A, 5A, 10A, DC 4~20mA, 75mV (with external shunt or Hall component),Max. display 9999A Direct input:impedance<20mΩ |
||||
Overload |
Continuous: 1.2 times of rated value |
|||
Working range |
AC 80~270V 50/60Hz, DC 80~270V |
|||
Consumption |
≤5VA |
|||
Digital input |
Dry contact mode |
|||
Relay output |
Contact capacity (resistance): AC 5A/250V, DC 5A/30V |
|||
Current output |
DC 4~20mA, 4~12~20mA, 0~20mA, 0~5V; For 4~20mA, 4~12~20mA and 0~20mA, load ≤350Ω |
|||
Voltage output |
DC 0~5V, 1~5V, 0~10V,load≥20kΩ |
|||
Communication |
RS485 interface, Modbus-RTU protocol, baud rate 2400~19200bps |
|||

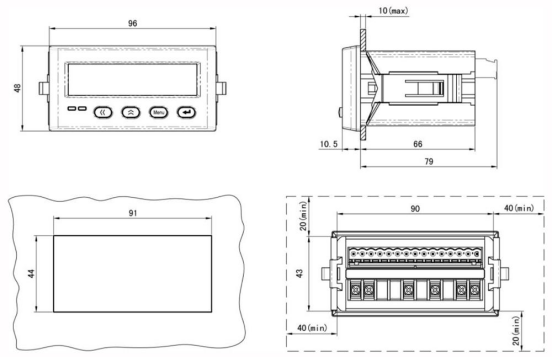

Mechanical features |
||||
IP protection |
IP65(panel)/ IP20(case) |
|||
Environment features |
||||
Working temperature |
-10~55℃ |
|||
Storage temperature |
-20~75℃ |
|||
Relative humidity |
≤93%RH |
|||
Pollution degree |
2 |
|||
Measurement type |
CAT III |
|||
Isolation |
Power supply and input ≥AC2kV, Power supply and output ≥AC2kV, Input and output ≥AC2kV |
|||
Altitude |
2500m |
|||
1.Switch status monitoring
2.Remote control through relays
3.Over limit alarm of voltage and current
4.Data transmission through analog output
5.RS485 communication for data and status
PD195E-5SY1 DC ampere meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
1. Bubble film packaging
2. Suitable boxes packaging
3. Carton packaging
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu province.
Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.
Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.
Q: What is your terms of payment ?
A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
