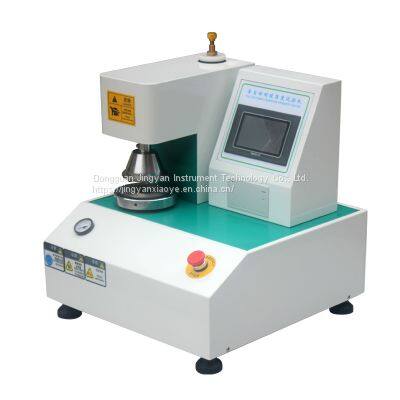

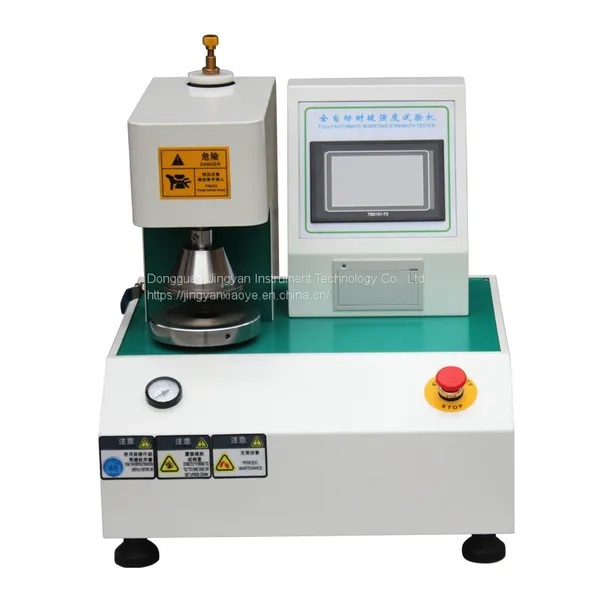

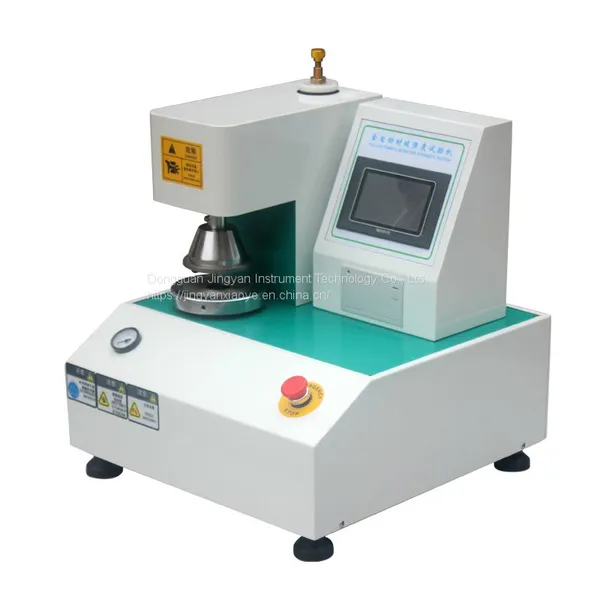

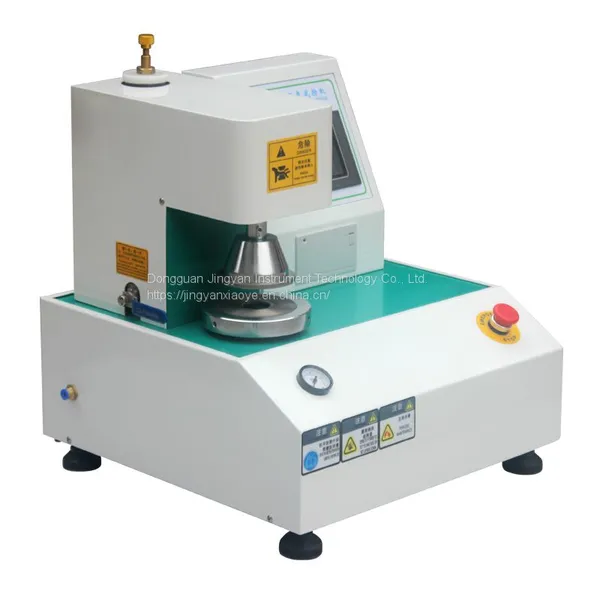

Paper Cardboard Mullen Burst Strength Testing Machine With Touch Screen
US$ 1500 - 2000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JINGYAN
Place of Origin:
China
Model Number:
JY- 1007B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Carton Compressive Strength Tester Box Compression Testing MachineUS$ 3000 - 5000MOQ: 1 Set -
Best Price Digital Paper Core Tube Compression Test Machine ManufacturersUS$ 1500 - 2000MOQ: 1 Set
-
Corrugated Pipe Compression Tester Pipe Material Testing MachineUS$ 1300 - 2000MOQ: 1 Set
-
JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing MachineUS$ 1300 - 1800MOQ: 1 Set
-
Digital Textile Bursting Strength Test Machine Corrugate Paper Bursting Strength TesterUS$ 1300 - 1800MOQ: 1 Set
Brand Name
JINGYAN
Place of Origin
China
Model Number
JY- 1007B
Power
Electronic
Usage
Compression Testing Machine
Paper Cardboard Mullen Burst Strength Testing Machine With Touch Screen
Application :
Meet the relevant standards, the use of pneumatic clamping samples, liquid crystal display, for cardboard, corrugated cardboard and other sheet-like plate determination of the bursting.
Standard :ISO 2759 , GB/T 1539 , QB/T 1057
Test Range | 250~2500kPa |
Pressure Speed | 170±15ml/min |
Specimen Clamping Force | >690kPa |
Motor | 1/4HP |
Dimension | 445mm×425mm×525mm |
Net Weight | 65Kg |
Air Pressure | 0.5MPa-0.7MPa |
voltage | 120W |
Power Supply | A220V±10%, 50Hz |
Hydraulic oil | Silicone oil |
size | 430*530*520mm |
Clip ring material | stainless steel |
