JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine

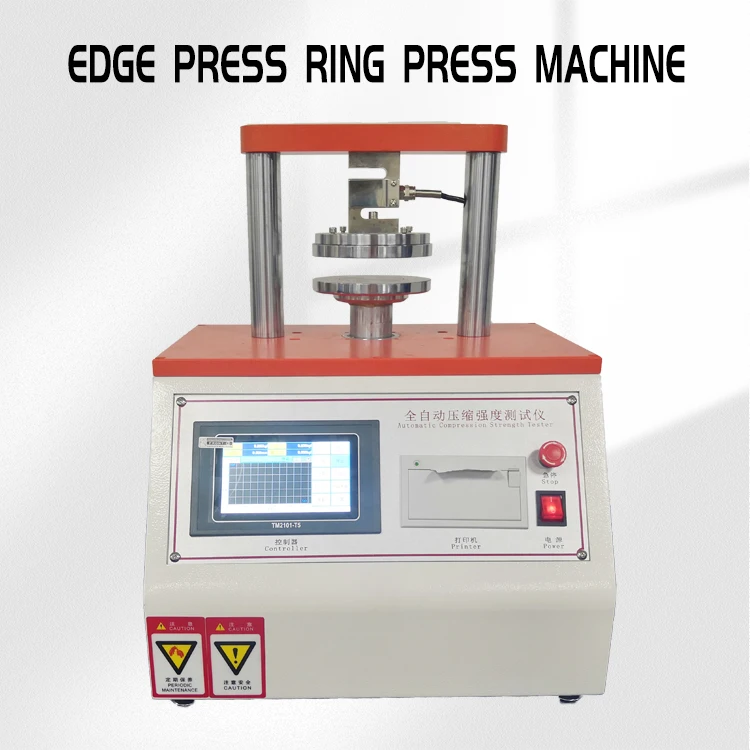

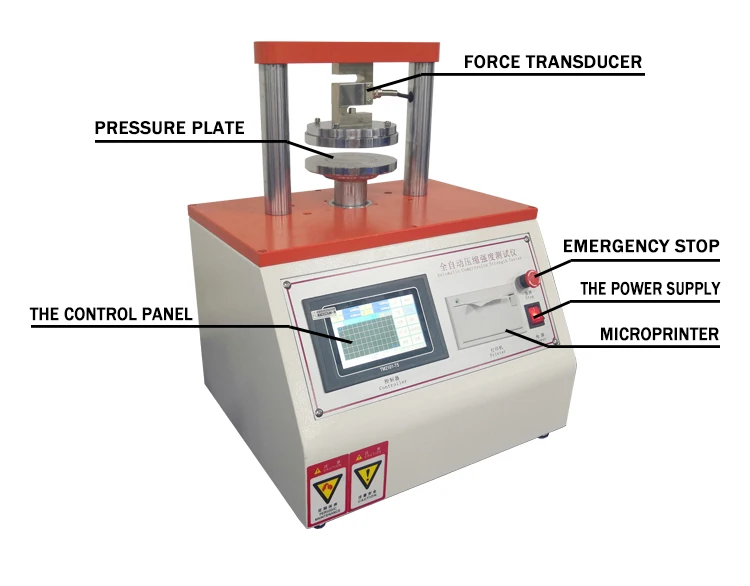

JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine photo-1
JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine photo-2
JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine photo-3
JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine photo-4
JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine photo-5
US$ 1300 - 1800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JINGYAN
Place of Origin:
China
Model Number:
JY-1008
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name JINGYAN
Place of Origin China
Model Number JY-1008
Power Electronic
Usage Compression Testing Machine

 (1).jpg_02

Product introduction:

Intelligent paperboard side pressure strength tester, also known as computer test control compression tester, paperboard compression tester, electronic compression tester, side pressure meter, ring pressure meter, is the basic instrument for paperboard/paper compressive strength performance test (Paper packaging testing equipment), equipped with a variety of fixture accessories can test the raw paper of the ring pressure strength, cardboard flat pressure strength, side pressure strength, bonding strength and other tests, so that paper production enterprises to control production costs and improve product quality. Its performance parameters and technical indicators are in compliance with relevant national standards.


Measuring range

3000N

Accuracy

±1%

Unit switching

N,kN,kgf,gf,lbf

Test speed

12.5±2.5mm/min(Or can be set to speed according to customer requirements)

Upper and lower platen parallelism

<0.05mm

Platen size

100×100mm(Or can be set to speed according to customer requirements)

Upper and lower pressure plate spacing

80mm(Or can be set to speed according to customer requirements)

Volume (approx.)

350×400×550mm

power supply

AC220V±10%  2A  50HZ

Weight (approx.)

65kg
