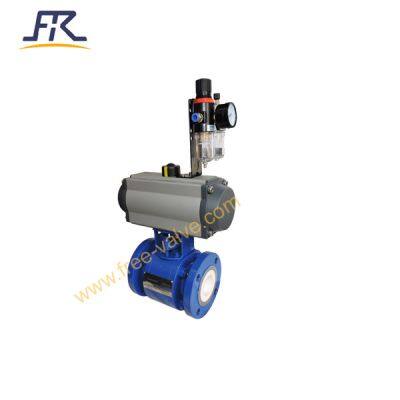

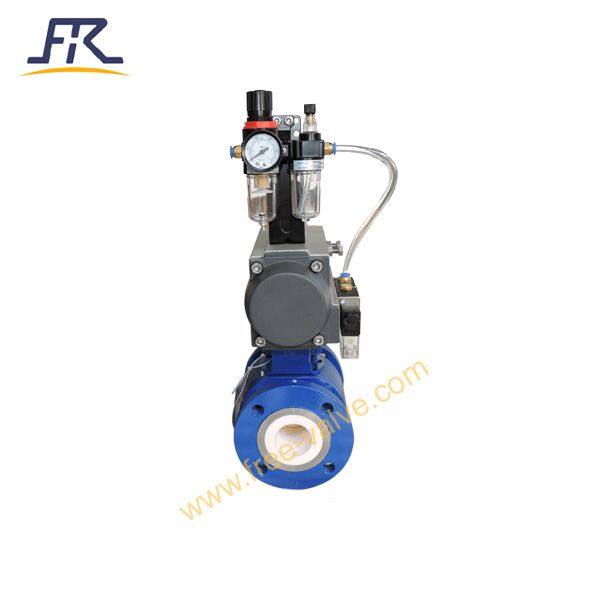

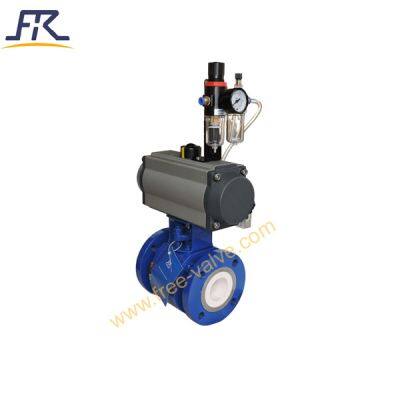

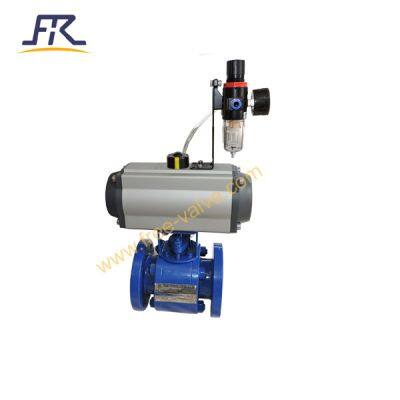

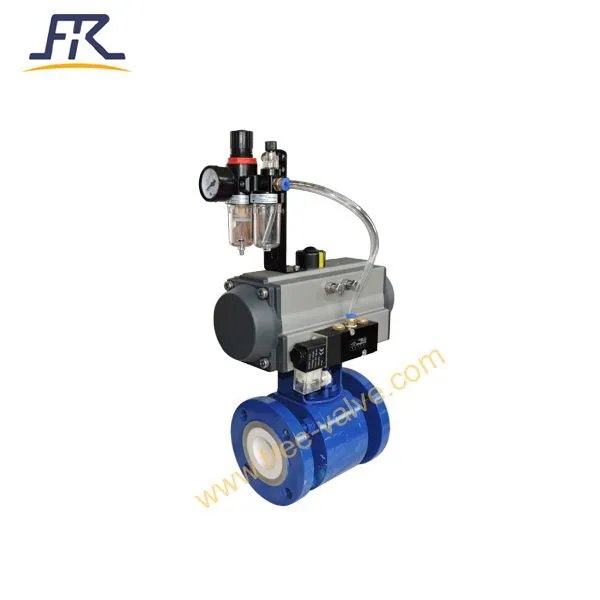

FREE-VALVE’s pneumatic A105 material with ceramic lined ball valvesare designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids medium .
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
4.Pneumatic operated fully make use of the compress air resource on site .
5. You could achieve closed production by closed pipe transportation ,make a green production and protect the environment
6.As dust is reduced, you could increased production capacity greatly .
Technical Specification
Flange Standards ASME B16.5,GB/T9113
Nominal Pressure 1.0MPa,Class150
Size Range :DN50~DN 200, NPS2 ~NPS8
Connection type: Flange
Working Temperature ≤200℃
Body material :A105
Operating Type: Manual, Pneumatic and Electric
Sealing surface material:Engineering ceramic
Ball material:Zirconia ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
Application
You will find FREE-VALVE’s Pneumatic Operated Ceramic Lined WCB Ball Valve r are installed at Lithium battery industry (battery anode material)
Model：FRQ641TC
Price terms:FOB,CIF,FCA,CFR
Price:800-20000USD/set
Origin:China
Brand:FREE-VALVE
