Home > Auto, Motorcycle Parts & Accessories > New Energy Vehicle Parts & Accessories > Motor Controller > Smart SV-LR Series Renue Seam Tracking Sensor

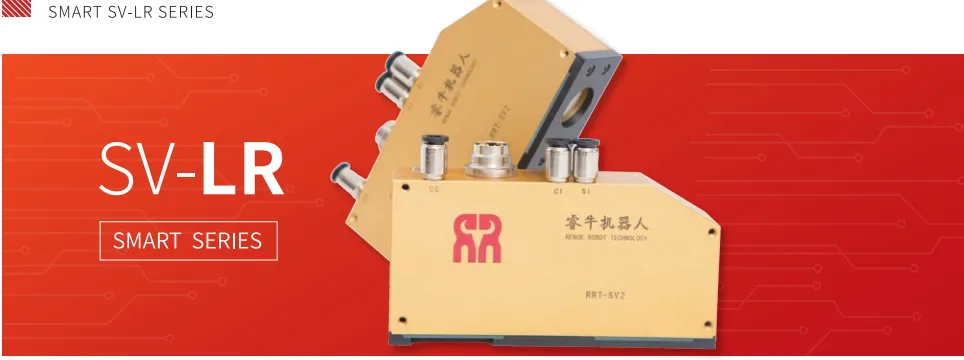

Smart SV-LR Series Renue Seam Tracking Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
General Purpose -GV Series Renue Seam Tracking SensorNegotiableMOQ: 1 Piece -
Multifunction -MV Series Renue Seam Tracking SensorNegotiableMOQ: 1 Piece
-
Double Taken DV Series Renue Seam Tracking SensorNegotiableMOQ: 1 Piece
-
Renue Seam Tracking SensorNegotiableMOQ: 1 Piece
-
Smart SV-BP Series Renue Seam Tracking SensorNegotiableMOQ: 1 Piece
SV - HR series
| Size |
120x61x26mm |
| Weight | 345g |
| Frame rate | 30HZ |
| Port | 12pin Navigation in the interface |
| Types of communication | Ethernet |
| Speed of communication | 1000M |
| Mains input | 9-32V |
| Power consumption | 0.25@24V |
| Temperature range | 0-50°C |
| Humidity range | 10-95％ No condensation |
| Laser spot shape | Linear |
| Optical maser wavelength | 650nm |
| Laser power level | IIIB |
| Laser adaptability |
Anti-reflection/anti-arc interference Anti-splash/anti-electromagnetic interference |
| Welds types | Lap/butt/foot connection, support customization |
| Applicable welding process | MAG/MIG/TIG/laser welding |
SV-BP series visual range parameters
| Model |
Best view | Near-end Z1 | Far-end Z1 | Depth resolution | Near-end Y1 | Far-end Y1 | Width resolution |
| SV-LR-200 | 200 | 120 |
280 | 0.07-0.28 | 40 | 90 | 0.05-0.01 |
| SV-LR-275 | 275 | 200 | 350 | 0.07-0.3 | 125 | 200 | 0.15-0.2 |
| SV-LR-400 | 400 | 200 | 600 | 0.07-0.4 | 50 | 130 | 0.05-0.2 |
| SV-LR-400K | 400 | 200 | 600 | 0.07-0.4 | 60 | 160 | 0.06-0.2 |
SV-BP series installation dimensions drawing
