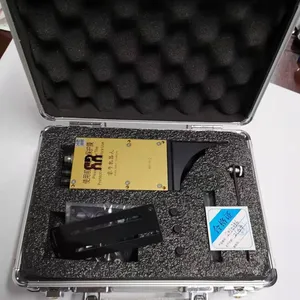

Smart SV-BP Series Renue Seam Tracking Sensor thumbnail-3

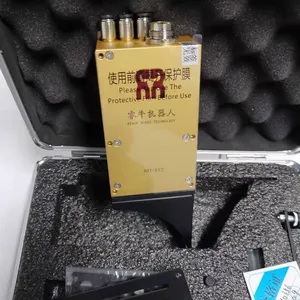

Smart SV-BP Series Renue Seam Tracking Sensor thumbnail-4
Smart SV-BP Series Renue Seam Tracking Sensor thumbnail-5
Smart SV-BP Series Renue Seam Tracking Sensor photo-1

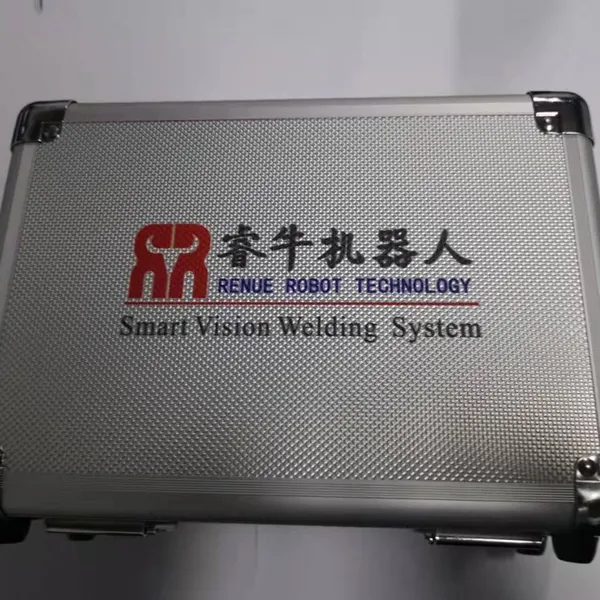

Smart SV-BP Series Renue Seam Tracking Sensor photo-2

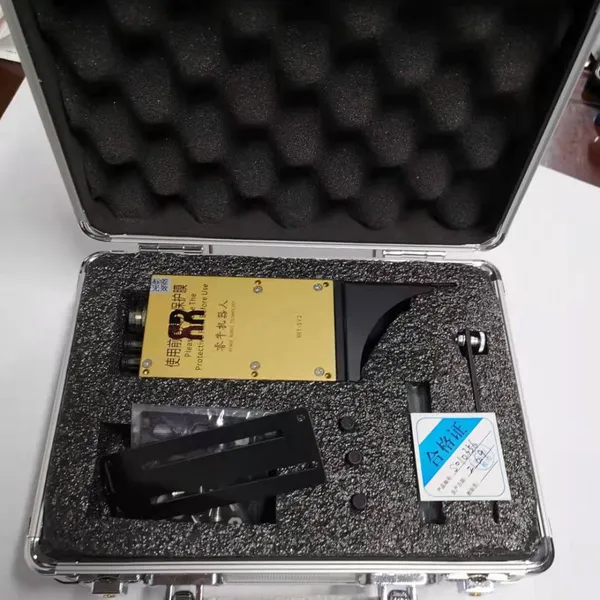

Smart SV-BP Series Renue Seam Tracking Sensor photo-3

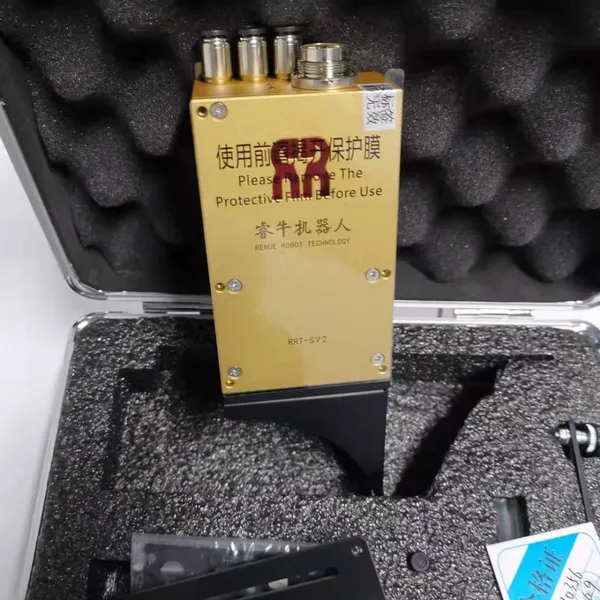

Smart SV-BP Series Renue Seam Tracking Sensor photo-4

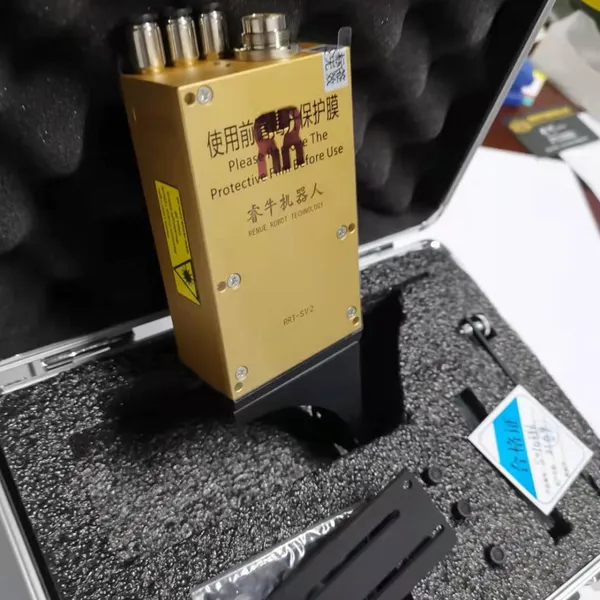

Smart SV-BP Series Renue Seam Tracking Sensor photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Suzhou Jinshuorui Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

SV - BP series

Farce cow completely independent research and development of intelligent seam tracking sensor, internal powerful computing unit be able to complete the recognition of welding information acquisition and real-time processing, can in under the environment of strong arc splash interference directly provide weld position information, don't need along with the computer, economical and practical, applicable to combine with the robot.

The camera has exquisite structure, compact size, high reachability and rich subtypes, which can be selected and applied according to the application scenario, and can be customized to the most suitable parameters.  This series contains multiple sensors of different ranges, high-precision sensors to realize the identification and tracking of tiny welds, standard sensors to cover the needs of conventional use, large range sensors to solve the problem of locating a large measurement range.


Size
 104.5x60x33mm
Weight 378g
Frame rate 30HZ
Port 120pinNavigation in the interface


Types of communication Ethernet
Speed of communication 1000M
Mains input 9-32V
Power consumption 0.25@24V


Temperature range 0-50°C
Humidity range 10-95％ No condensation
Laser spot shape Linear
Optical maser wavelength  650nm
Laser power level IIIB
Laser adaptability

Anti-reflection/anti-arc interference

Anti-splash/anti-electromagnetic interference
Welds types Lap/butt/foot connection, support customization
Applicable welding process  MAG/MIG/TIG/laser welding


SV-BP series visual range parameters


Model
 Best view Near-end Z1 Far-end Z1 Depth resolution Near-end Y1 Far-end Y1 Width resolution
SV-BP-120 120 70
 170 0.04-0.2 25 60

0.04-0.08
SV-BP-120K 120 70 170 0.04-0.2 50 110 0.08-0.15
SV-BP-120Z 120 70 170 0.04-0.2 18 37 0.02-0.05

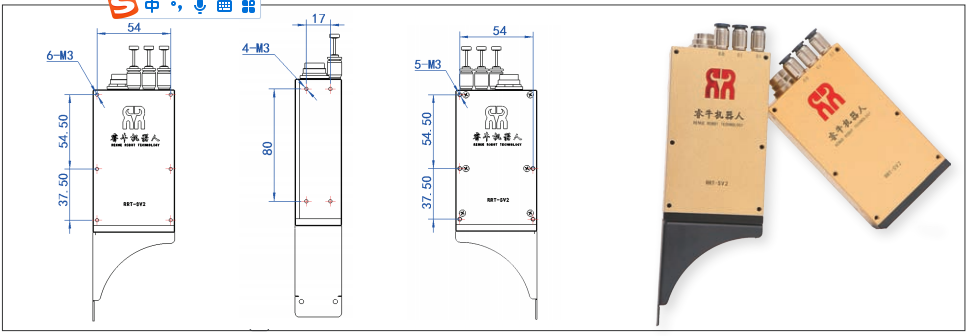

SV-BP series installation dimensions drawing
