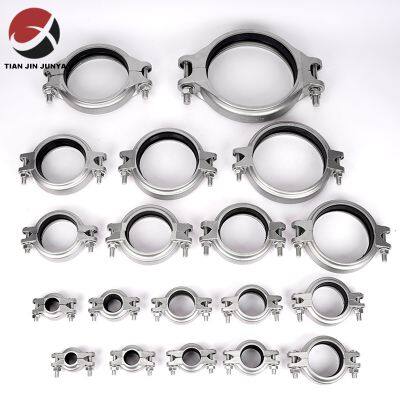

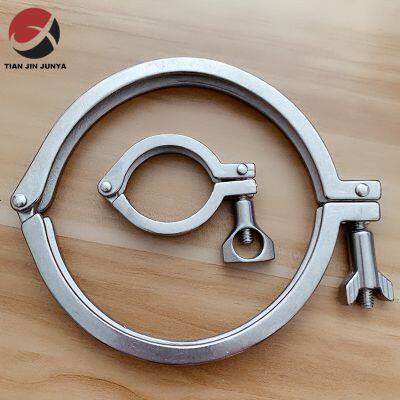

Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp

Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp thumbnail-1
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp thumbnail-2
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp thumbnail-3
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp thumbnail-4
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp thumbnail-5
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp photo-1
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp photo-2
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp photo-3
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp photo-4
Lost Wax Casting Stainless Steel 304 316 Saddle/repair/lowes/bunnings/heavy/bracket Bathroom Accessories Fastener China Manufacturer Plumbing Fitting Pipe Clamp photo-5
US$ 0.3 - 2.7 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Junya
Place of Origin:
China
Model Number:
OEM
Contact Supplier Request Quote Chat Now
Tianjin DSR Bearing Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Junya
Place of Origin China
Model Number OEM
Material Stainless Steel
Usage Heavy Duty
Standard or Nonstandard Standard
Structure Spring Clamp

We use the very best quality raw materials from certified suppliers on the market to manufacture these products


--- Pipe Clamp 304/316 ---

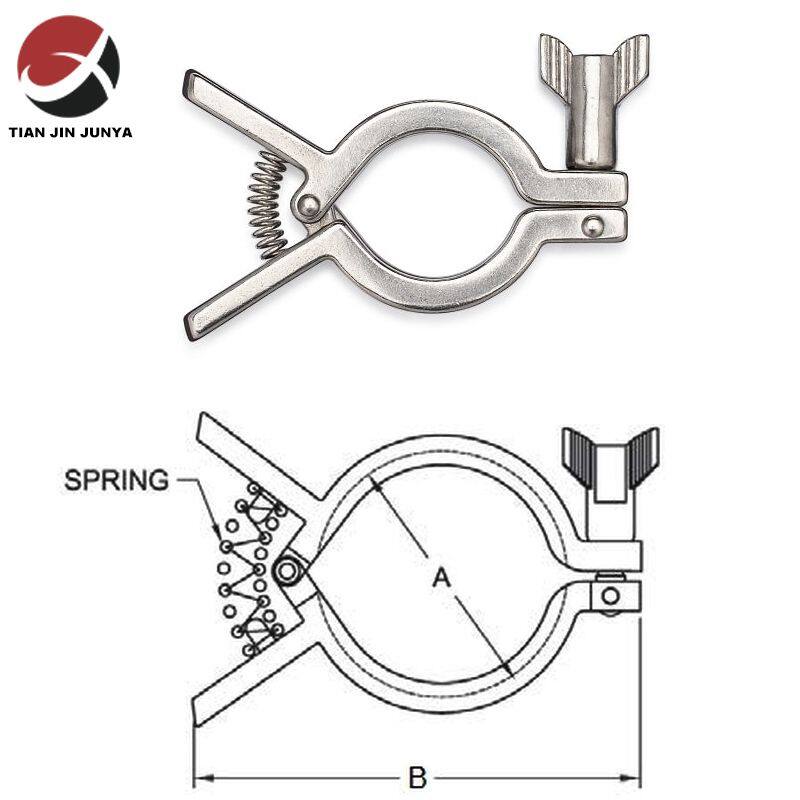

Size (Tube OD) Service Pressure Rating at 70°F Service Pressure Rating at 250°F Dimension (A) Dimension (B)
1/2" - 3/4" 1500 1200 1.125 3.625
1" - 1 1/2" 500 300 2.122 4.625
2" 450 300 2.654 5.000
2-1/2" 400 200 3.185 6.000
3" 350 195 3.717 7.000
4" 300 150 4.82 8.000



--- Advantages of Stainless Steel Casting ---

Made of stainless steel 304/316 for resistance to corrosion and high temperatures


  • Sizes: 1/8" to 4"

  • Weights: a few grams to more than 50 pounds

  • Surface: very smooth finish

  • Tight tolerances

  • Reliable process controls and repeatability

  • Design and casting versatility

  • Efficient production

  • Affordable tooling

  • Material variety



--- Function Description ---

Single pin squeeze clamp is made of 304 stainless steel and allows for easy disassembly

It is used to join two separate tri-clamp ends to one another and allows for more flexibility than the single-pin heavy duty clamp. A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.

  • - Works on all types of clamp ferrules.

  • - Great for maintenance when having to remove valves and other equipment for cleaning.


Designs 1. As per the customer's drawings
2. As per the customer's samples
Surface treatment 1. Plug draw (PD)
2. Mechanically polished (MP)
3. Buffed polished (BP)
4. Pickled & Passivated / Chemically polished (AP & CP)
5. Bright Annealing (BA)
6. Anodical cleaning (AC)
Service OEM service available
Products All kinds of stainless steel casting: include pipe fittings, ball valves, automotive parts
Application Machinery Manufacturing, Pumps, Valves, Energy, Mining, Rail, Marine, Hydraulic, Automotive, Oil & Gas, Medical, Generial OEM'S
Pump body, valve parts, architectural parts and furniture parts so on
Advantage 1. With 5 years in stainless steel casting;
2. Near Tianjin Port and Air Port (Convenient Transportation)
3. We provide: OEM stainless steel lost wax castings and OEM machining services for stainless steel lost wax castings
4. We have: CNC Machining, CNC turning, CNC Milling, 3D CMM Inspection and CNC Optical Inspection.
5. We believe: On time, Stable quality, Justice price, Client confidentiality.
6. With samples and order: We can offer dimension report, material certification.
Inspection 1. Dimension report
2. Material certification
Packing Export carton and fumigation wooden pall.
Sample Offer free samples and freight collected.
OEM and ODM Accepted and professional. Buyer's drawing or designs are available.
Material test report It is available upon request when placing order.

***

Description: Stainless Steel 304 316 Squeeze Clamp
Main Materials: Stainless steel 304/304L/316/316L
Working pressure: 150 LB pipe fittings
Applicable temperature: -20°C to +220°C
Size Range: 1/8"- 4"
Thread : BS21(BSPT&BSPP), ANSI/ASME B1.20.1(NPT), DIN2999(R/RP),
JIS B 0203/2(PT), KS B0221/2(PT), etc...
Fabrication: Lost Wax Casting Precision Casting Technology


--- Application ---


--- Quality Control ---

1) Checking the raw material after they reach our factory------- Incoming quality control (IQC)
2) Checking the details before the production line operated
3) Have a full inspection and routing inspection during mass production---In-process quality control (IPQC)
4) Checking the goods after they are finished---- Final quality control (FQC)
5) Checking the goods after they are finished-----Outgoing quality control (OQC)

* Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.

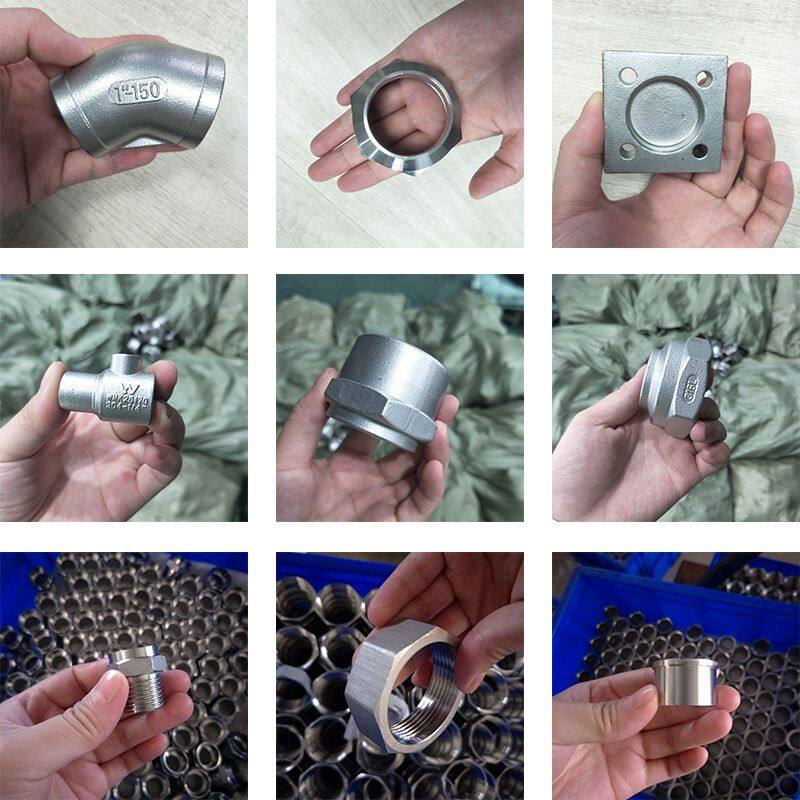

--- We can also offer you ---


Sockets
Hex Nipples
Reducing Nipples
Barrel Nipples
FF Elbows
MF Elbows
Tees
Toe Nipples
Tube Toe Nipples
Male Hose Barbs
Barrel Unions
Reducing Bushes
Reducing Nipples
Reducing Sockets
Hex Plugs
Locknuts
Nut & tails
Crosses
Hex Caps
Thread Tape
Hex Nipples
Toe Nipples
Barrel Nipples
Cross Over Nipples (NPT to BSP male adaptors)
Hex Plugs
Hex Caps
Elbows
Barrel Union
Reducing Bushes
Reducing Nipples
Couplings (or sockets, but referred to as couplings in NPT as the internal thread is not continuous throughout the fitting)
Long Radius 90 degree Elbows
Long Radius 45 degree Elbows
Short Radius 90 degree Elbows
Tees
Reducing Tees
Concentric Reducers
Eccentric Reducers
Caps
Tube Unions
Reducing Tube Unions
Tube Union Elbows
Tube Bulkhead Unions
Tube Union Tees
Male Connectors
Female Connectors
Male Elbows
Female Elbows
Male Bulkhead Connectors
Female Male Bulkhead Connectors
Male Adaptors
Male Branch Tees
Female Branch Tees
Ferrule Sets
...

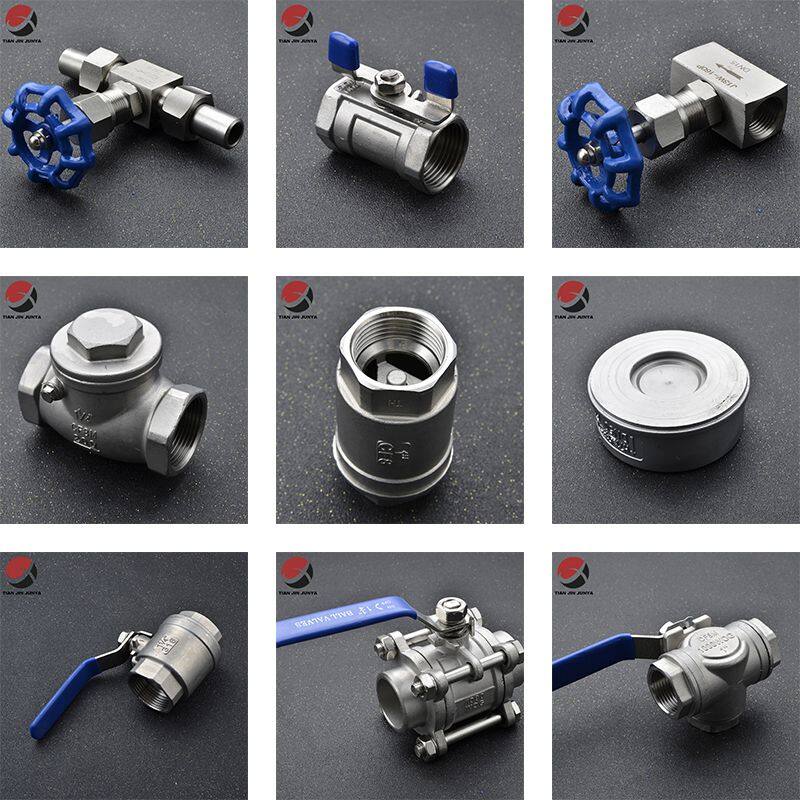

--- Ball Valve ---




--- Pipe Fitting ---




1 Elbow 45°Elbow 90°Elbow
2 Returns Long Radius Returns Short Radius Returns
3 Tees Equal Tee Reducing Tee
4 Cross Equal Cross Reducing Cross
5 Reducers Concentric Reducer Eccentric Reducer
6 Stubends Long Stubend Short Stubend
7 Couplings Full/Half Coupling Reducing Coupling
8 Swage Nipple Concentric Swage Nipple Eccentric Swage Nipple
9 Caps Union Plug
10 Bushing Lock nut Sweepolet
...

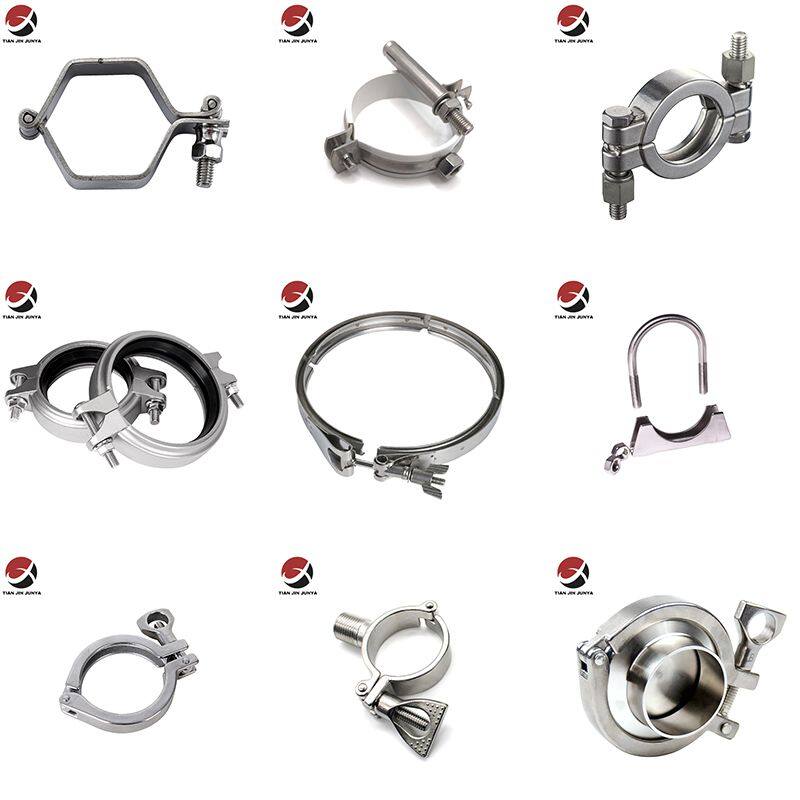

--- Clamp ---

Pipe Clamp Type
Single-Pin Heavy Duty Clamp High Pressure Tri-Clamp
Three Segment Clamp Double Pin Heavy Duty Clamp
Squeeze Clamp Purity Tri-Clamp
Swivel Joint Double-Pin Clamp Tamper Resistant Tri-Clamp
...


--- Impeller ---




The types of pump impeller we can offer you:
1. Open impeller
2. Semi-open impeller
3. Closed impeller
4. Vortex impeller
5. Cutter impeller
...

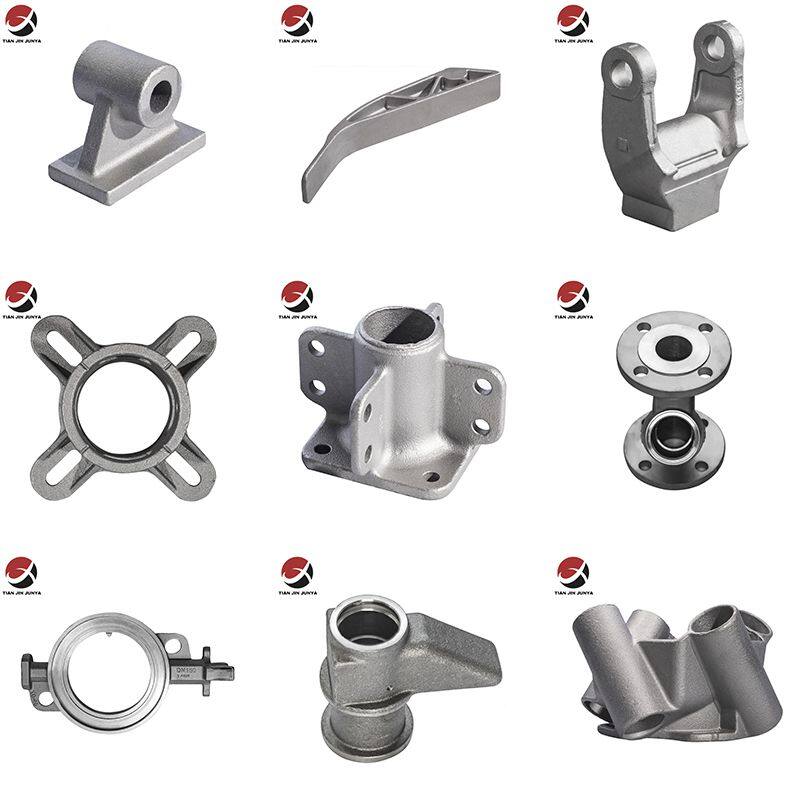

--- OEM Fitting ---


* The products shown here is only to present the scope of our business activities. We can manufacture no standard parts according to your drawing or sample.

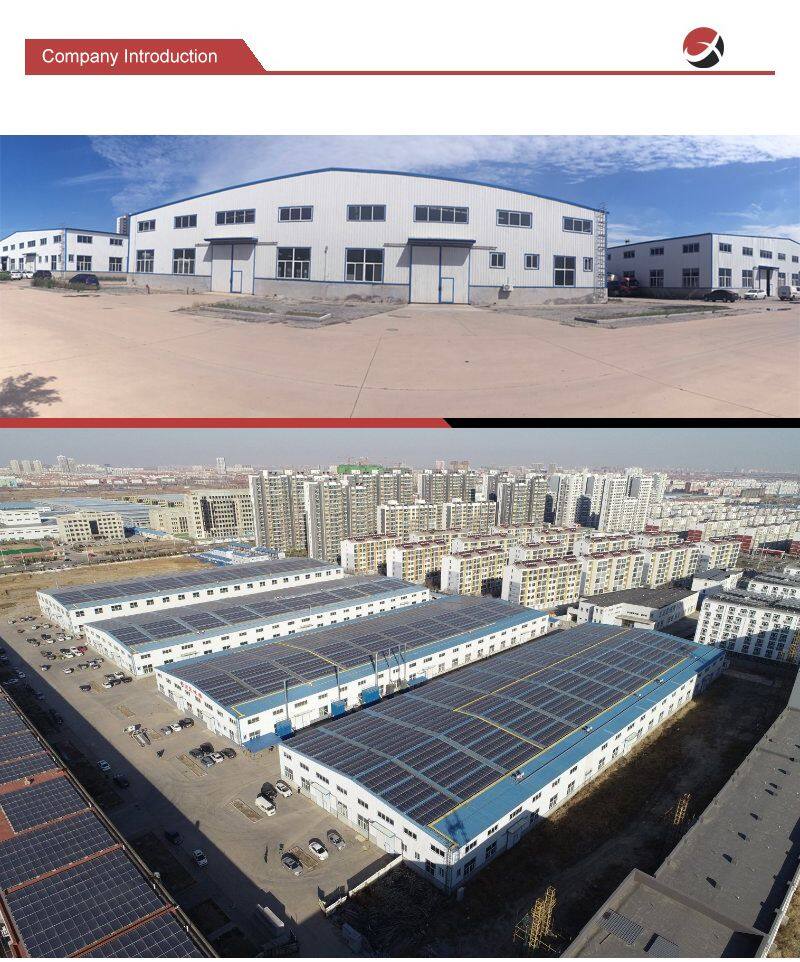

Hebei Junya Precision Machinery Co., Ltd


is a high-tech enterprise that combines designing, tooling developing, casting, machining, surface treatment, inspection, sales, and service altogether. Founded in 2017, located in Huanghua, Hebei, Junya now covers an area of more than 5000 square meters.

With a massive research & development environment, Junya utilized market-leading technology and introduced various advanced equipment to ensure stringent quality in production.

Under a powerful management team, the company has grown to a group with more than 100 employees. Product offerings range from Stainless Steel Pipe Fitting, Quick Joint, Ball Valve, Check Valve, to Marine Hardware and Auto Parts. The material are 304, 304L, 316, 316L, SF8M, WCB, 1.4408, etc.

- Quality - Creativity - Consistency -

These words are JY's slogan, and also a philosophy that drives the company to offer the superior service you are looking for…


--- FAQ ---




Q1: How long is your delivery time?
A: The delivery time depends on the total quantity of the order. Usually, samples can be delivered within 15 days.

Q2: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, and we can also pay for the model, but the customer has to pay for the shipping cost.

Q3: What is the minimum order quantity for your products?
A: It depends on the category or order.

Q4: Where is your factory?
A: Our factory is located in Hebei Province, close to Tianjin Seaport.

Q5: What quotation does your company need to submit?
A: Drawings or samples, and related information, such as quantity, weight, and materials.

Q6: What if we don't have drawings?
A: We can duplicate your samples and make drawings for your confirmation.


We deliver a 'complete investment casting package' for our customers. By providing innovative solutions, quality products and excellent service we can therefore offer the complete manufacturing solution.
