Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer

Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer thumbnail-1
Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer thumbnail-2
Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer thumbnail-3
Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer thumbnail-4
Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer thumbnail-5
Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer photo-1

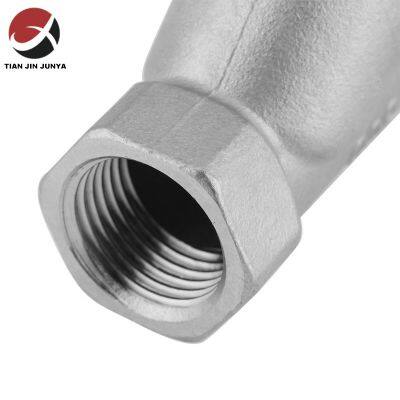

Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer photo-2

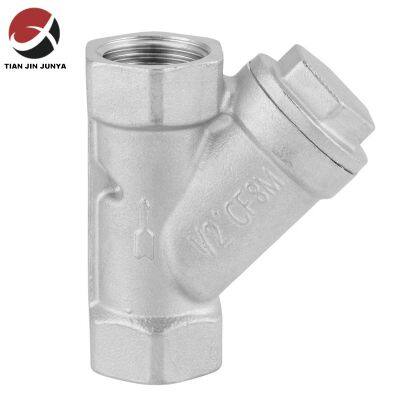

Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer photo-3

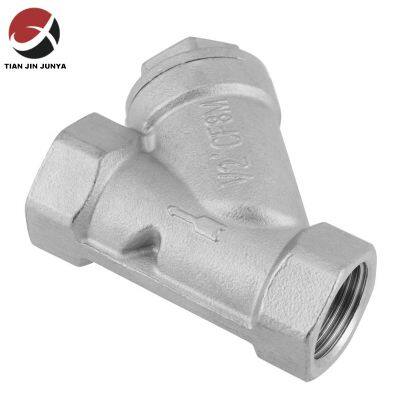

Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer photo-4
Y Strainer Stainless Steel 304 316 Plumbing Fitting Threaded for Gas Water Oil Steam Valve China Manufacturer photo-5
US$ 0.21 - 2.7 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Junya Casting or Customized your own brand
Place of Origin:
China
Model Number:
OEM / 1/4“-4“
Contact Supplier Request Quote Chat Now
Tianjin DSR Bearing Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Junya Casting or Customized your own brand
Place of Origin China
Model Number OEM / 1/4“-4“
Material Stainless Steel
Application General
Structure Angle
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Manual
Port Size Tianjin
Media Other, Acid/Base/Gas/Oil/Water/Steam
Temperature of Media Normal Temperature


We use the very best quality raw materials from certified suppliers on the market to manufacture these products

Valve Strainer 304/316


--- Material List ---
Description Material
Body SS 316 (CF8M)
Bonnet SS 316 (CF8M)
Gasket PTFE
Screen SS 304


1- Product name

Stainless Steel Lost Wax Casting Y - Strainers

2- Main material

Stainless Steel 304/304L/316/316L/201/2205/2520

3- Suitable For

Full rage of liquids and gas

4- Color

Silver

5- Weight

Approx.50g-10kg.

6- Package Contents

Box + Carton + Pallet


Size D L H2
1/4" 0.53 2.53 0.95
3/8" 0.59 2.53 0.95
1/2" 0.7 2.56 1.38
3/4" 0.79 3.15 1.77
1" 0.98 3.54 2.24
1 1/4" 1.26 4.13 2.28
1 1/2" 1.57 4.72 2.6
2" 1.97 5.51 3.03
3" 3.2 7.89 3.97

* Note: 100 mc screen strainers have the same dimensions as 20 mesh above. Part numbers include the suffix "-100mc".

Y strainer screen materials are stainless steel, titanium, and other metal alloys. Its standards are requested according to the filtration medium, commonly the water filtration screen in 18 mesh - 30 mesh, gas filtration screen mesh in 10 mesh - 100 mesh, oils filtration screen mesh in 100 mesh - 480 mesh. Of course, we would like to change the Y strainer screen type and designs according to the client's request.


You are welcome to send us your drawings or samples for tooling with us.


--- Function Description ---

Strainers are used to clear away impurities and to protect the valve and related equipment

Strainers are used to filter out the unnecessary within a plumbing system. Y strainers are pipe fittings that are used for many applications ranging from cosmetics, to food preparation, diesel engines, and the petroleum industry. They have a filter inside that traps elements within the plumbing system. A foot valve is a type of check valve, which means it flows in one direction, which is coupled with a strainer. They are usually used for plumbing systems where liquid needs to be pumped from a lower level holding area, such as a water well.



Designs 1. As per the customer's drawings
2. As per the customer's samples
Surface treatment 1. Plug draw (PD)
2. Mechanically polished (MP)
3. Buffed polished (BP)
4. Pickled & Passivated / Chemically polished ( AP & CP)
5. Bright Annealing (BA)
6. Anodical cleaning (AC)
Service OEM service available
Products All kinds of stainless steel casting: include pipe fittings, ball valves, automotive parts
Application Machinery Manufacturing, Pumps, Valves, Energy, Mining, Rail, Marine, Hydraulic, Automotive, Oil & Gas, Medical, Generial OEM'S
Pump body, valve parts, architectural parts and furniture parts so on
Advantage 1. With 5 years in stainless steel casting;
2. Near Tianjin Port and Air Port (Convenient Transportation)
3. We provide: OEM stainless steel lost wax castings and OEM  machining services for stainless steel lost wax castings
4. We have: CNC Machining, CNC turning, CNC Milling, 3D CMM Inspection and CNC Optical Inspection.
5. We believe: On time, Stable quality, Justice price, Client confidentiality.
6. With samples and order: We can offer dimension report, material certification.
Inspection 1. Dimension report
2. Material certification
Packing Export carton and fumigation wooden.
Sample Offer free samples and freight collected.
OEM and ODM Accepted and professional. Buyer's drawing or designs are available.
Material test report It is available upon request when placing order.


--- Application ---



--- Investment Casting ( Silica Sol Process) ---

Made of stainless steel 304/316 for resistance to corrosion and high temperatures

Investment casting offers unlimited freedom in design and material choices. Typical applications can be found in the automotive, pump and food industry, architecture, and general industrial engineering


BENEFITS:

  • Precise tolerances

  • Thin walls are possible

  • Fine surface structure

  • Complex shapes can be achieved without draft angles

  • Small marks can be cast very clearly, such as letters or company logos

  • Suitable for a wide variety of materials


TECHNICAL SPECIFICATIONS:

  • Weight: 0.01 - 50 kg

  • Casting surface roughness: Ra 0.4 μm

  • Maximum dimensions: 500 x 500 x 500 mm

  • Casting wall thickness: ≥ 3 mm, locally 1.5 mm can be reached

  • Angle tolerances: ± 1°

  • The geometric tolerances that are required for the function should be specified in the drawing

FINISHING OPTIONS:

  • Pickling and passivation

  • Electrolytic polishing

  • Vibra-polishing

  • Electrolytic zinc plating

  • Hot-dip galvanising

  • Mirror polishing

  • Dull polishing




Investment Casting

 		Die-Casting Sand-Casting Lost Foam Forging
1. Low volume production runs are cheaper as tooling is less costly. 1. Tooling costs are far higher, only cost effective for very large volumes. 1. High cost in large production runs. 1. Processing costs are higher due to scrap costs, shell building, and pattern handling. 1. Tooling costs are far higher.
2. Can produce much more complex designs, incorporating design features such as logos. 2. The parts produced are usually less complex. 2. Parts are less complex. 2. Surface finish is typically of lower quality. 2. Tooling must be replaced quite frequently due to wear.
3. Parts require little machining after finishing. 3. More material limitations, can't be used for ferrous alloys. 3. Lower dimensional accuracy. 3. Tooling cost is increased. 3. Lower dimensional accuracy.
4. Excellent surface finishes can be achieved. 4. Surface finishes are usually lower quality than Investment casting and require additional processing. 4. Surface finish requires additional work. 4. Parts require little machining after finishing. 4. Extremely limited component complexity.


--- We can product for you ---


1. Products that cannot be directly machined into shape (crafts)

2. Products whose machining or other methods are too costly

3. Products whose other casting process fails to meet the technical requirements



INCLUDING:

/ Pipe fittings: Such as Elbow, Tee, Cross, Nipple, Cap...

/ Valve Parts: Valve Body, Valve Stem, Valve Handle...

/ Valve: 1 / 2 / 3 Pieces Ball Valve With Threaded/Flange Connection...

/ Bathroom Fitting: Hinge, Glass Clamp...

/ Marine Hardware: Pipe Clamps, Brackets...

/ Food Machinery Accessories: Meat Grinder Screw Propeller, Coffee Machine Pipe...

/ Flange

/ Impeller

/ Pump Body

/ Automobile Parts And so on.

--- Quality Control ---

Junya work closely from concept to finished product

1) Checking the raw material after they reach our factory---- Incoming quality control (IQC)
2) Checking the details before the production line operated
3) Have a full inspection and routing inspection during mass production---- In-process quality control (IPQC)
4) Checking the goods after they are finished---- Final quality control (FQC)
5) Checking the goods after they are finished---- Outgoing quality control (OQC)


--- Custom Parts ---

Junya also specializes in custom fabrication. Our state-of-the-art engineering department will leverage their industry expertise to design custom fittings tailored to your application.




--- FAQ ---



Q1: How long is your delivery time?
A: The delivery time depends on the total quantity of the order. Usually, samples can be delivered within 15 days.

Q2: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, and we can also pay for the model, but the customer has to pay for the shipping cost.

Q3: What is the minimum order quantity for your products?
A: It depends on the category or order.

Q4: Where is your factory?
A: Our factory is located in Hebei Province, close to Tianjin Seaport.

Q5: What quotation does your company need to submit?
A: Drawings or samples, and related information, such as quantity, weight, and materials.

Q6: What if we don't have drawings?
A: We can duplicate your samples and make drawings for your confirmation.
We deliver a 'complete investment casting package' for our customers. By providing innovative solutions, quality products and excellent service we can therefore offer the complete manufacturing solution.


Looking Forward To Cooperating With You!
