MP-2 Metallographic Specimen Grinder And Polisher Machine With Double Discs
US$ 300 - 600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FAST
Place of Origin:
China
Model Number:
MP-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
5 days
Related Products
-
Digital Display Charpy and Izod Impact Tester XJ-50ZUS$ 3000 - 6000MOQ: 1 Set -
XJJY-5 Plastic Material Electronics Charpy Impact Strength Test EquipmentUS$ 500 - 1000MOQ: 1 Set
-
Highly-effective Universal Metallographic Specimen Grinding Machine Price M-2US$ 600 - 1200MOQ: 1 Set
-
Metallographic Specimen Sample Mounting Press Inlay Machine ZXQ-1US$ 1000 - 2000MOQ: 1 Set
-
Metallographic Specimen Sample Mounting Press Inlay Machine XQ-2BUS$ 200 - 500MOQ: 1 Set
Brand Name
FAST
Place of Origin
China
Model Number
MP-2
Power
Electronic
Usage
Other, Grind And Polish Machine

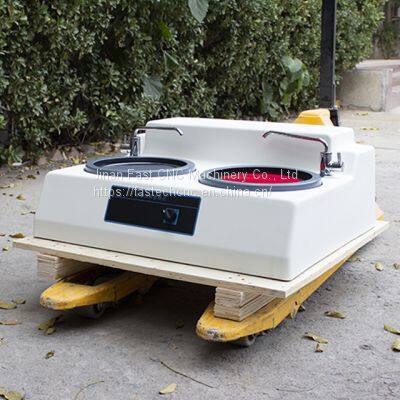

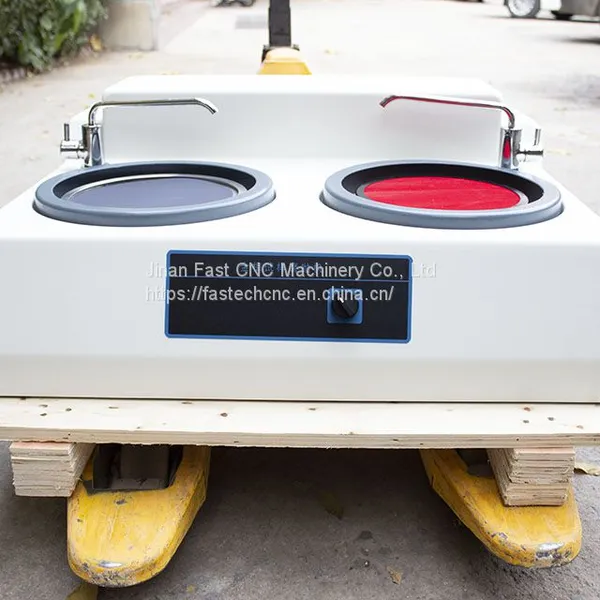

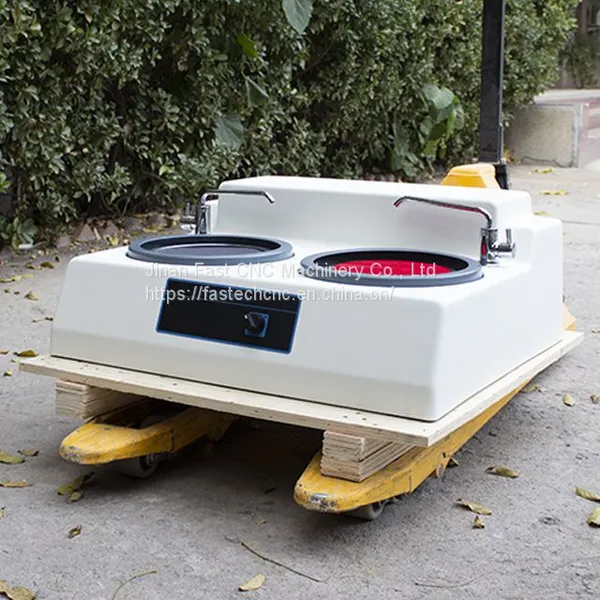

MP-2 Metallographic Specimen Grinder And Polisher Machine With Double Discs
Application
Model MP-2 Metallographic specimen grinding & polishing machine is equipped with double discs, and it can finish grinding or polishing with two different speeds. The rotating speed of left disc (pre-grinding disc) is 450 rpm and right disc (polishing disc) is 600 rpm. With double disc and different grinding and polishing materials, it can realize the process of rough grinding, fine grinding, rough polishing and finishing polishing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Main Specifications
Model |
MP-2 |
| Grinding Disc Diameter | 230mm |
| Polishing Disc Diameter | 200mm |
| Grinding Disc Rotating Speed | 450 rpm(left) 600rpm(right) can be ordered |
| Motor | YC7124 370 W |
| Dimension | 700×600×278mm |
| Weight | 50kg |
| Operating voltage |
AC 220V,50Hz
|
