Highly-effective Universal Metallographic Specimen Grinding Machine Price M-2
US$ 600 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FAST
Place of Origin:
China
Model Number:
M-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
21 days
Related Products
-
Metallographic Specimen Sample Mounting Press Inlay Machine ZXQ-1US$ 1000 - 2000MOQ: 1 Set -
Metallographic Specimen Sample Mounting Press Inlay Machine XQ-2BUS$ 200 - 500MOQ: 1 Set
-
Q-100B Dia.100mm Sample Cutting Machine Metallographic Cutting Machine With Cooling SystemUS$ 2300 - 27--MOQ: 1 Set
-
Q-2 Metallographic Sample Manual Cutting MachineUS$ 200 - 500MOQ: 1 Set
-
P-2G Double Disc Metallographic Polishing MachineUS$ 300 - 600MOQ: 1 Set
Brand Name
FAST
Place of Origin
China
Model Number
M-2
Power
Electronic
Usage
Other, Grinding Machine

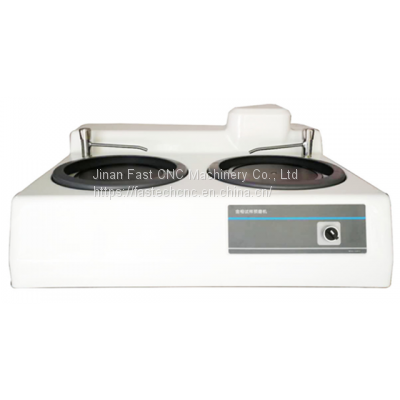

M-2 Universal Metallographic Specimen Grinding Machine
APPLICATION
The machine is a wet polishing machine, it uses different size of metallographic sandpaper to polish the samples of various metals and alloys. In addition to mechanical polishing instead of manual operation to improve the efficiency of sample preparation, the pregrinding machine can completely remove the plastic deformation and surface heating trace produced in the cutting process of the sample for further microstructure determination after polishing. When the pregrinding machine works, the cooling water is continuously injected into the rotating disc through the rotary water nozzle, and the sandpaper can be pressed on the disc under the action of atmospheric pressure, so that the sandpaper does not need to be bonded or clamped. The machine is equipped with a beautiful and practical FRP shell, completely using stainless steel standard parts, the body will never rust, thus greatly enhancing the performance of the product, making this machine an ideal equipment for sample pre-grinding.
TECHNICAL DATA
| Model | M-2 |
| Grinding disc diameter | 230mm |
| Grinding disc speed | 450r/min |
| Motor | 370 W 220V 50Hz |
| Dimension | 690*715*310mm |
| Weight | 45kg |
