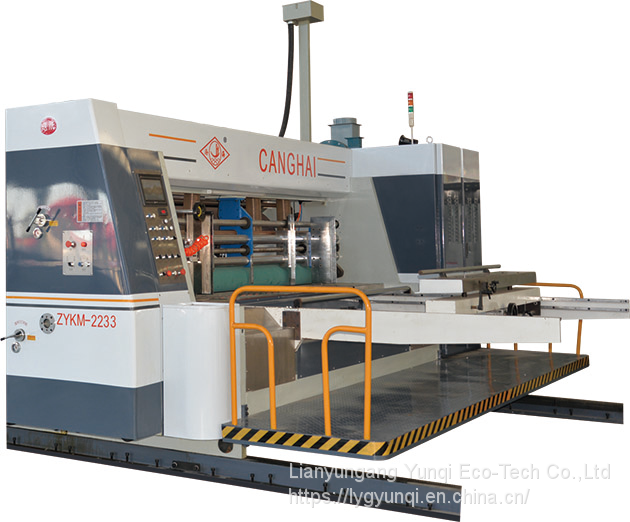

Help CenterLarge Carton Board Chain Feeding Printing Slotting Die-cutting Machine
Related Products
-
Screen Printer HL-250US$ 3000 - 148000MOQ: 1 Set -
Automatic Computerized Carton Printing Slotting Die-cutting MachineUS$ 60000 - 120000MOQ: 1 Set
-
Paper Paste Gluing MachineUS$ 1000 - 3000MOQ: 1 Set
-
70m/min. High Speed Kraft Paper Cutting MachineryUS$ 8000 - 10000MOQ: 1 Set
-
Single Piece Carton Folding Gluing MachineUS$ 2800 - 150000MOQ: 1 Set
youtube video link:
https://youtu.be/_GaguGG3kWE
3.Specification
Printing units |
Chosen according to users' needs |
Printing Paperboard |
A.B.C.E 3/5/7 layer corrugated board |
Machine Speed |
120 sheets/min |
Economy speed |
80-100 sheets/min |
Max. Paper Size |
2570×3600 mm |
Max. Printing Size |
2500×3600mm |
Printing precision |
±1mm |
|
Printing-plate adjustment left and right position |
10mm |
Standard Printing Plate Thickness |
4-9mm |
Cardboard thickness |
2-12mm |
Max. slit corner Width |
50mm |
Max. stack height |
1600mm |
|
Printing Roller (Plus Printing Plate Thickness) |
720mm |
Total power |
45kw |
Floor size |
19000*6000*4000mm |
1. The total machine adopt PLC controlling system
Whole machine frame and important part are being aging treatment, tempering
1. eliminate the stress of metallic; all of them come from high precision processing center, CNC grinding machining process. All the rollers are high quality steel, high precision Computer dynamic balancing correction of hard chromium plating, surface grinding.
3. The transmission gear adopt 40 CrMnTi high quality alloy steel which is grinded and after the heat treatment ，it can up to six precision, Its surface with rockwell hardness HRC58-62, make color more accuracy.
4. Units separate is electrical controlled and pneumatic locking, pneumatic total lock, to ensure the stability of the unit, and continue ring for caution when machine be separated, to ensure the safety of operating person.
5. Every unit of machine with emergency stop switch, so the machine can be stopped between the unit, it can ensure the workers safe (remark: every unit moving is drag by feeder unit)
6. All the machine electric parts application keyless connecting ring, eliminating the gap generated by the traditional connection, keep the long-term precision of printing chromatic.
7. The machine lubrication system uses a spray automatic lubrication, and with the device impermeable to oil spills institutions.
A feeding unit

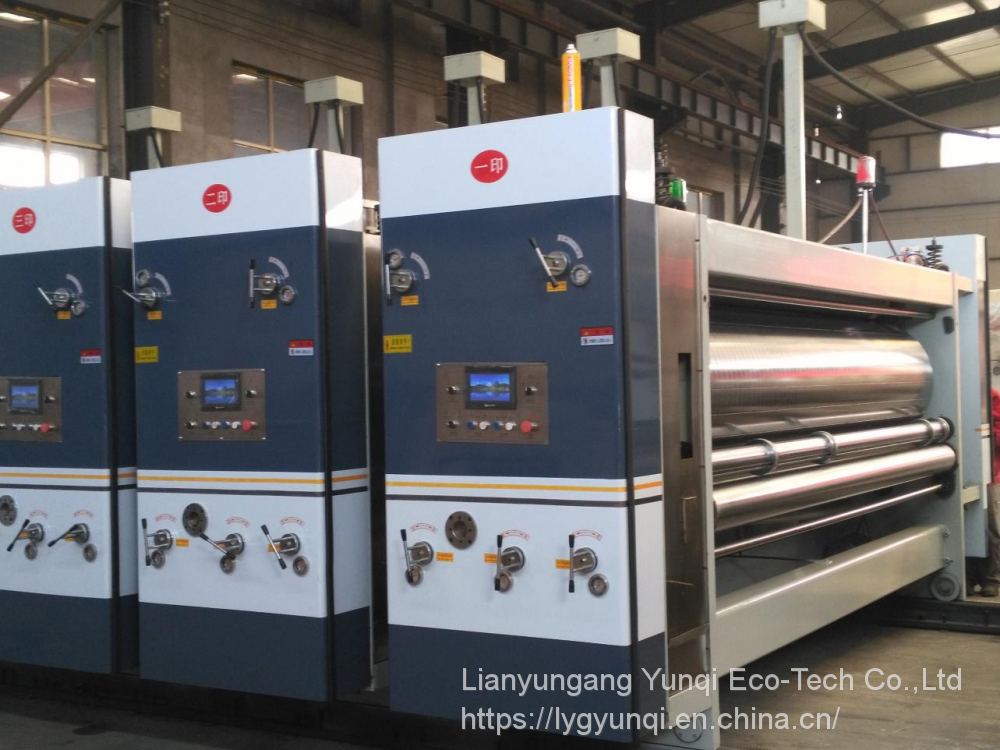

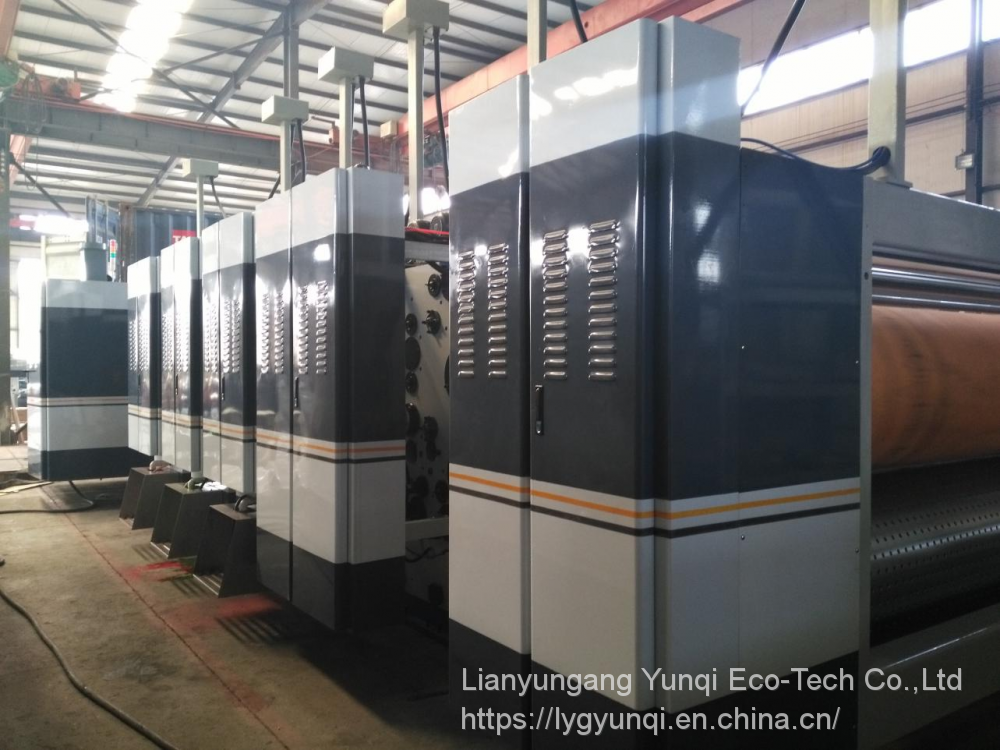

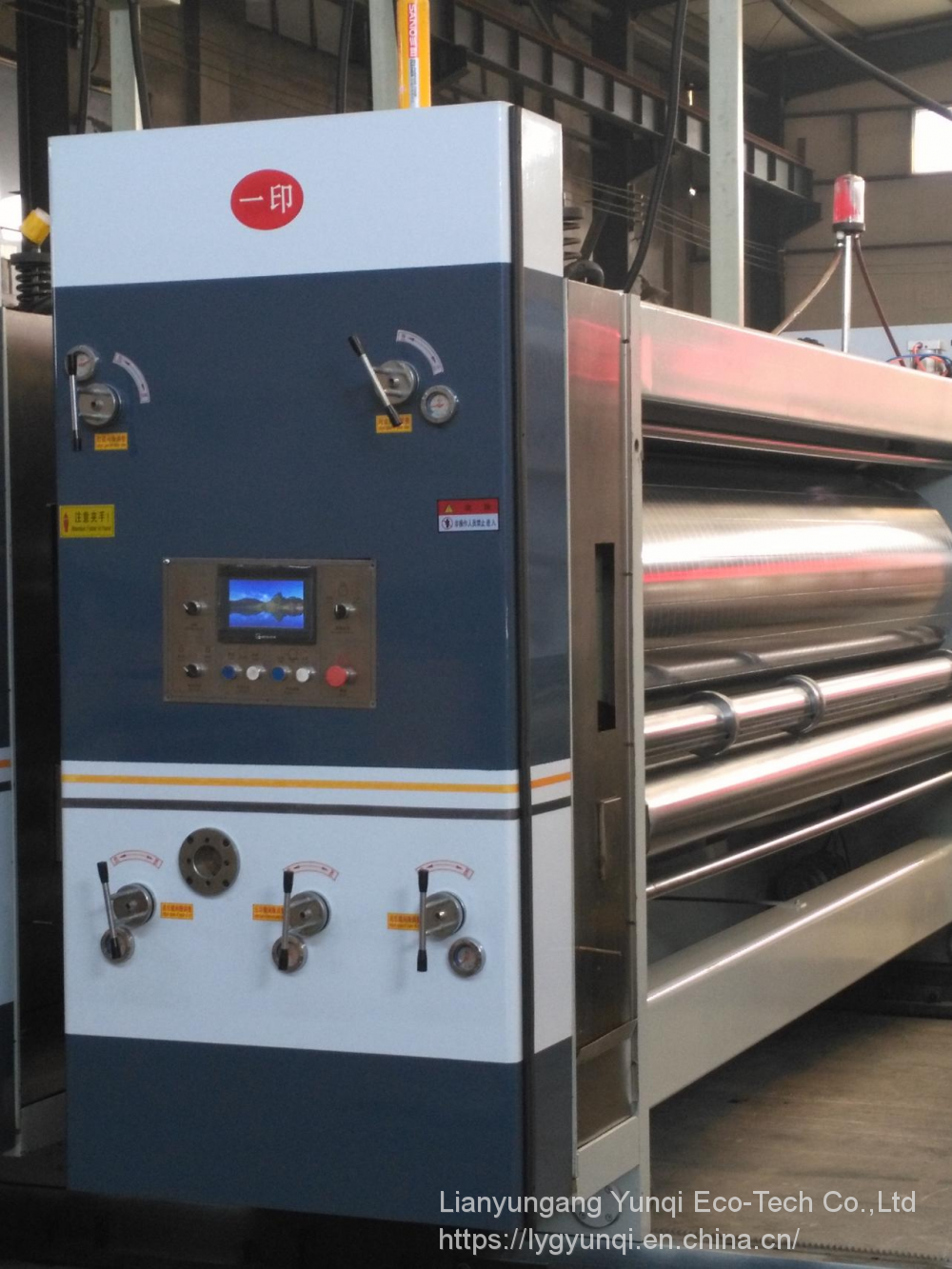

B Printing unit

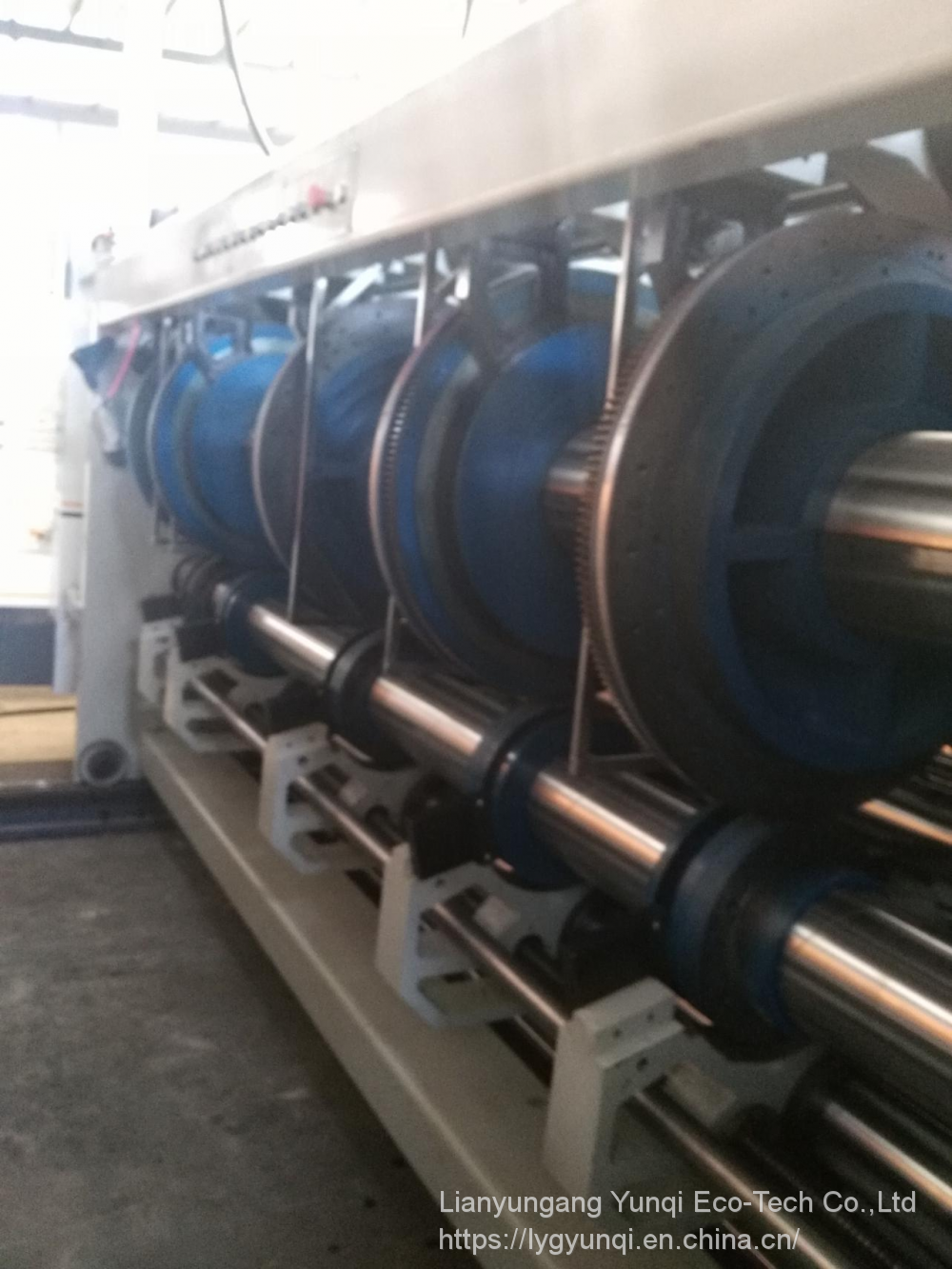

1, the printing roller
1) The diameter of printing roller is ф708 mm (including plate thickness will be ф720mm)
2) Printing roller is made in high quality thick-walled seamless steel roll, surface conditioning, grinding, hard chromium plating. balance correction, smooth operation.
2, the embossing roller
1) embossing roller diameter ф190mm.
3, ink roller
1) roller diameter ф240 mm (line number 200 Line -280 lines).
2) thick-walled seamless steel surface after grinding the surface of ground, pressed textured, hard chrome plating.
4 ink distributing rollers
1) diameter ф215 mm.
2) High quality seamless steel pipe wrapped durable, corrosion resistant, wear-resistant rubber.
5, Phase adjustment
1) The planetary gear structure.
2) printing phase digitally controlled by computer and electric adjustment of 360 ° (run, stop can be adjusted.) the accuracy is 0.15mm.
6, ink loop structure
1) pneumatic diaphragm pump for ink stability, operation and maintenance simple.
2) The ink filter, filter impurities.
7, the printing phase fixtures
1) Electromagnetic clutch brake type brake mechanism, when the unit adjusting the phase separation, the brake mechanism limits gears to keep the original tooth position of fixed points.
8,direction of rollers adjusted by electrical ,ranged ± 10 mm.

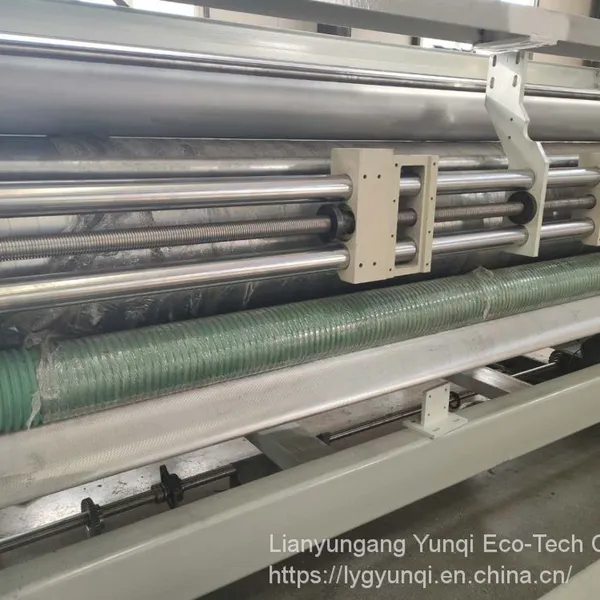

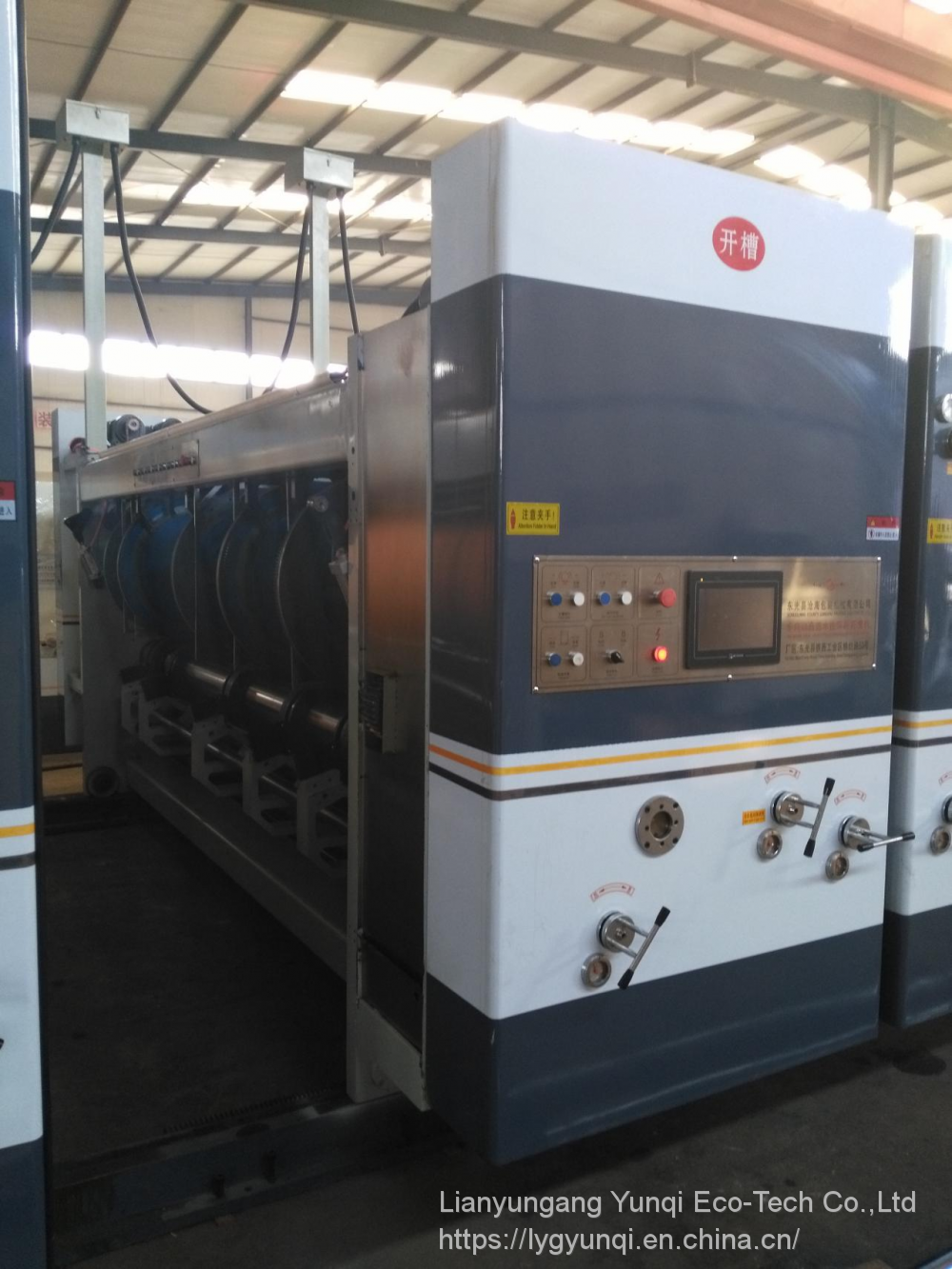

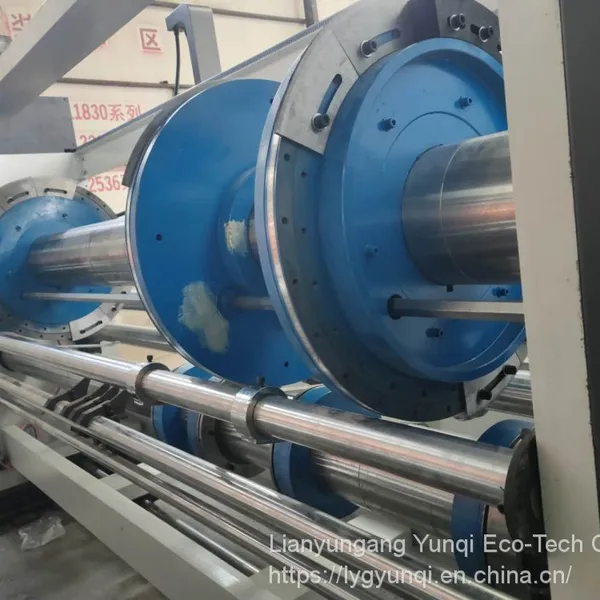

C slotting unit
1)Single shaft double knives slotter,7.0 inch touchscreen on the slotter, the box length and box width are motorized,box height is controlled by PLC and can be stored in the computer, saving the changing time in future.
2)The upper knife,lower knife, pre-creaser and creaser are synchronously moved. The precision liner slideway can ensure the flexible and stable of moving.

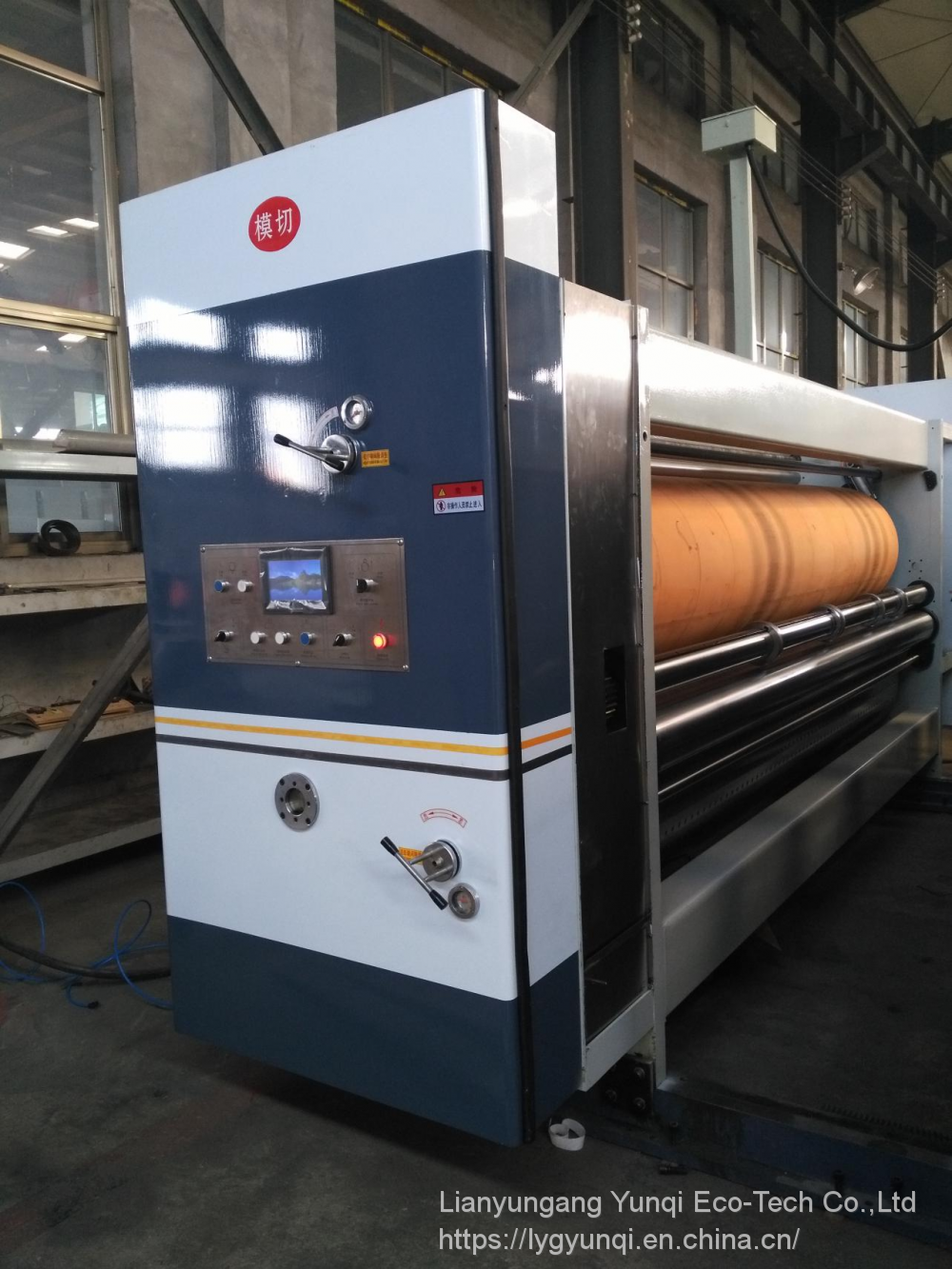

D Die cutting unit

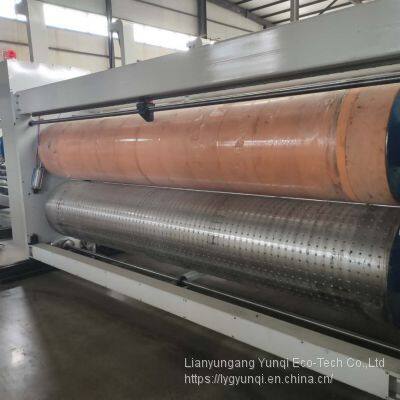

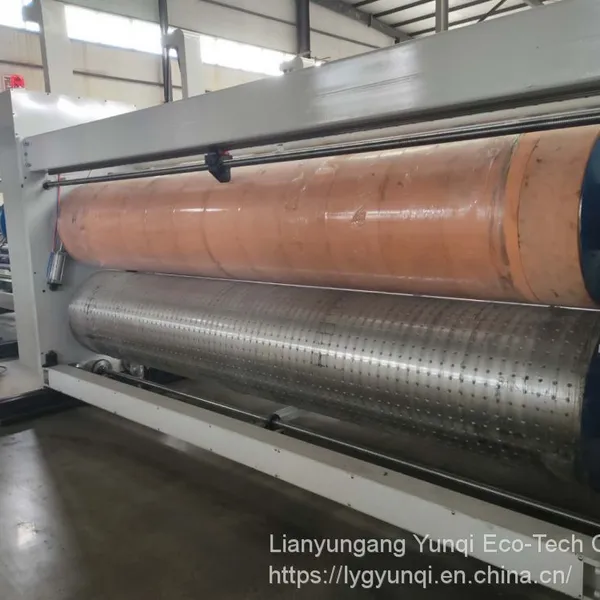

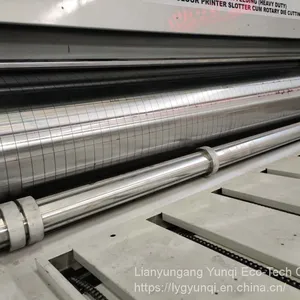

1, the die cutter roller (the roller)
1) die cutter roller diameter ф672.4mm (excluding die cutter)
2) die cutter screw hole spacing 50 mm ×52.78 mm.
3) for die cutter height 25.4mm.

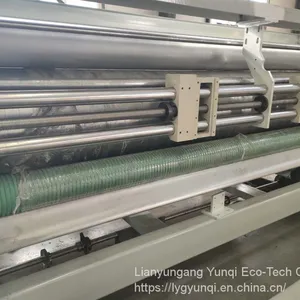

2, pad roller (upper roller)
1) diameter φ643.95mm
2) The pad thickness 11.4 mm (diameter of φ666.75 mm)
3) The mechanical lateral 40 mm, swimming device
3, Phase adjustment
1) The planetary gear-type structure, with the printing department.
2) cutting to bits by PLC, touch screen control and electric adjustment of digital 360 ° (run, stop can be adjusted.)

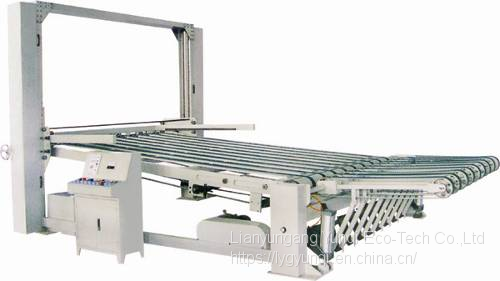

E stacking machine
1) The paper can then manually adjust automatically.
2) splicing speed and feed speed is synchronization, then the paper speed can be adjusted independently
3) The stack height of 1600 mm
