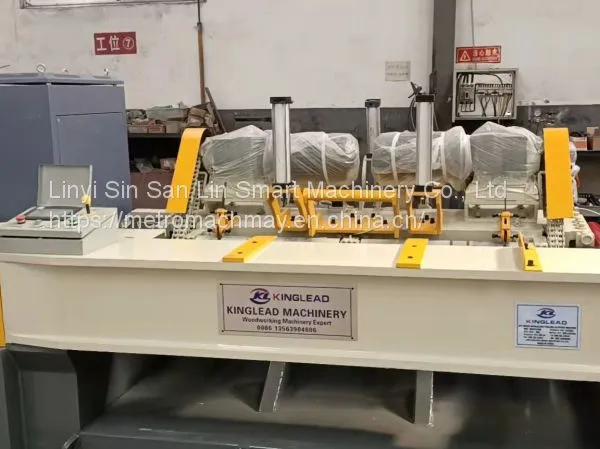

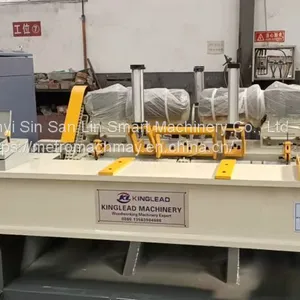

Plywood Economical Veneer Rotary Peeling Clipping Lathe Machine With Servo Motor
US$ 10000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO MACH
Place of Origin:
China
Model Number:
BQS1814
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Plywood Economical Hot Sale Veneer Rotary Peeling Clipping Lathe Machine With Servo MotorUS$ 10000 - 20000MOQ: 1 Set -
4Ft Plywood Core Veneer High Speed Spindleless Peeling MachineUS$ 10000 - 20000MOQ: 1 Set
-
4Ft Plywood Core Veneer High Speed Spindleless Peeling Machine for Hard WoodUS$ 10000 - 20000MOQ: 1 Set
-
4Ft Plywood Core Veneer High Speed Spindleless Peeling Machine for Hard WoodUS$ 10000 - 20000MOQ: 1 Set
-
Automatic Plywood Production Making Machine LineNegotiableMOQ: 1 Set
Brand Name
METRO MACH
Place of Origin
China
Model Number
BQS1814
Certification
CE, ISO ,FDA, SGS, CCC
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
7200kgs
Dimension(L*W*H)
5100mm * 1900mm * 1550mm
Condition
New
Voltage
380/415V
Power(W)
39.7kw
Type
Other, Veneer peeling machine
Automatic Hard Wood 4FT Plywood Veneer Peeling Machine with Servo Motor
1. Fearures
Spindleless veneer peeling machine is used for make veneer .
And it is suitable for the eucalyptus, pine, cotton wood and another log.
The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
veneer peeling machine is a very technical equipment in plywood line equipment.
2. Technical Parameters
| Working length | 970mm - 1270mm |
| Working diameter range | 80~500mm |
| Max. working speed | 55-60m/min |
| Veneer thickness | 0.6~7mm |
| Double rollers motor power | 11kw |
| Single roller motor power | 5.5kw x 2sets |
| Screw Feeding motor power | 7.5kw |
| Rotary clipper motor power | 2.2kw |
| Rubber belt conveyor motor | 2.2kw |
| Machine size | 4700x1900x1500mm |
| Machine weight | 5000kgs |
| Reducer Model | R87 Hard helical |
| Remark | Including 6 meter veneer conveyor |

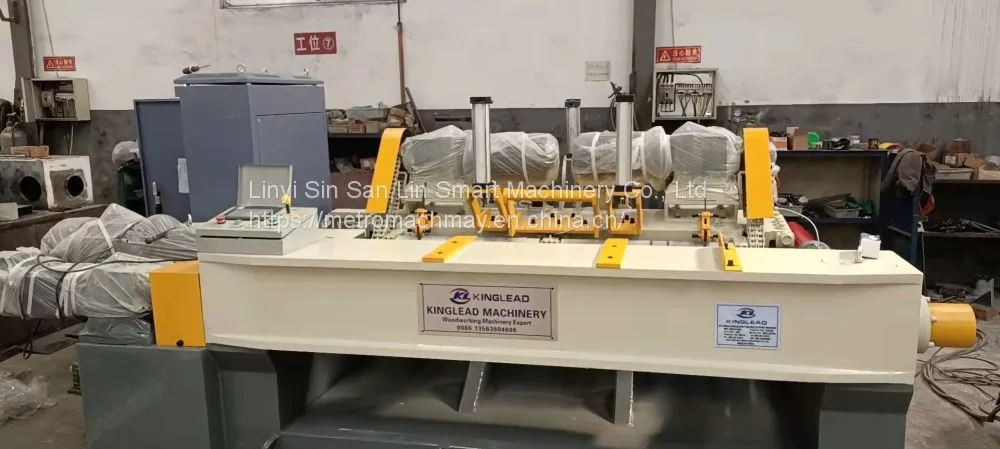

Product Show
COMPLETE PLYWOOD PRODUCTION MACHINE LINE
