Home > Products > plywood peeling machine > 4FT Cast Body Plywood Core Veneer Rotary Spindleless Peeling-clipper Machine

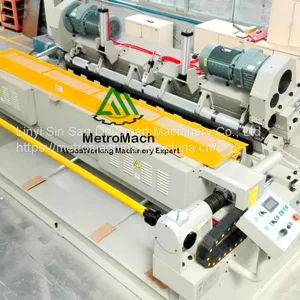

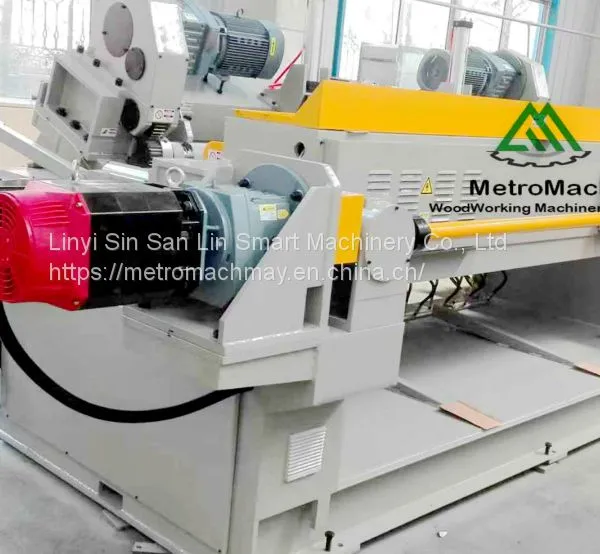

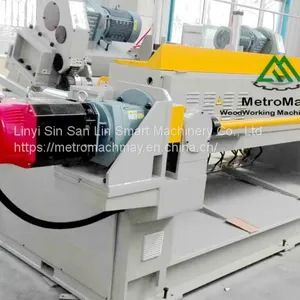

4FT Cast Body Plywood Core Veneer Rotary Spindleless Peeling-clipper Machine
- 10 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A
- 30 days
You May Like
-
4FT Cast Body Plywood Core Veneer Rotary Spindleless Peeling-clipper Machine
-
4FT Cast Body Plywood Core Veneer Rotary Spindleless Peeling-clipper Machine
-
4FT Plywood Woodworking Wood Log Rounding Debarker Machine
-
8FT Plywood Woodworking Wood Log Rounding Debarker Machine
-
Woodworking Plywood Multi-layer Hydraulic Hot Press Machine
-
Woodworking Plywood Multi-layer Hydraulic Hot Press Machine with Loader and Unloader Line
Product Details
| Brand Name | METRO MACH/ LEADTOP/ KINGLEAD | Place of Origin | China | |
| Model Number | BXQ1814/14 | Certification | ISO, CE, SGS, CCC | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 10T | Dimension(L*W*H) | 4460*1790*1980mm | |
| Condition | New | Voltage | 380v, 50Hz | |
| Type | Other, veneer peeling machine |
Product Description
4FT High Speed Plywood Veneer Peeling Machine
1.Main features:
1.2018 all new generation research & design SPECIAL FOR HARD WOOD.
2.Fastest veneer peeling speed can reach to 100M/MIN.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Clipper inbuilt design, peeling and clipping at same time.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.R87 harden helical gear speed reducer and Japan NSK bearings.
11.Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.
2. Technical Parameters
DESCRIPTION | UNIT | PARAMETERS |
Max.Length of log | mm | 1350mm |
Max log diameter | mm | Max 360mm Min28mm |
Rotary cutting thickness range | mm | 0.8 mm--3.0mm |
Peeling speed | m/min | 50M/Min |
The main auxiliary motor power | KW | Single roller motor 5.5KW×2 Cuting motor 2.5KW Conveyor 1.5KW Double roller motor 5.5KW×2 Feed motor 7.5KW |

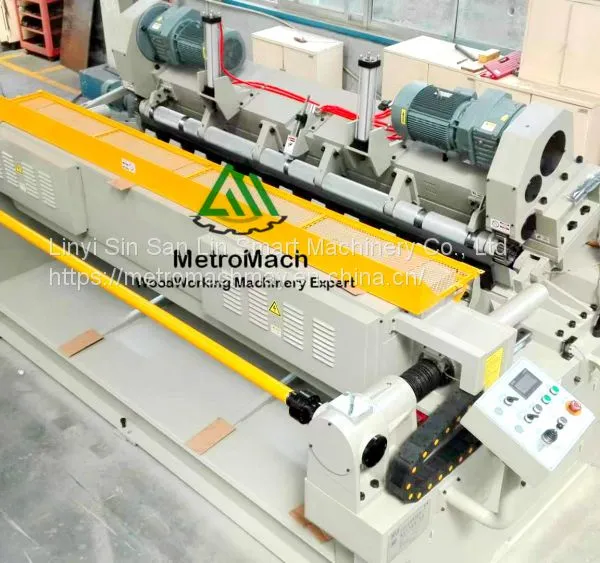

3.More Pictures:
Welcome to Contact:
Whatsapp:+8615054649650
Wechat: +8615254920677
Email: maylv@metromach.com
