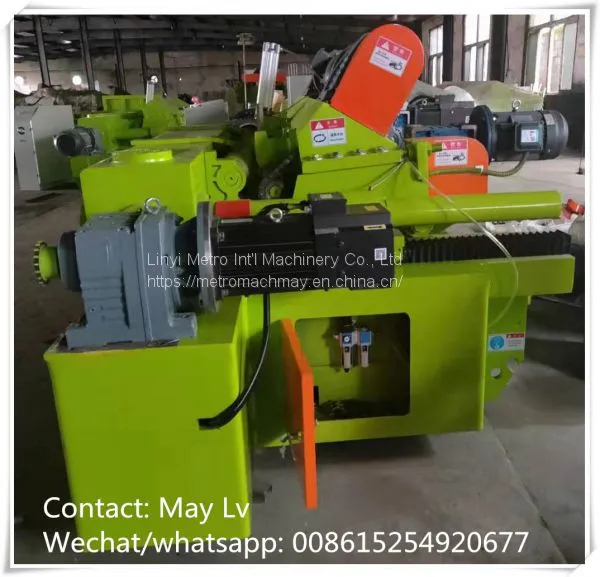

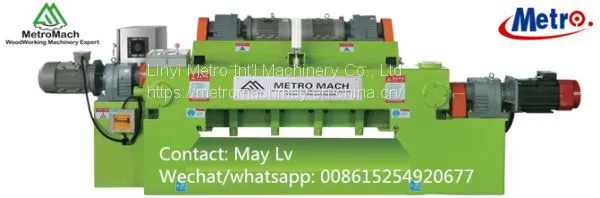

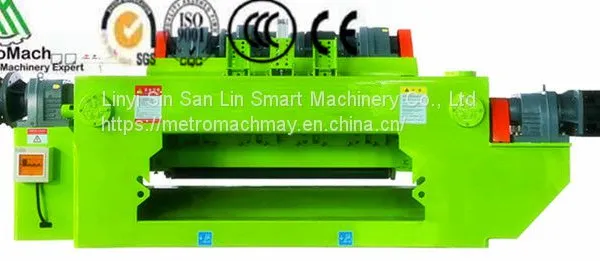

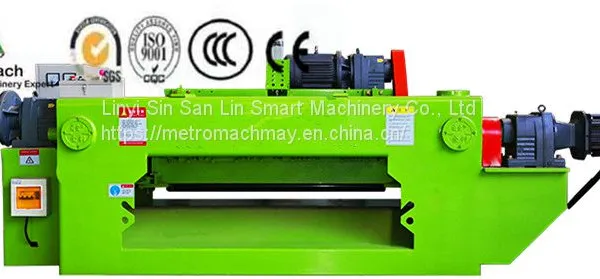

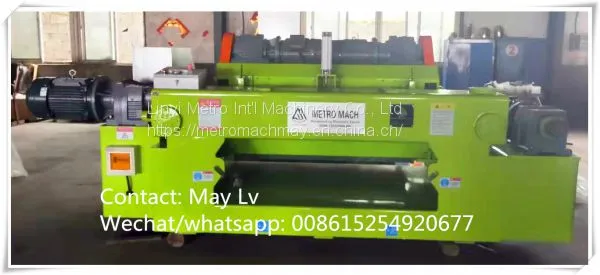

Woodworking Hard Wood Plywood Veneer CNC Rotary Peeling Clipping Lathe Machine
US$ 10000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO MACH
Place of Origin:
China
Model Number:
RBD1814
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Woodworking Hard Wood Plywood Veneer CNC Rotary Peeling Clipping Lathe MachineUS$ 10000 - 20000MOQ: 1 Set -
Woodworking Hard Wood Plywood Veneer CNC Rotary Peeling Clipping Lathe MachineUS$ 10000 - 20000MOQ: 1 Set
-
Plywood Hard Wood High Speed Veneer Rotary Peeling Clipping Lathe Machine With Servo MotorUS$ 10000 - 20000MOQ: 1 Set
-
Plywood Economical Veneer Rotary Peeling Clipping Lathe Machine With Servo MotorUS$ 10000 - 20000MOQ: 1 Set
-
Plywood Economical Veneer Rotary Peeling Clipping Lathe Machine With Servo MotorUS$ 10000 - 20000MOQ: 1 Set
Brand Name
METRO MACH
Place of Origin
China
Model Number
RBD1814
Certification
CE, ISO ,FDA, SGS, CCC
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
5500kgs
Dimension(L*W*H)
4300mm * 1700mm *1600mm
Condition
New
Voltage
380/415V
Power(W)
37.4kw
Type
Other, Veneer peeling machine
1. Machine Features
1.Ultra thin rotary cutting, thinnest 0.2mm
2.Use cylinder to hit wood core
3.Alloy lead screw and tin bronze nut
4.Taiwan HIWIN liner Motion Products & Technology
5.Easy knife function, convenient disassembly
6.The surface function is smooth on both sides
7.specialized in cotton wood, pine, birch wood and various hard and miscellaneous tree.
8.Most thick circumflex 4mm
9.Self sheared functiion and whole tail plate
2. Technical Parameters
| Length of the peeling wood | 970mm-1270mm-1300mm | |
| max log diameter | max500mm min 30mm | |
| roller power | double roller motor | 11kw |
| single roller motor | 5.5kw x 2 | |
| feed motor (servo motor) | 11kw | |
| cutting motor (servo motor) | 2.2kw | |
| rubber roller motor ( a-c motor) | 2.2kw | |
| peeling thickness range | 0.3mm--4.0mm | |
| peeling output speed | constant speed 60m/min (adjust speed 60m-120m ) | |
| reducer modle | R87 helical gear reducer | |
| size of machine | 4300mm x 1700mm x1600mm | |
| weight | 5500kg | |
| production eficiency (8 Hour) |
1.7mm Peeling Veneer 50 m³ 2.2mm Peeling Veneer 60m³ 3.0mm Peeling Veneer 80m³ 3.6 mm Peeling Veneer 90 m³ |
|
