SU-030 30mm2 Electric Automatic Cable and Wire Stripping Machine Cutter and Stripper Machine

SU-030 30mm2 Electric Automatic Cable and Wire Stripping Machine Cutter and Stripper Machine thumbnail-1
SU-030 30mm2 Electric Automatic Cable and Wire Stripping Machine Cutter and Stripper Machine thumbnail-2
SU-030 30mm2 Electric Automatic Cable and Wire Stripping Machine Cutter and Stripper Machine photo-1

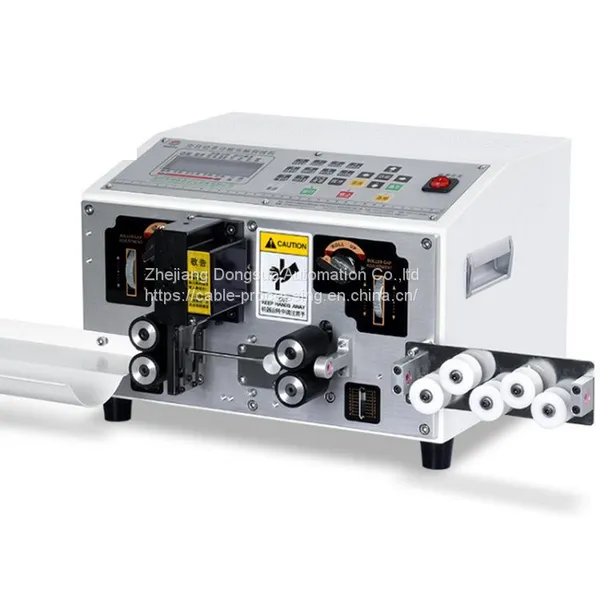

SU-030 30mm2 Electric Automatic Cable and Wire Stripping Machine Cutter and Stripper Machine photo-2
US$ 100 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGSUO
Place of Origin:
China
Model Number:
SU-030
Contact Supplier Request Quote Chat Now
Zhejiang Dongsuo Automation Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGSUO
Place of Origin China
Model Number SU-030
verview
Quick Details

  • Place of Origin:

  • China

  • Brand Name:

  • WIREPRO AUTOMATION

  • Model Number:

  • SU-030

  • Usage:

  • Stripping

  • Available Wire Size:

  • AWG12 - AWG3

  • Conductor Cross-Section:

  • 4-30mm2

  • Cutting Length:

  • 1-99999mm

  • Cutting Length Tolerances:

  • ≤(0.002*L) mm

  • Stripping Length:

  • Head 1-200mm; Tail 1-120mm

  • Conduit Diameter *:

  • 16mm

  • Production Rate:

  • 2300pcs/h (based on wire size)

  • Display Screen:

  • 7 inch touch screen

  • Power Supply:

  • 220V/110V

  • Power:

  • 1200W
Supply Ability

  • Supply Ability

  • 100 Set/Sets per Month

Packaging & Delivery

  • Port

  • Shanghai

  • Lead Time:

  • Quantity(Sets) 1 - 5 >5
    Est. Time(days) 5 To be negotiated

Big Gauge Cable Cutting and Stripping Machine



 Cut to length
Full stripping
Discrete wire stripping
Multi-step stripping
Round sheathed cable jacket stripping

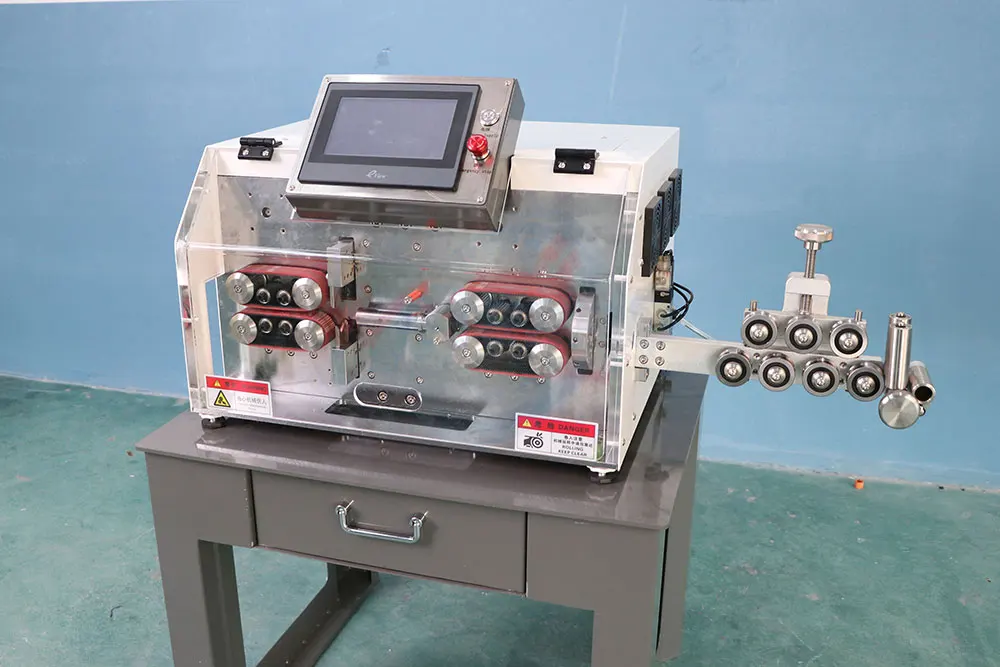

SU-030 30mm2 electric automatic cable and wire stripping machine cutter and stripper machine

SU-030 features:

The series machines are designed for full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, high power supply shielding cable, charging pile harness. It's good for Silicone wire, high-temperature wire and signal wire, etc.



1. Processing cable below 30 sqmm, improving working efficiency
2. Long stripping length than normal machines
3. Belt feeding cable, no embossing, no scratches
4. Automatically identify the machining center, increase the production rate
5. Uses specific axial positioning and advanced tool holders, improving accuracy and production rate.
6.Digitally Display Screened cutting wire diameter, high-quality pneumatic components, more energy-saving, and work stably.
7. Optional auxiliary equipment: automatic wire feeder, wire stacker or coiler etc.



Model SU-030 SU-070 SU-150 SU300
Available Wire Size  AWG12 - AWG3 AWG7 - AWG1/0 AWG7 - AWG4/0 AWG2 - 300mm²
Conductor Cross-Section 4-30mm² 10-70mm² 10-150mm² 30-300mm²
Cutting Length 1-99999mm 1-99999mm 1-99999.99mm 10-99999mm
Cutting Length Tolerances ≤(0.002*L) mm ≤(0.002*L) mm  ≤(0.002*L) mm  ≤(0.002*L) mm
Stripping Length  *

Head 1-200mm;

Tail 1-120mm

Head 1-800mm;

Tail 1-260mm

Head 1-800mm;

Tail 1-400mm

Head 1-1000mm;

Tail 1-300mm
Conduit Diameter * Φ16mm Φ25mm Φ33mm Φ15-50mm
Production Rate 1500-2300pcs/h  1000-1800pcs/h  1000-1800pcs/h 500-1000pcs/h
Display Screen 7 inch touch screen 7 inch touch screen 7 inch touch screen 10 inch touch screen
Wire Feed Method Belt feeding Belt feeding Belt feeding Belt feeding
Drive Method 16 wheels drive  32 wheels drive  32 wheels drive  32 wheels drive
Power Supply 220V/110V 220V/110V 220V/110V 220V/110V
Power  1200W 3500W 6900W 11700W
Weight 115kg 190kg 240kg 320kg
Dimensions 84.5*54*62.5cm 140*76*134cm 150*76*134cm 165*76*134cm
