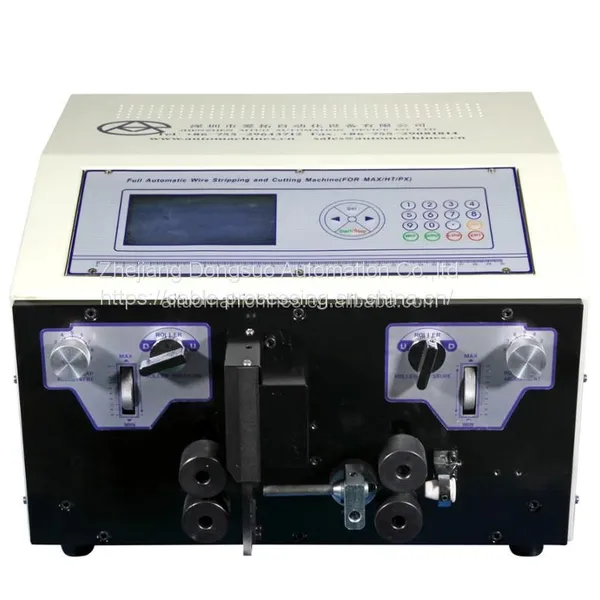

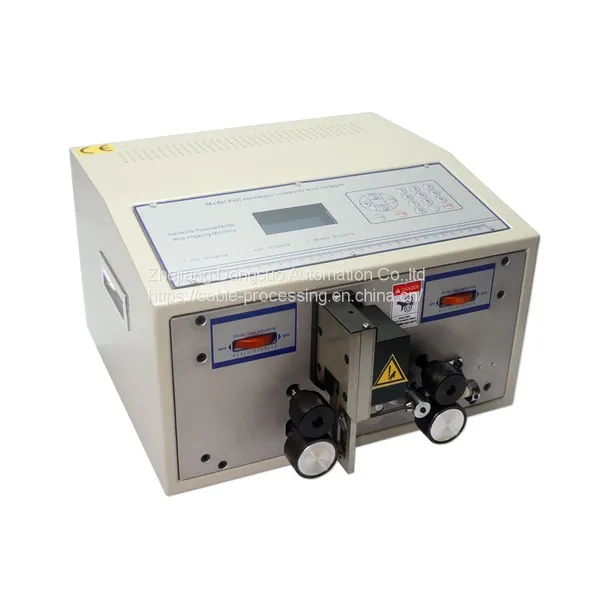

Automatic Electric 1.5mm2 Wire Cutting and Stripping Machine Manufacture

Automatic Electric 1.5mm2 Wire Cutting and Stripping Machine Manufacture thumbnail-1
Automatic Electric 1.5mm2 Wire Cutting and Stripping Machine Manufacture thumbnail-2
Automatic Electric 1.5mm2 Wire Cutting and Stripping Machine Manufacture photo-1
Automatic Electric 1.5mm2 Wire Cutting and Stripping Machine Manufacture photo-2
US$ 100 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGSUO
Place of Origin:
China
Model Number:
B-02A
Contact Supplier Request Quote Chat Now
Zhejiang Dongsuo Automation Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGSUO
Place of Origin China
Model Number B-02A
Overview
Quick Details

  • Place of Origin:

  • Zhejiang, China

  • Brand Name:

  • zhaozhuang

  • Model Number:

  • B-02A

  • Usage:

  • Stripping

  • Wire core area:

  • 0.1mm2-1.5mm2

  • Weight:

  • 21KG

  • Size:

  • L340mm*W387mm*H230mm

  • Cutting length:

  • 5mm-40mm-10m

  • Cutting tolerance:

  • +-(0.2+0.0002*L)mm (L= cutting length)

  • Stripping length:

  • Top: 0-25mm, end: 0-15mm

  • Stripping pattern:

  • Full-stripper, semi-stripper, short-stripper,mid-stripper 10 parts.

  • Wire material:

  • PVC wire, glass fibres etc.

  • Hourly output:

  • 8000-3000 pieces(about 6200 pieces/hour as 100mm)

  • Drive method:

  • The two wheels is driving at one time
Supply Ability

  • Supply Ability

  • 100 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • STANDARD WOODEN CASE

  • Port

  • Ningbo port/Shanghai port

  • Picture Example:

  • package-img

  • Lead Time:

  • Quantity(Sets) 1 - 1 >1
    Est. Time(days) 5 To be negotiated

Model

B-02AS

B-02BS

B-02CS

Power

Rated 150W

180W

200W

Applied core area

0.1mm2-1.5mm2

0.1mm2-2.5mm2

0.1mm2-4.0mm2

Weight

21KG

Dimension

L340mm×W387mm×H230mm

Cutting length

5mm-40mm-10m

Cutting tolerance

+— (0.2+0.0002×L)mm (L= cutting length)

Stripping length

Top: 0-25mm, end: 0-15mm

Stripping pattern

Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts.

Wire type

PVC teflon wire,  glass fibres

Hourly output

8000-3000 pieces(about 6200 pieces/hour as 100mm)

Speed adjustment

1-6 grade

Drive method

The two wheels is driving at one time

Note

The stretcher is selective

Type

B-02AS

Display mode

LCD

Power

Rated 150W

Applied core area

0.1mm2-1.5mm2

B-02BS

B-02CS

Cutting length

5mm-40mm-10m

Stripping length

Top: 0-25mm, end: 0-15mm

0.1mm2-2.5mm2

0.1mm2-4.0mm2

Stripping pattern

Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts.

Drive method

The two wheels is driving at one time

Note

The stretcher is selective


Product Tags: Automatic wire cutting machine , Automatic wire stripping machine , Automatic terminal crimping machine
